Starter Motor for Hyundai i30 FD GD GDe 1.6 G4FC G4FD / PD 1.6 G4FJ 2.0 G4NC 10T

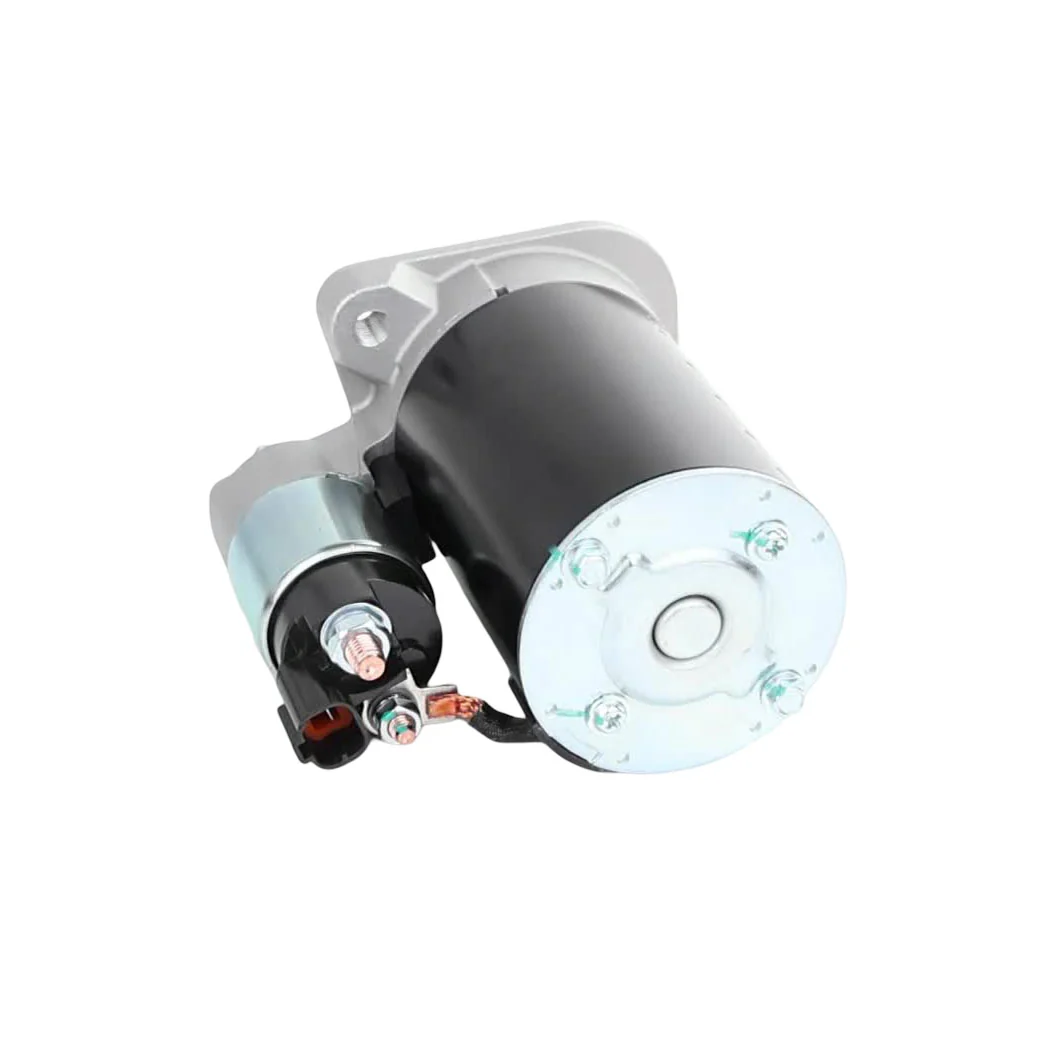

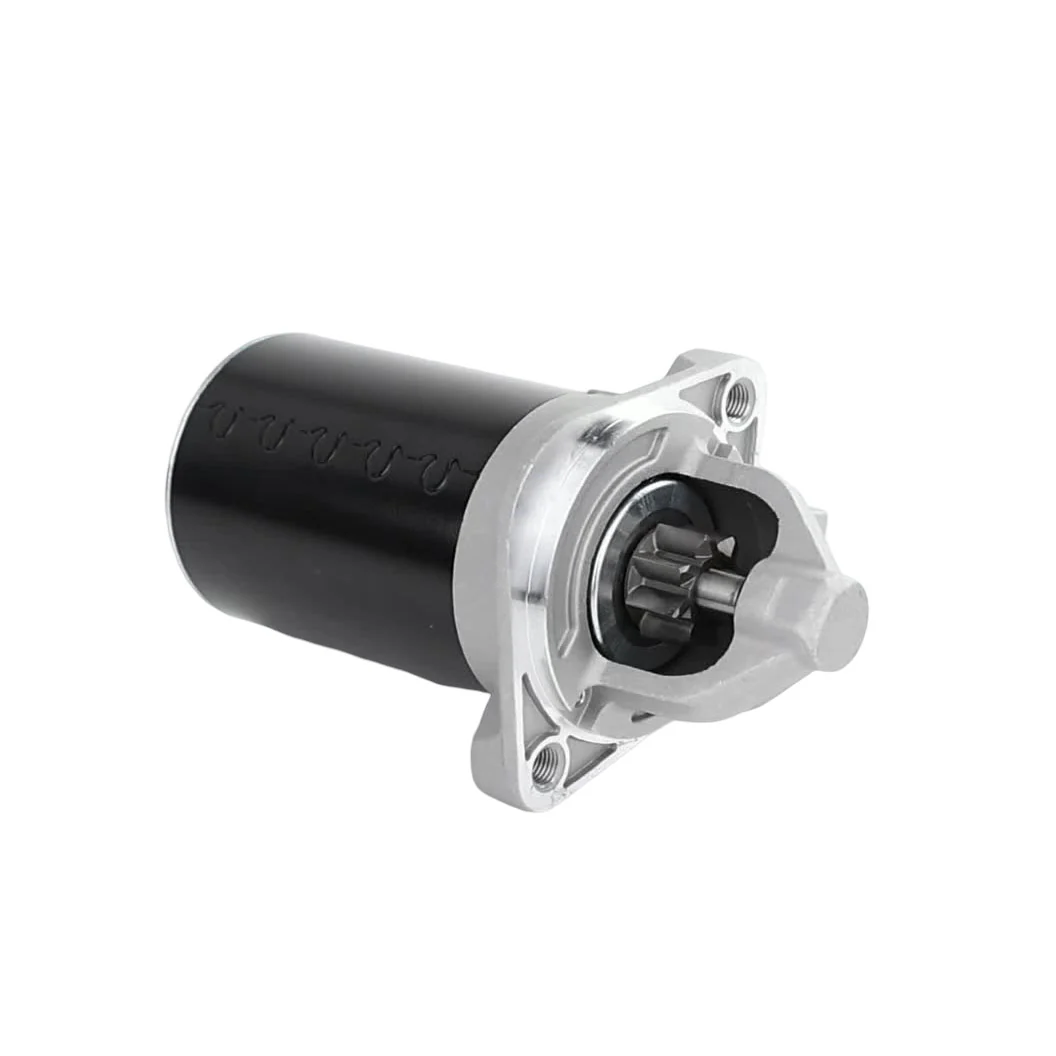

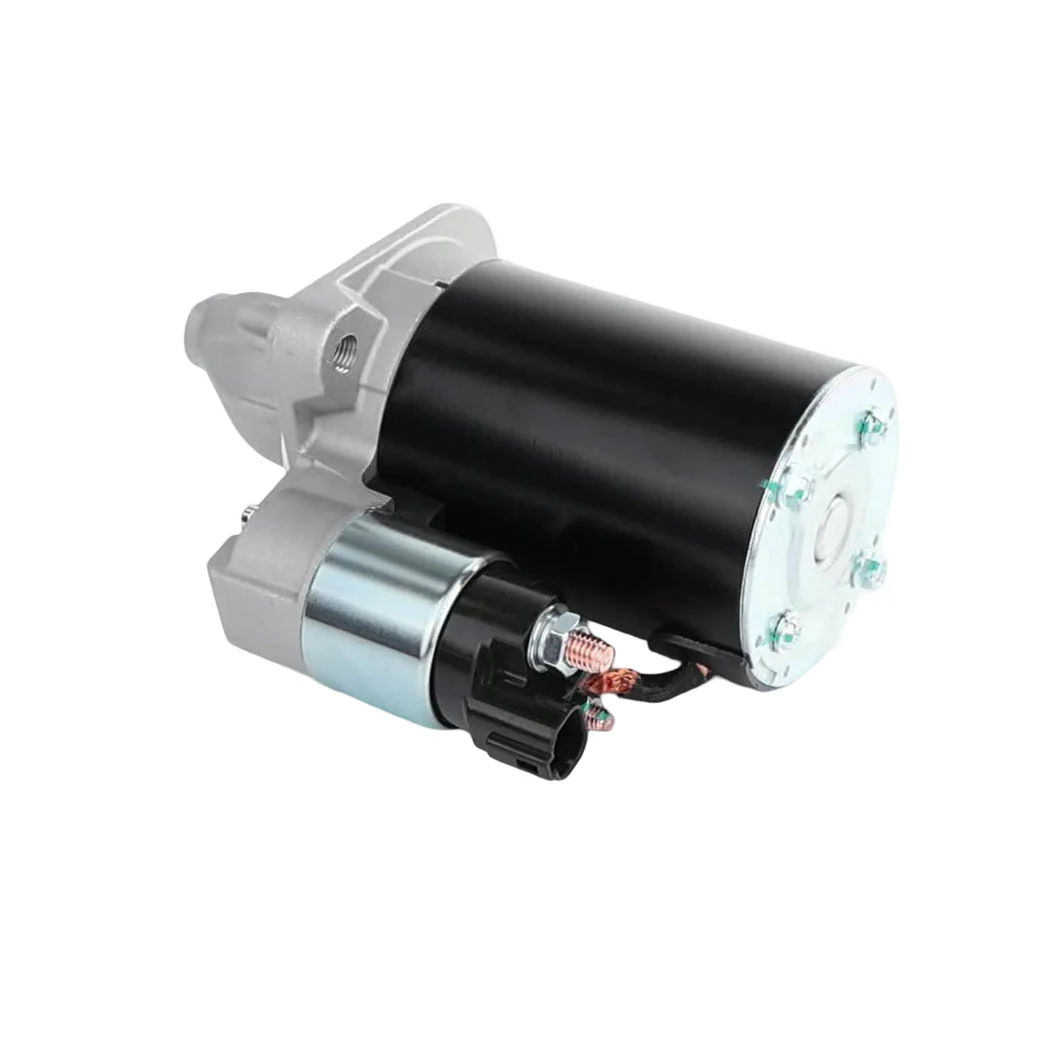

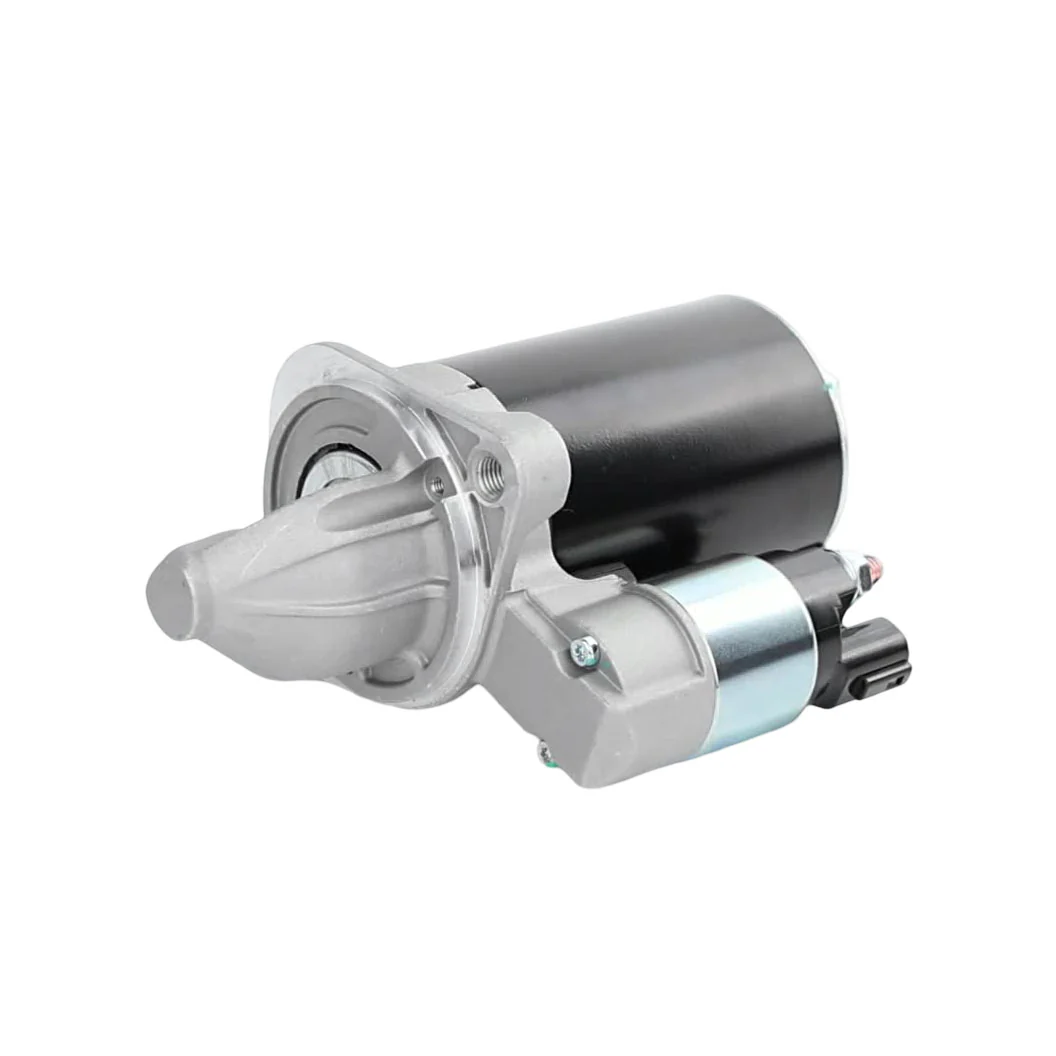

One Brand New Starter Motor

10-Tooth Pinion, For models that use 8-Tooth please see BSM1074, for 13-Tooth models see BSM1088 - Check OE Part Number

We are proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Hyundai i30 FD GD GDe 1.6L G4FC G4FD FWD (04/2008 - 03/2016) 10-Tooth
  Includes Sub-models SX, SE, Tourer 1.6 GDi, Tourer Active 1.6 GDi
• Hyundai i30 PD H551C 1.6L G4FJ Turbo I/C / PD H351E 2.0L G4NC FWD (04/2017 - 04/2024) 10-Tooth, PD 2.0L Manual 2020-Onwards Only - Check tooth count
  Includes Sub-models SR, SR Premium, N-Line, N-Line Premium, Active, Active Smartsense, Elite, Go, Premium, Trophy Limited Edition



Specifications and Sizing

• Voltage: 12V

• KW: 0.9
• Rotation Direction: Clockwise
• Pinion Teeth: 10T
• Pinion at Rest: 22mm
• Pinion Diameter: 28mm
• Overall Length: 180mm
• Mounting Bolt Centre-Centre(s): 100mm
• Mounting Hole Diameter: M10 x 1.2

• Flange Diameter: 77mm
• Nose Cone Length: 57mm

What's Included

• 1 x Starter Motor
