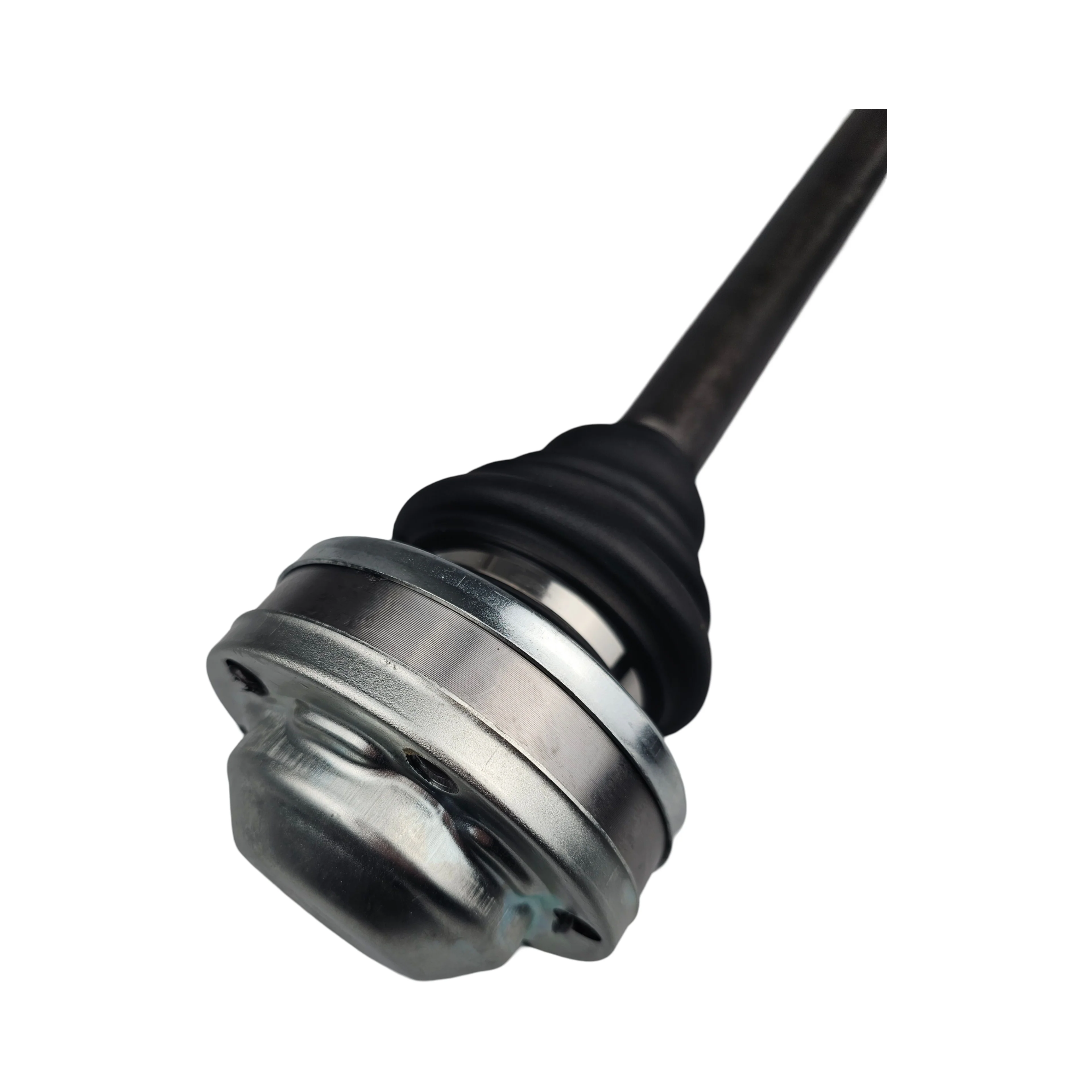

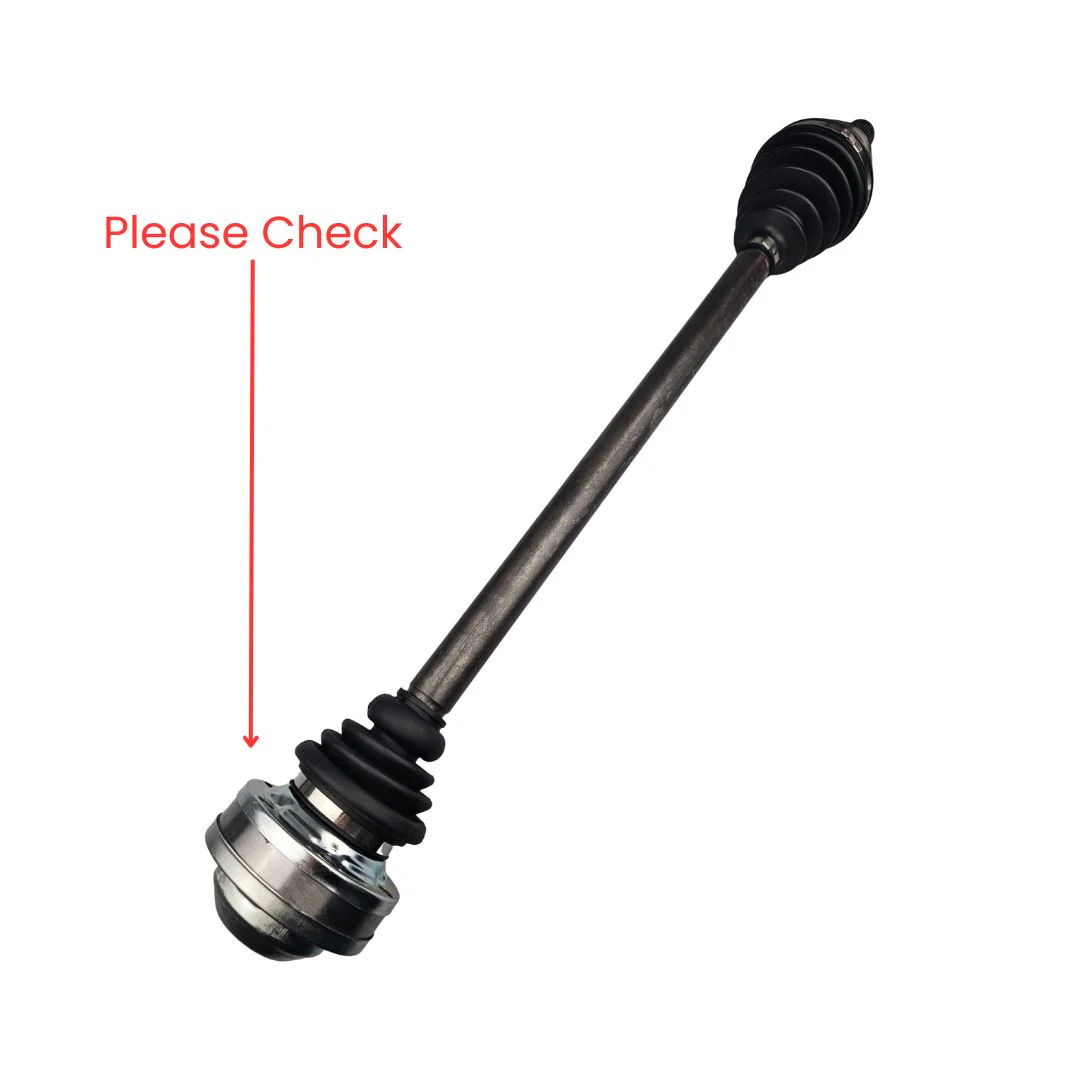

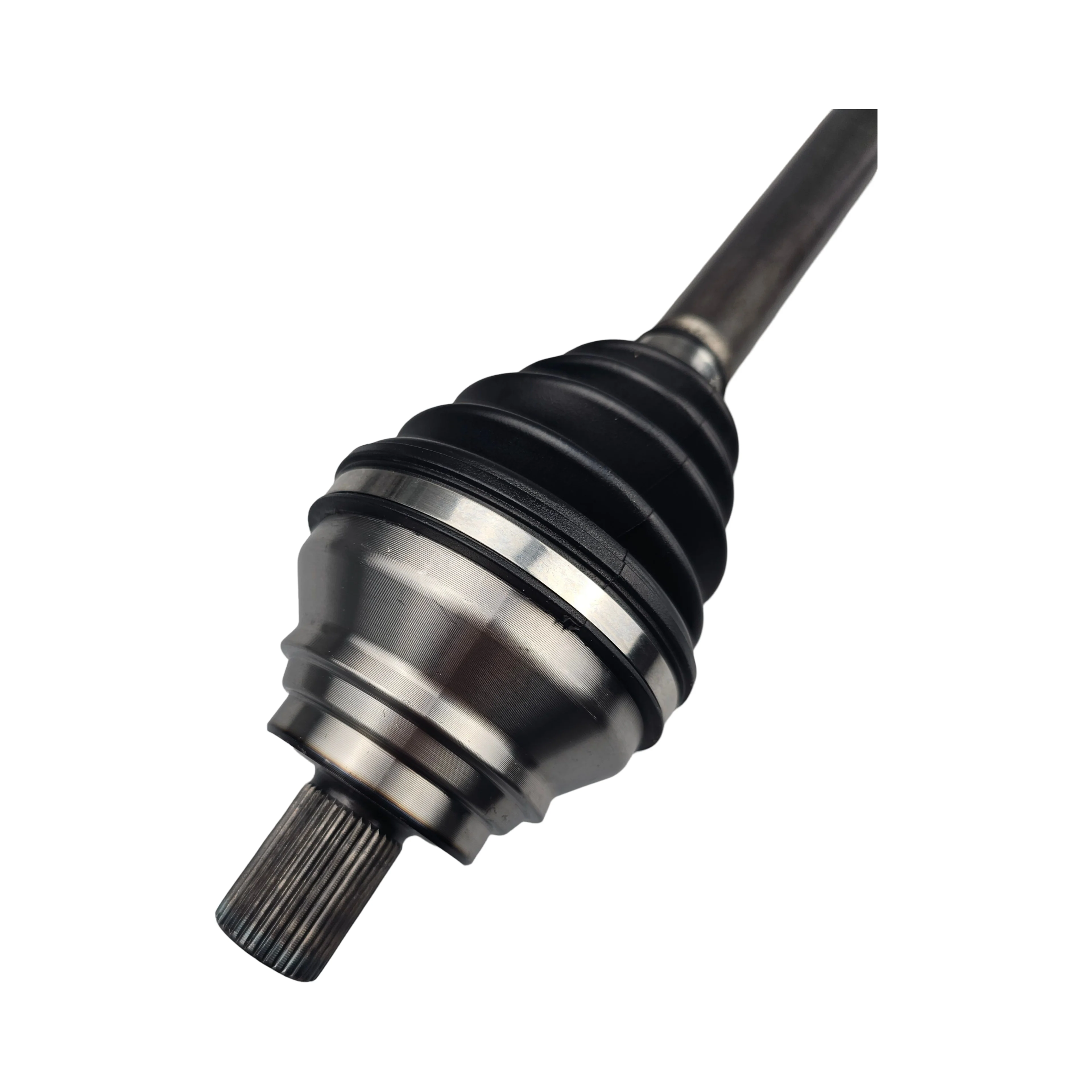

CV Axle Drive Shaft - Right Hand Side FWD Inner Joint Blot-on round Type

***PLEASE CHECK THE ENGINE CODE OF YOUR VEHICLE***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Volkswagen EOS 1F 2.0L BWA, CAWB (03/2007-04/2010) Right, DCT
  Sub-Models Include 2.0T FSI, 147 TSI
• Volkswagen EOS 1F 2.0L CCZB (05/2010-08/2014) Right, DCT, 6 Speed
  Sub-Models Include 155 TSI
• Volkswagen Golf MK5 1.4L BLG ( 05/2007-07/2009) -->11/2008, Manual, 6-Speed
  Sub-Models Include GT, GT SPORT TSI
• Volkswagen Golf MK6 1.4L CAXA (05/2007-03/2013) 11/2008-05/2011, Right, DCT, 7 Speed
  Sub-Models Include 90 TSI TRENDLINE
• Volkswagen Golf MK6 1.4L CAVD, CTHD (03/2009-01/2015) Right, DCT
  Sub-Models Include 118 TSI COMFORTLINE, 118 TSI
• Volkswagen Golf MK6 1.4L CAXA (02/2010-01/2014) -->05/2011, Right, DCT, 7 Speed
  Sub-Models Include 90 TSI TRENDLINE
• Volkswagen Golf MK5 2.0L AXX, BWA (05/2005-07-2007) Right, DCT
  Sub-Models Include GTI

• Volkswagen Golf MK5 2.0L BYD (09/2006-09/2009) -->11/2008, --> VIN: 1K5600000, Right, DCT, 6 Speed
  Sub-Models Include GTI PIRELLI
• Volkswagen Golf MK6 2.0L CCZB (10/2009-08/2013) Right, DCT
  Sub-Models Include GTI 155 TSI, GTI ADIDAS
• Volkswagen Jetta 1K, 1B  1.4L CAVD, CTHD (02/2009-12/2014) Right, DCT, 7 Speed
  Sub-Models Include 118 TSI
• Volkswagen Jetta 1K 2.0L BWA, CAWB (03/2005-10/2010) -->10/2010, Right, DCT, 6 Speed
  Sub-Models Include 2.0 TURBO FSI, 147 TSI, 2.0 TURBO FSI, 147 TSI HIGHLINE
• Volkswagen Jetta 1B 2.0L CCZA (08/2011-07/2014) Right, DCT, 6 Speed
  Sub-Models Include 147 TSI HIGHLINE
• Volkswagen Passat B6 2.0L BWA, CAWB (03/2006-01/2010) Right, 6 Speed
  Sub-Models Include 2.0T FSI, 147 TSI



Sizing and Specifications

• Length (Compressed): 786mm
• Spline Count - Outer/Wheel Side: 36T
• Inboard Joint Type Ball On: 94mm Centre to Centre
• Outboard Joint Type: Ball

• Inboard Joint Type: Ball
• Hub Bolt Style: M16 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
