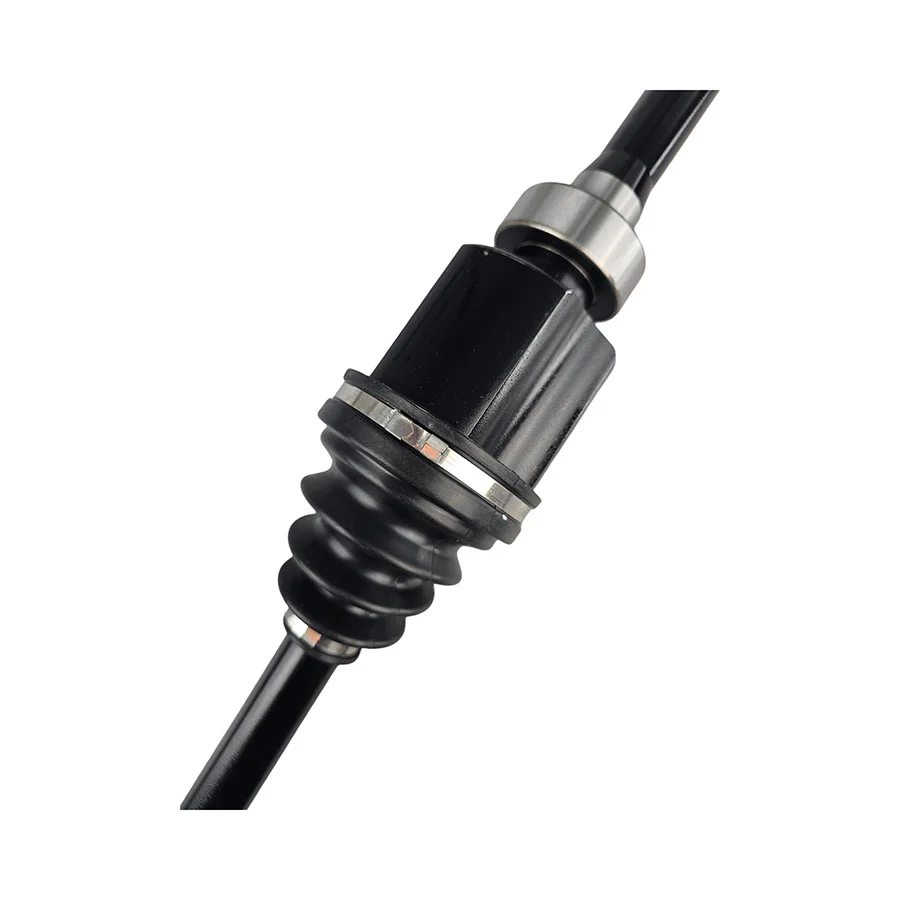

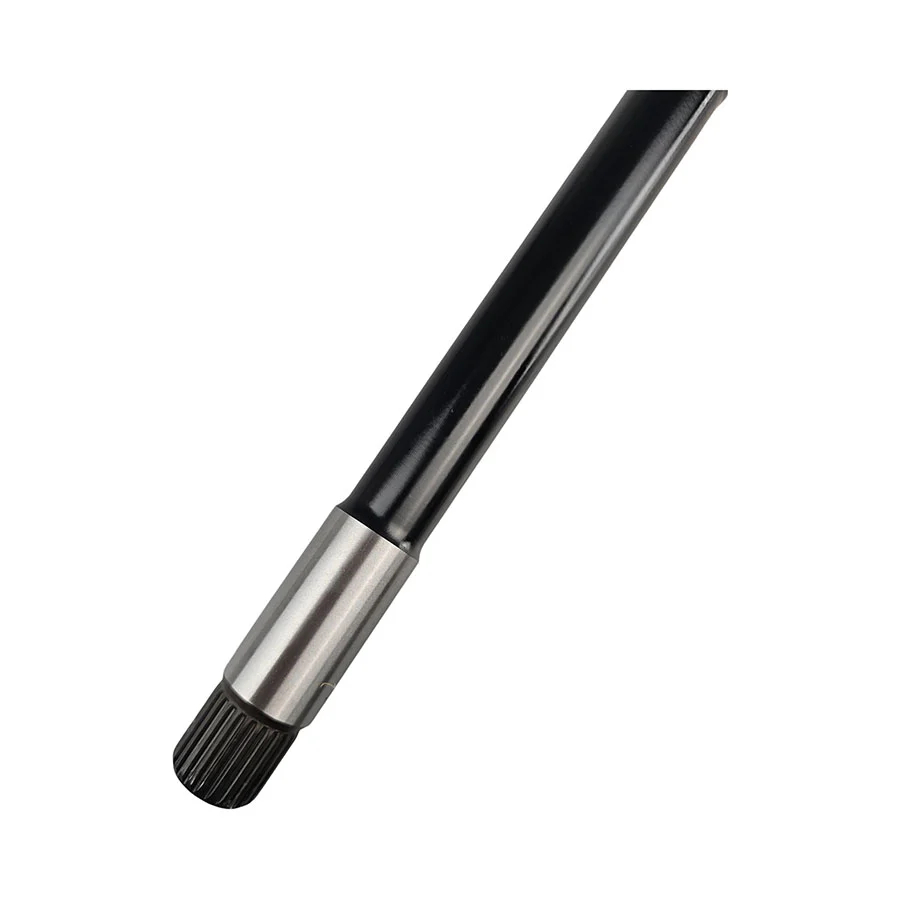

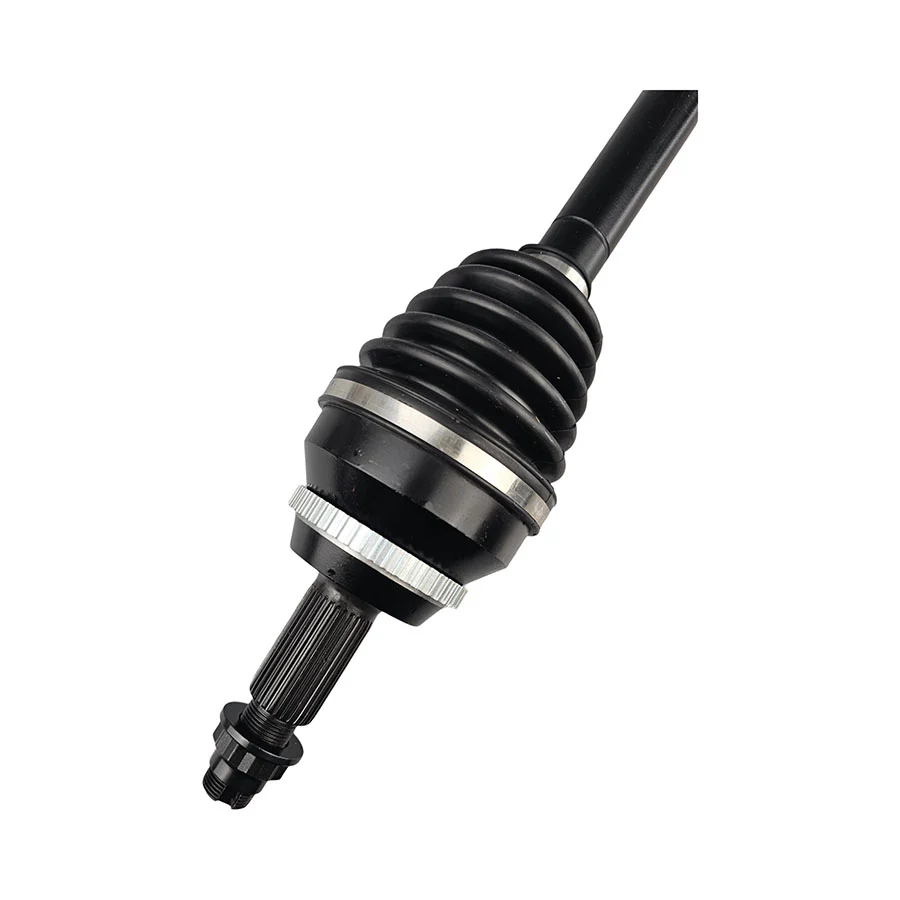

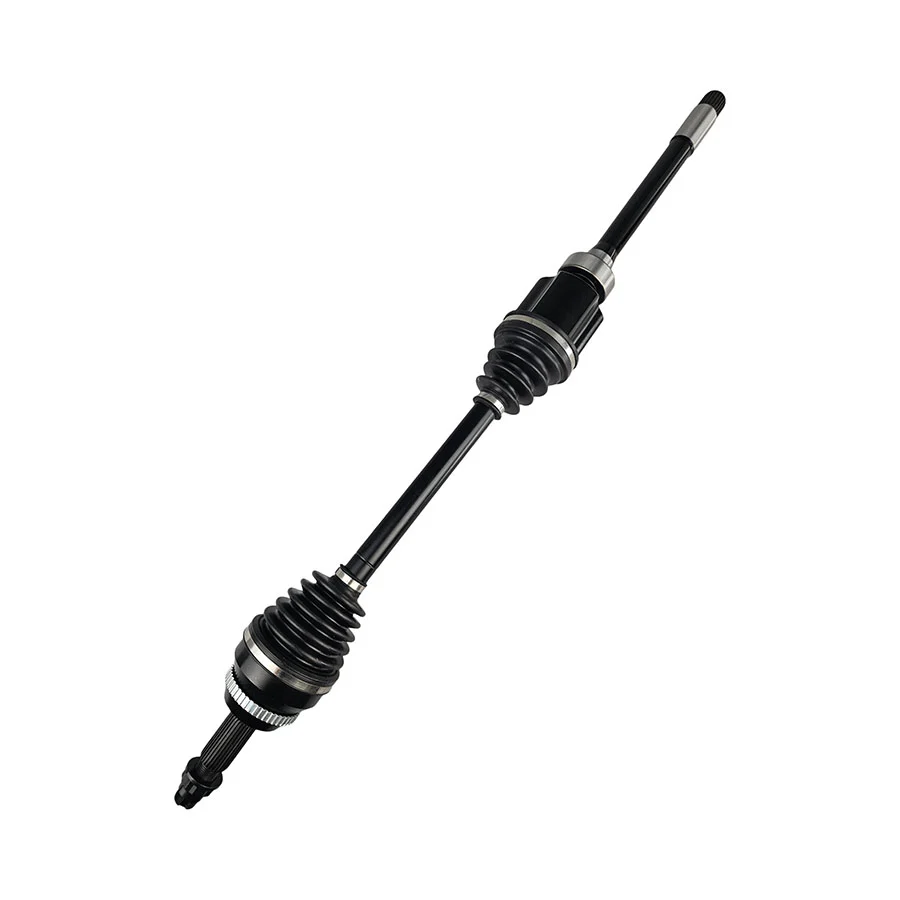

Right CV Drive Shaft for Toyota Kluger Highlander GSU55 2017-2021 AWD Check VIN

CV Axle Drive Shaft - Right Hand Side Automatic AWD

Front right hand side, for VIN#5TDDZ3FH and 5TDBZ3FH only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Kluger GSU55R 3.5L 2GRFKS AWD (02/2017 - 03/2021) Right VIN# 5TDDZ3FH, 5TDBZ3FH
  Includes Sub-models Grande, GX, GXL, Black Edition
• Toyota Highlander GSU55R 3.5L 2GRFKS AWD (02/2017 - 03/2021) Right VIN# 5TDBZ3FH
  Includes Sub-models GX, GXL

Sizing and Specifications

• Length (Compressed): 993.5mm
• Spline Count - Outer/Wheel Side: 30 Teeth
• Spline Count - Inner/Diff Side: 24 Teeth
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Extension Shaft Bearing OD: 67mm
• Extension Shaft Bearing Width: 23mm
• Extension Shaft Length From Outside of Bearing: 348.5mm
• Hub Nut Style: M22 x 1.5
• Number of Teeth, ABS Ring: 48

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
