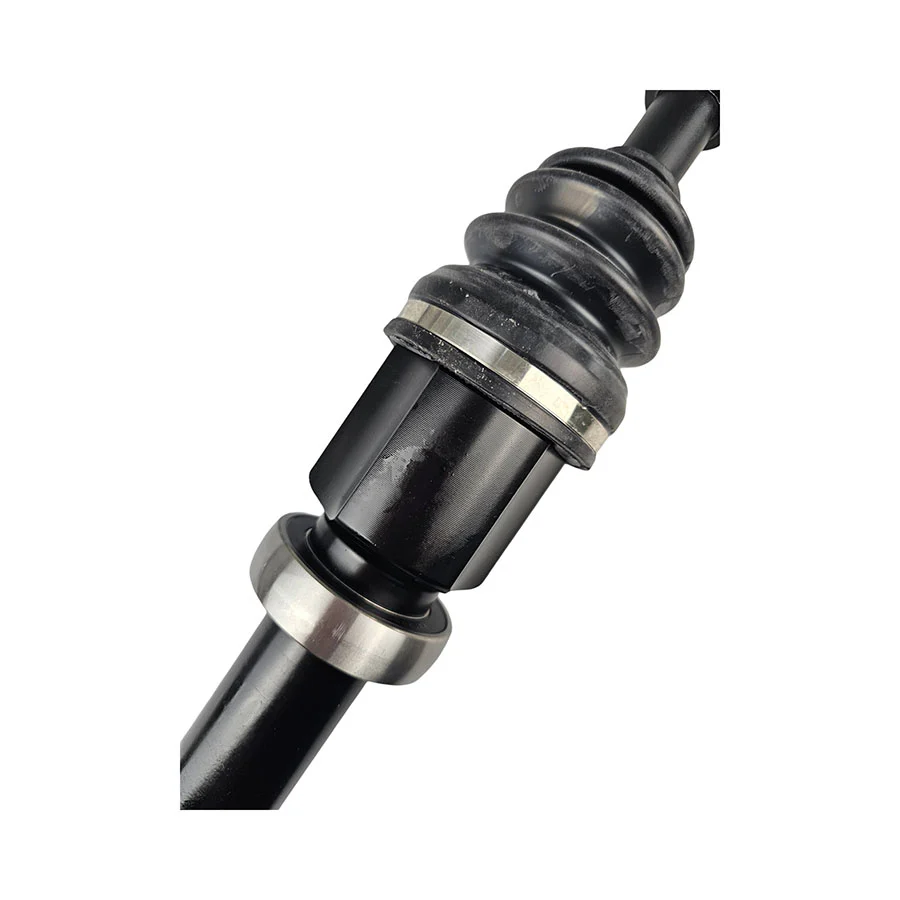

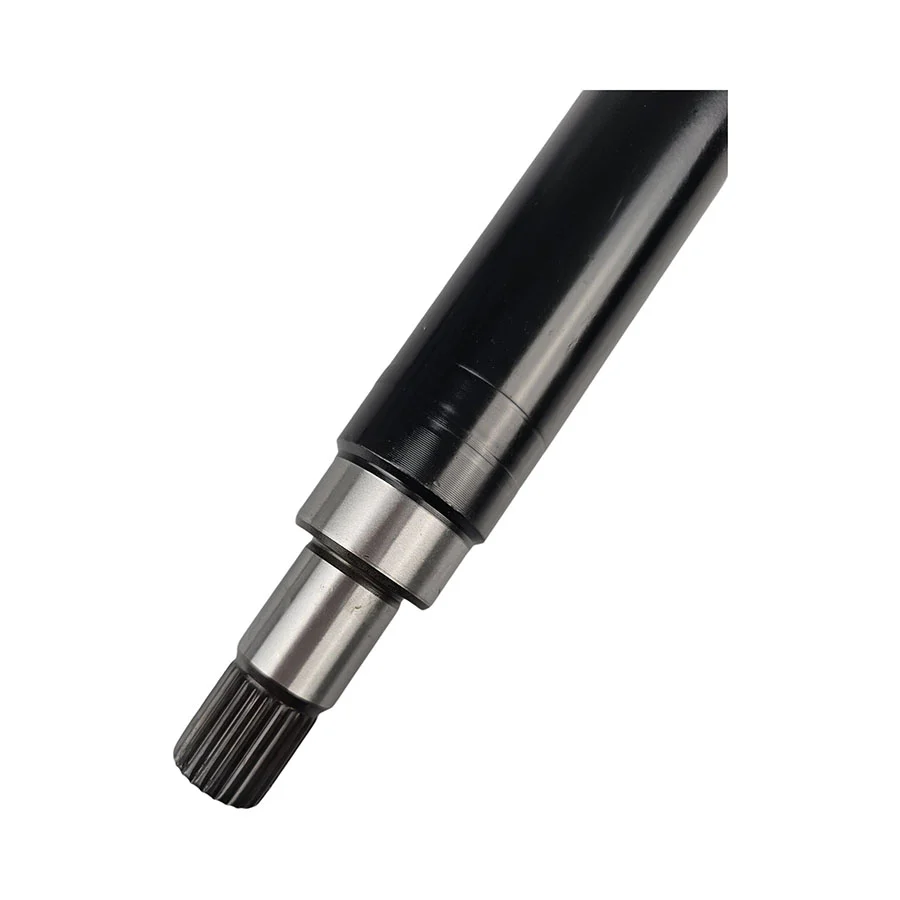

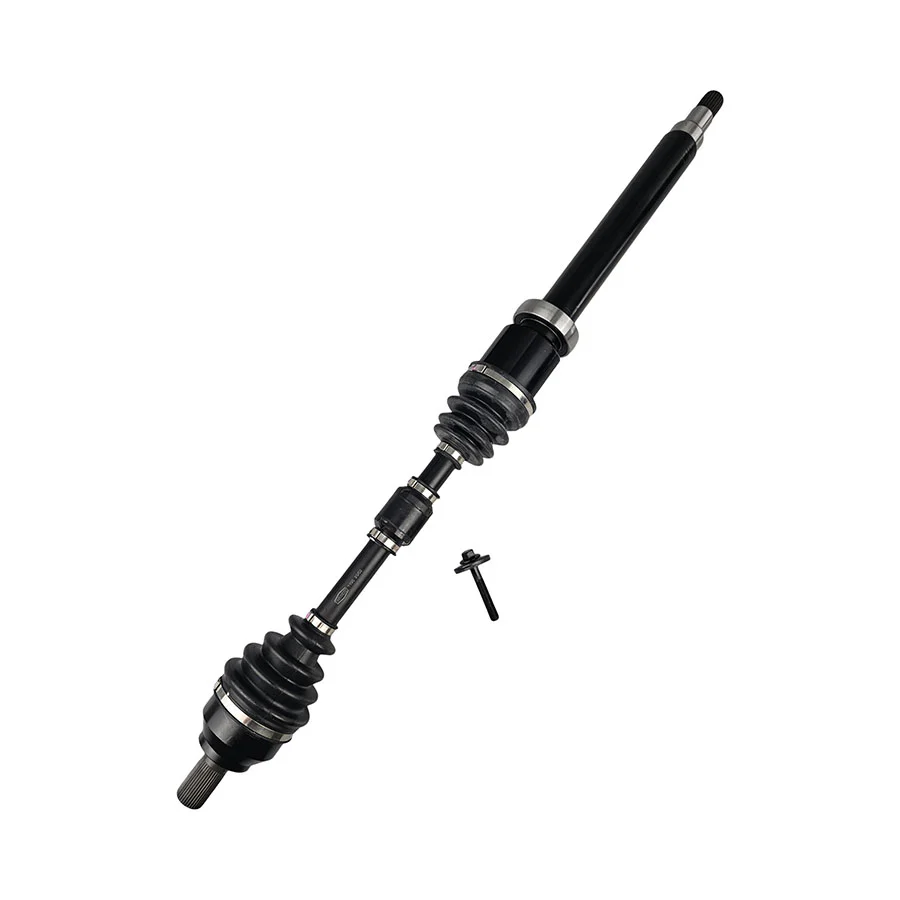

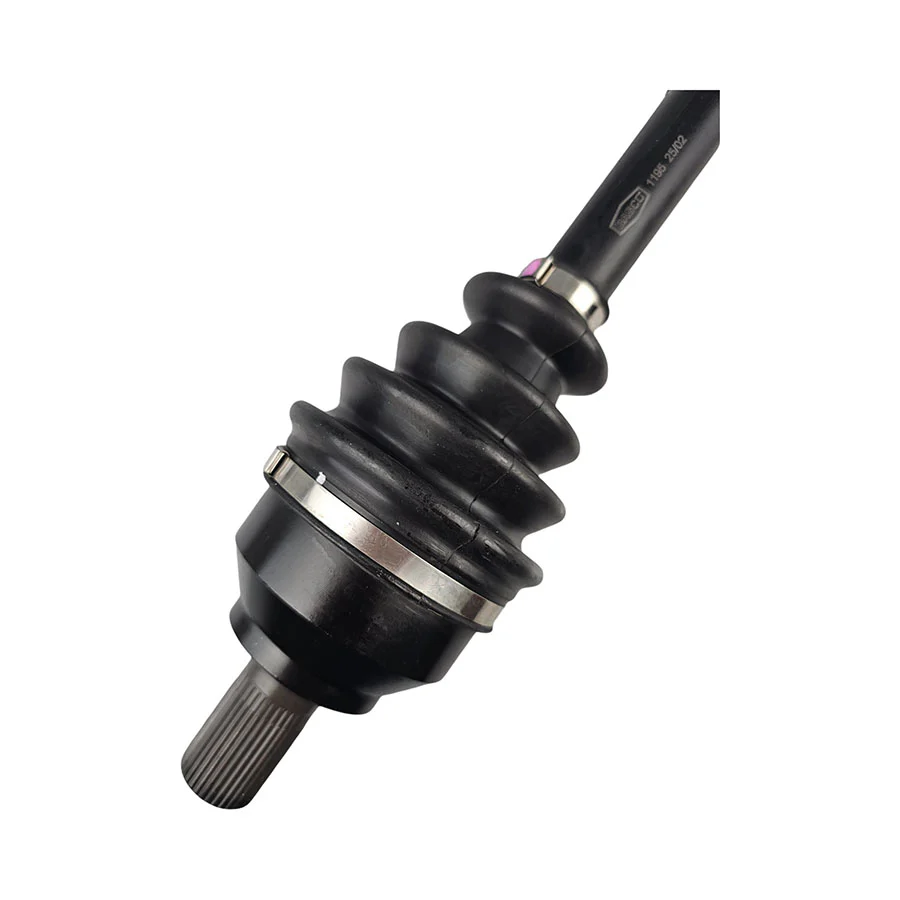

Right CV Drive Shaft for Ford Focus LV 2.0L 2008-2011 Manual Inner Spline 23T

CV Axle Drive Shaft - Right Hand Side Manual Transmission

 Check inner Spline count 23T, for left hand side CV please see CVA1270

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless-steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Ford Focus LV PXXGC UXXMJ TXXMJ 2.0L 2.0 DURATEC / A0DA 16V DOHC FWD (06/2008 - 06/2011) Manual Only, Inner Spline Count 23T


Sizing and Specifications

• Length (Compressed): 904mm
• Spline Count - Outer/Wheel Side: 36T
• Spline Count - Inner/Diff Side: 23T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Extension Shaft Bearing OD: 75mm
• Extension Shaft Bearing Width: 19mm
• Extension Shaft Length From Inside of Bearing Face: 352mm



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
