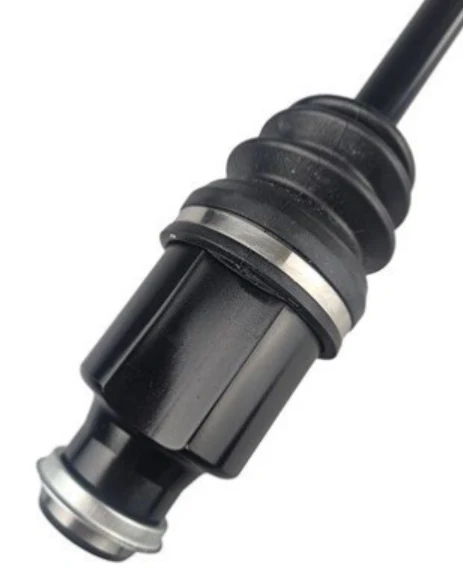

RH CV Drive Shaft Joint for Mazda 2 DY5W 1.5, Mazda Demio DY3W 2002-2007

CV Axle Drive Shaft - Right Hand Side Manual & Auto FWD &4WD

***Right hand side, Manual & Auto -For Mazda Demio models please check in with us for OE number before buying.***

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mazda 2 DY DY5W 1.5L ZY FWD (12/2002 - 08/2007) FITS RIGHT HAND SIDE, AUTO AND MANUAL.
  Includes Sub-models Genki, MAXX, Neo

• Mazda Demio DY DY3W DY3R 1.3L ZJVE / DY5W DY5R 1.5L ZYVE FWD (08/2002 - 06/2007) Please contact us to Compare OE number before buying.
  Includes Sub-models Casual, Casual e-4WD, Casual AERO, Casual Stylish M, Casual White Canvas, Cozy, Cozy Canvas, Cozy White Canvas Top, Stardust Pink, Style C, Sport, Sport S



Sizing and Specifications for R/H Side.

• Length (Compressed): 520 mm
• Spline Count - Outer/Wheel Side: 25 Teeth
• Spline Count - Inner/Diff Side: 26 + 2 Blank
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Please contact us to Compare OE number



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase
