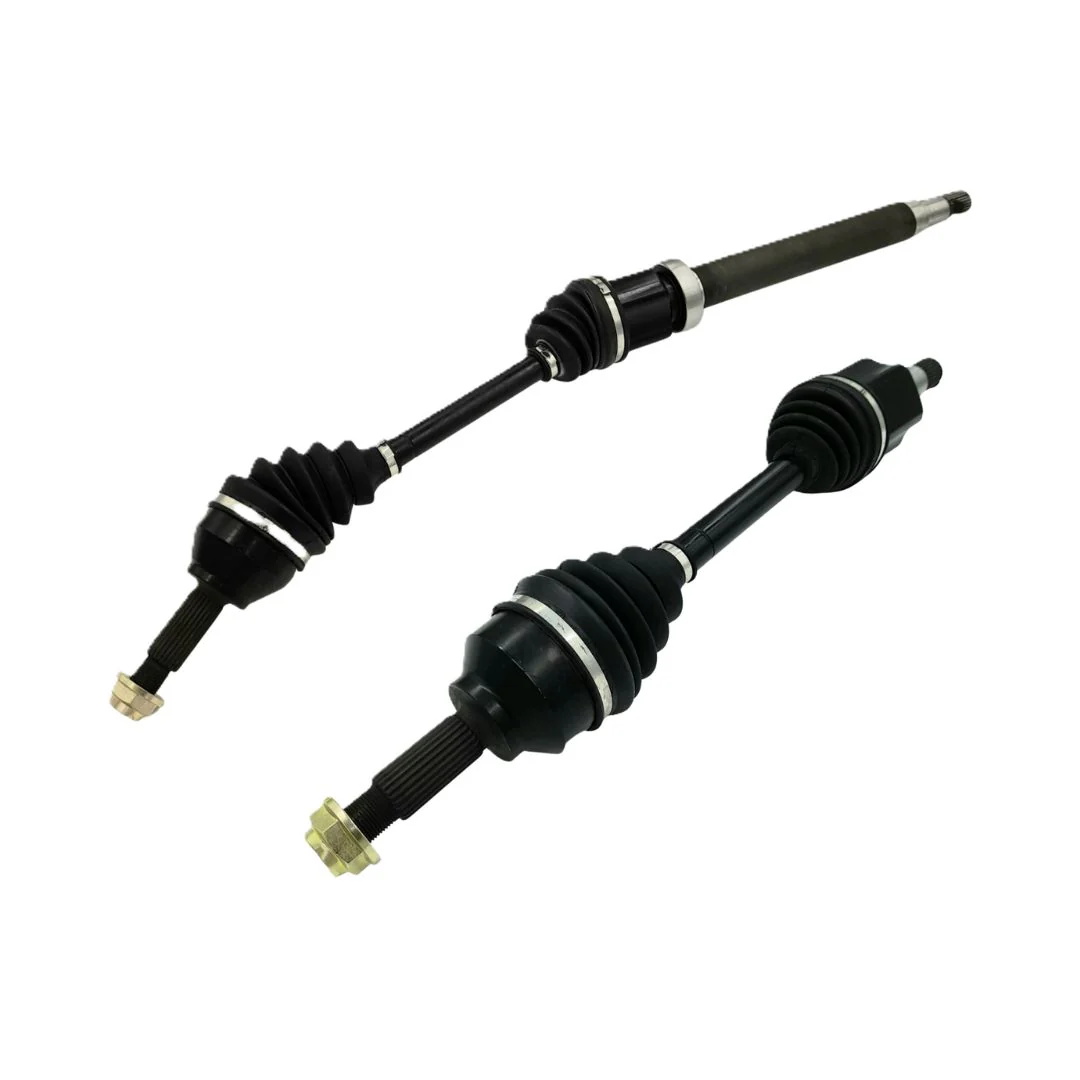

PAIR Left Right CV Axle Drive Shaft for Ford Focus LR 1.8L 2.0L Petrol 1998-2005

CV Axle Drive Shaft - Pair Left and Right Hand Side Automatic FWD

Automatic, but can fit manual 5-speed for 2.0L models please check engine code

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Ford Focus LR AXXWP AXXGC FXXWP 1.8L EYDE 16V DOHC Automatic FWD (2000 - 04/2005) Automatic Only
  Includes Sub-models CL, LX, SR
• Ford Focus LR 2.0L EDDF, EDDB, ALDA 16V DOHC (10/1998 - 04/2005) Automatic and Manual 5-Speed
  Includes Sub-models ZETEC, ZETEC R, GHIA, GHIA ZETEC, CL, LX, SR, ST170

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 616mm
• Spline Count - Outer/Wheel Side: 25T
• Spline Count - Inner/Diff Side: 26T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball

Right CV Shaft

• Length (Compressed): 944.5mm
• Spline Count - Outer/Wheel Side: 25T
• Spline Count - Inner/Diff Side: 26T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball

• Bearing Outer Diameter on Extension Shaft: 75mm
• Extension Shaft Bearing Width: 19mm
• Hub Nut Style: M22 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
