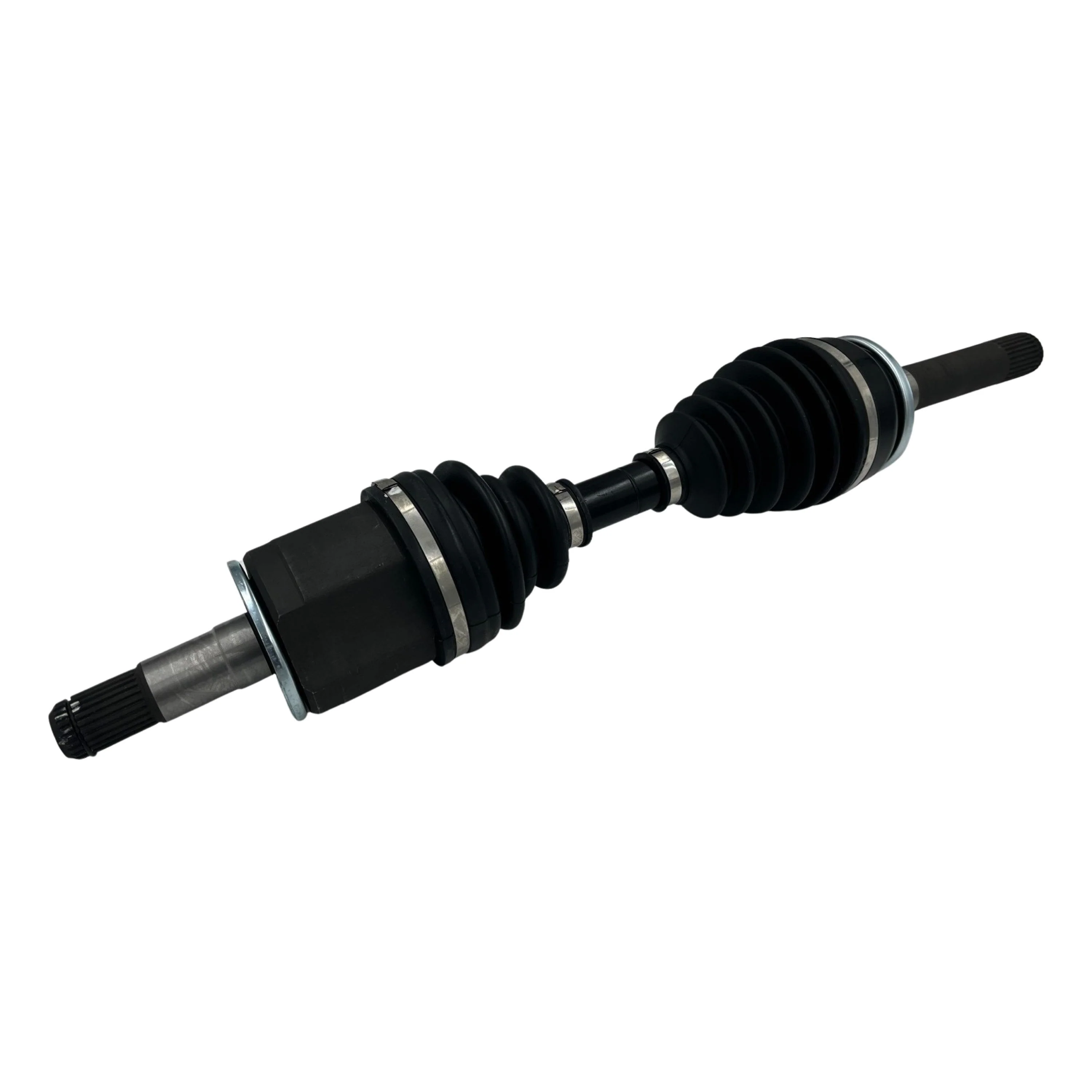

Pair CV Axle Drive Shaft - Front Left and Right Hand Side with Inner Spline Count 25 Teeth

***Pair kit, 25T left inner joint, bolt on right inner joint***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

Please note: Vehicles with 4M40 & 4M40T engine up to 08/2003 has 2 options, 25 Spline (CVA1099) and 28 Spline (CVA1068). Please ensure you order the correct shaft for your application.

• Mitsubishi Delica PD6W PE8W PD8W PF6W 2.9L 3.0L 4WD MT AT (05/1994 - 12/2006)
  Includes Sub-models Space Gear
• Mitsubishi Triton MK K77 2.9L 4M40 4WD MT (06/1996 - 08/2003) Check Spline Count, 25T Spline
  Includes Sub-models GLX, GLS
• Mitsubishi Pajero NH NJ NK NL 3.0L 3.5L 4WD AT (06/1996 - 08/2003)
  Includes Sub-models GLX, GLS



Sizing and Specifications

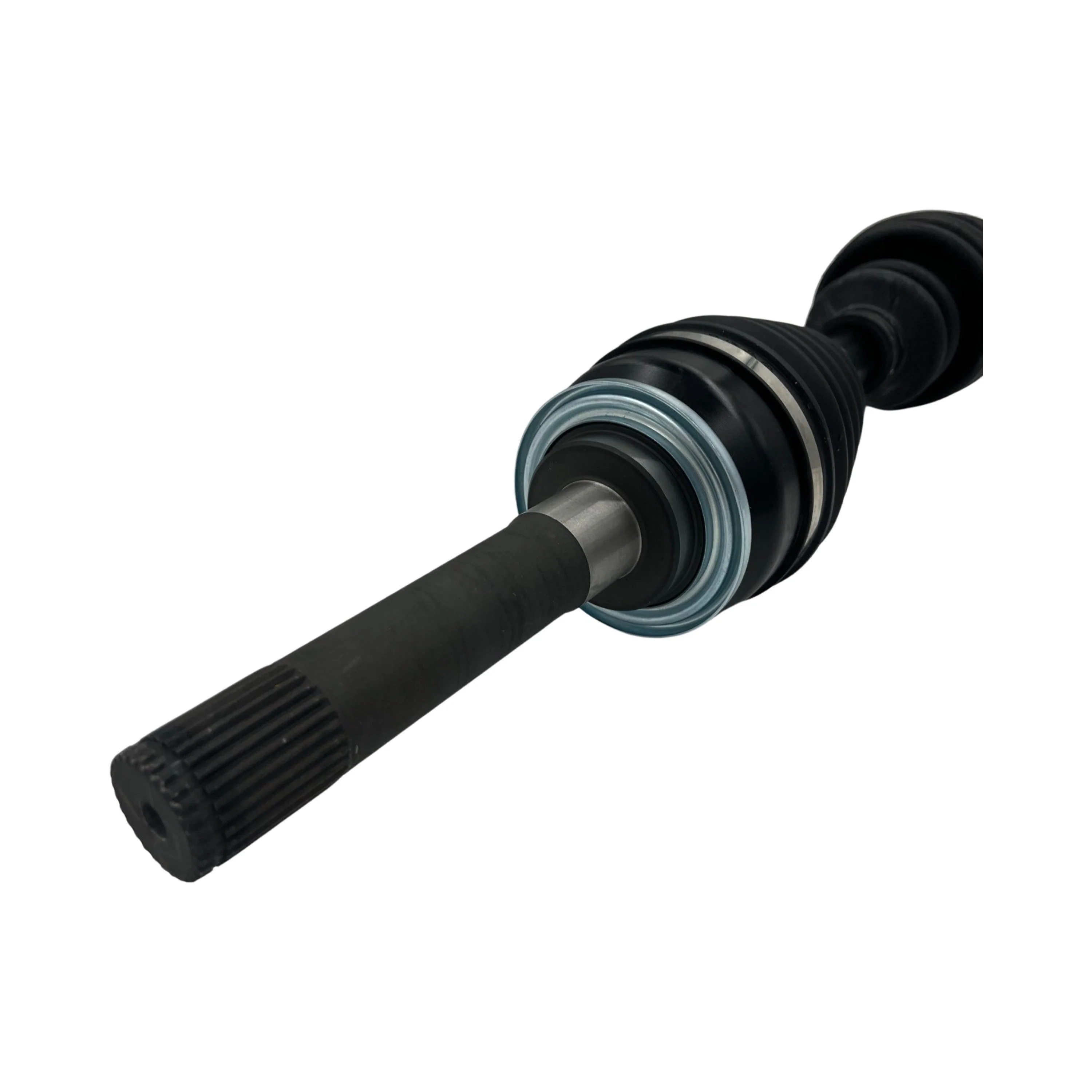

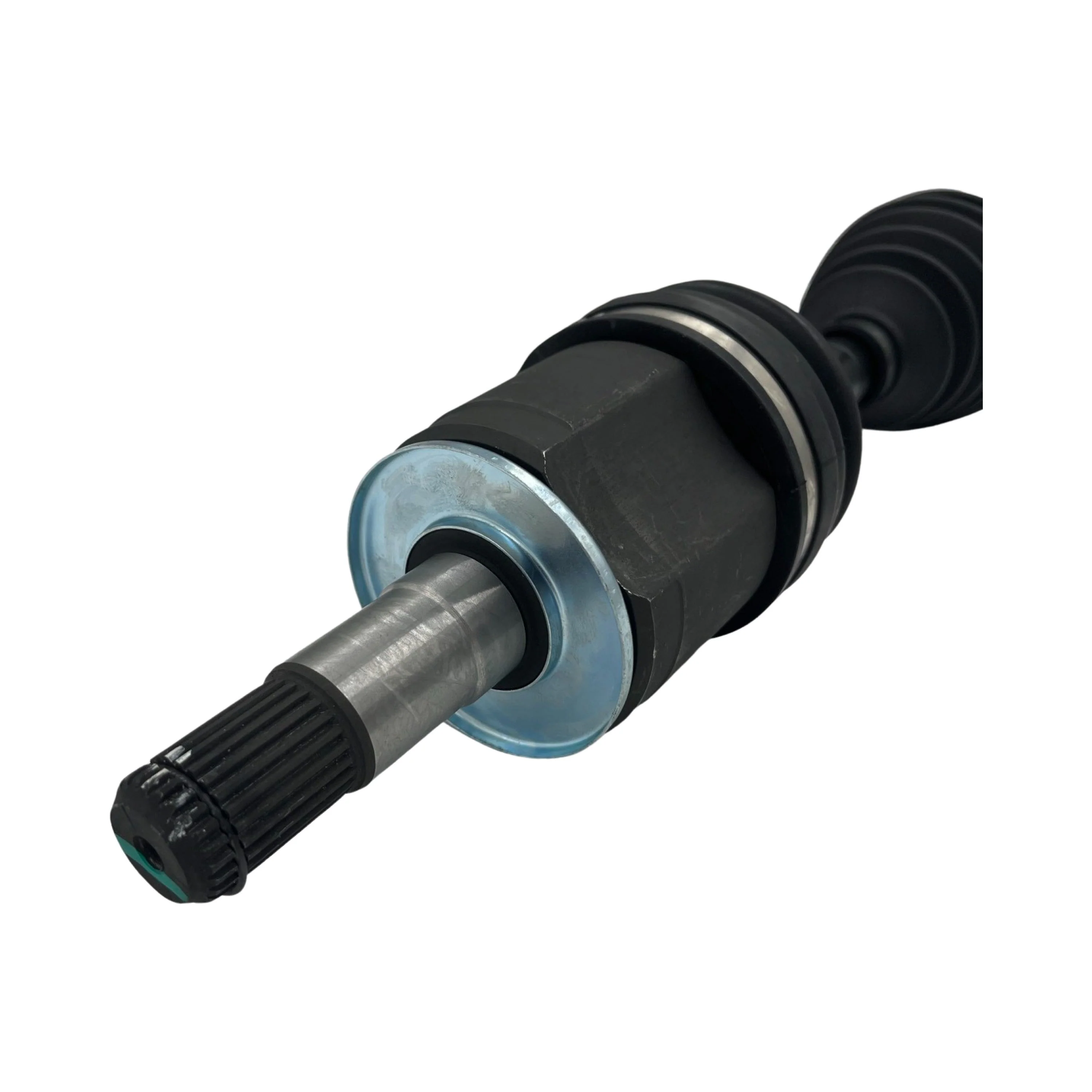

Left CV Shaft

• Length (Compressed): 614mm
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 25T
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod

Right CV Shaft

• Length (Compressed): 507mm
• Spline Count - Outer/Wheel Side: 28
• Outboard Joint Type: Ball
• Inboard Joint Type: Bolt On, 4 Bolts
• Mounting Bolt Centre to Centre: 110.46mm



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
