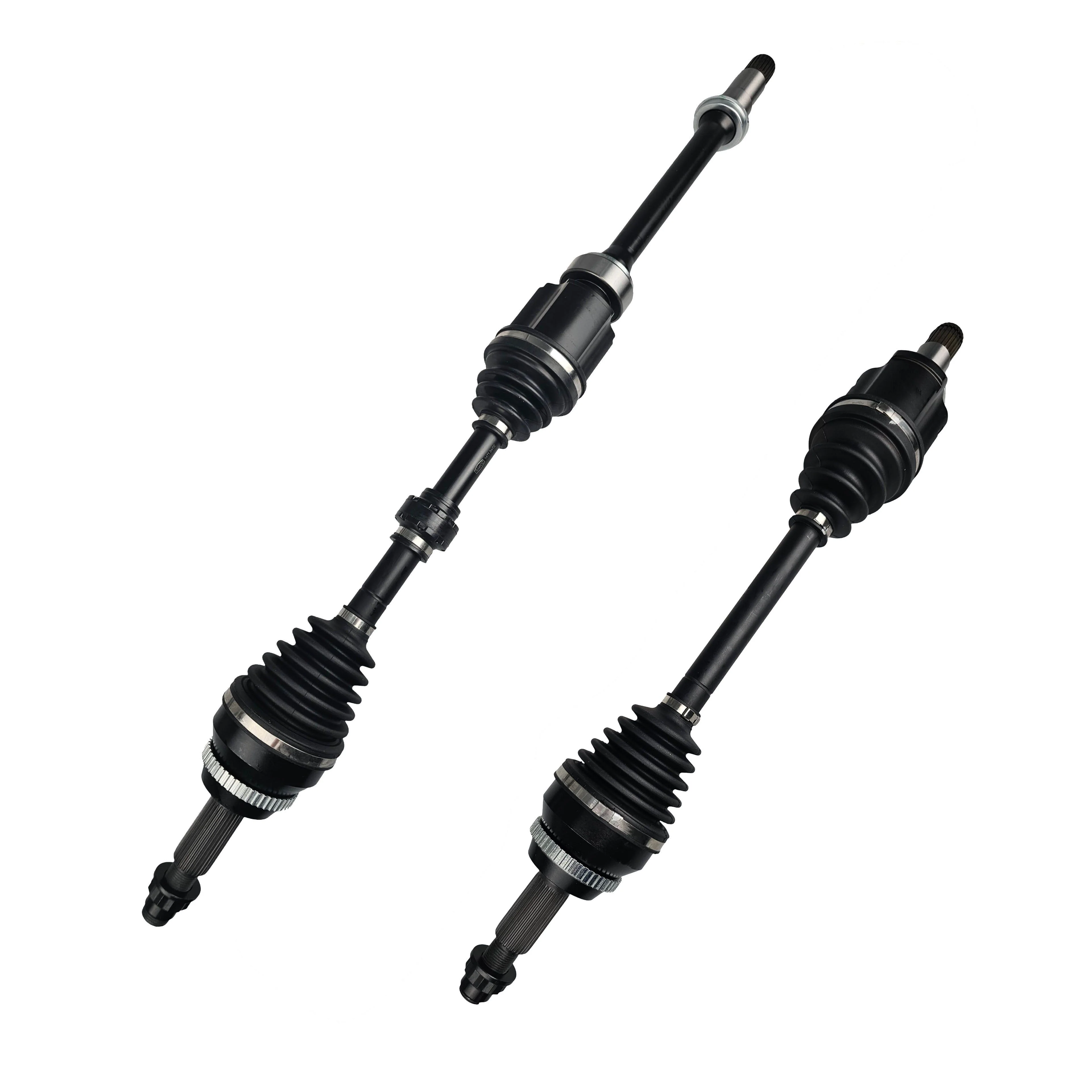

PAIR Front CV Drive Shaft for Toyota Kluger Highlander GSU50 GSU55 3.5L 2GRFE

Pair CV Axle Drive Shaft - Left and Right Hand Side  Automatic FWD AWD

Pair front left and right, does not fit Kluger 2GRFKS engine models

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Kluger GSU50 GSU50R GSU55 GSU55R 3.5L FWD AWD AT (03/2014 - 02/2017)
  Includes Sub-models Altitude, KX-R, KX-S, GX, GXL, Grande
• Toyota Highlander GSU55 GSU55R 3.5L AWD AT (03/2014 - 03/2021)
  Includes Sub-models GX, GXL, Limited, Limited ZR

Sizing and Specifications

Right CVA1471

• Length (Compressed): 992mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T
• ABS Ring Teeth: 48
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Bearing Outer Diameter on Extension Shaft: 72mm
• Extension Shaft Length From Inside of Bearing Face: 354mm
• Extension Shaft Bearing Width: 23mm
• Hub Nut Style: M22 x 1.5

Left CVA1472

• Length (Compressed): 675mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T
• ABS Ring Teeth: 48
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Drive Shaft Seal - Inner ID: 50mm
• Hub Nut Style: M22 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
