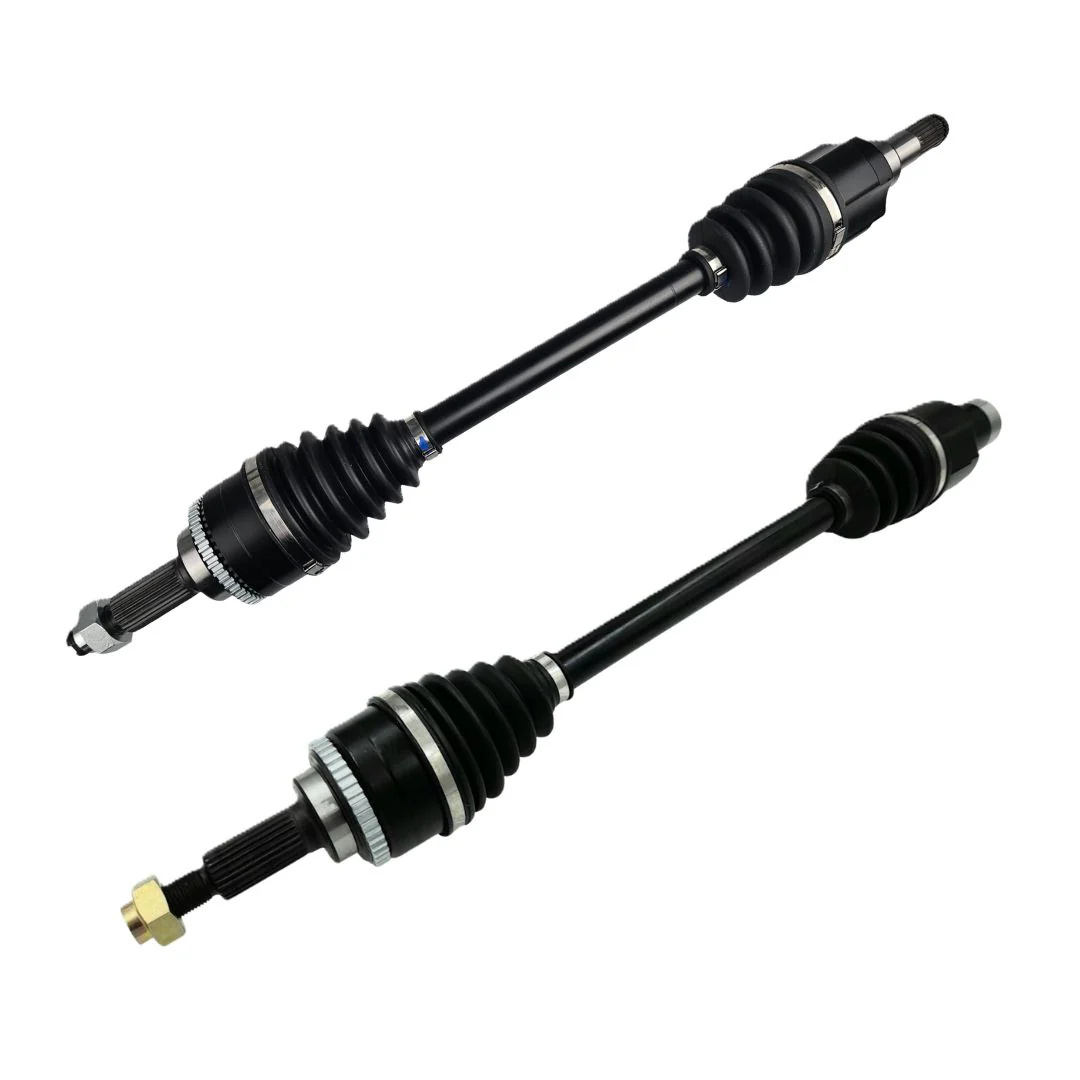

Pair Front CV Axle Drive Shaft For Suzuki Swift EZ RS415 ZC21S 1.5L M15A Manual

Pair CV Axle Drive Shaft - Front Left and Right Hand Side FWD Manual Transmission

Pair kit for manual transmission only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Suzuki Swift RS415, EZ 1.5L M15A Manual (11/2004-01/2011)

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 645mm
• Spline Count Outer/Wheel Side: 25
• Spline Count Inner/Diff Side: 22
• ABS Ring Teeth: 43

Right CV Shaft

• Length (Compressed): 642mm
• Spline Count Outer/Wheel Side: 25
• Spline Count Inner/Diff Side: 22
• Hub Nut Size: M18 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
