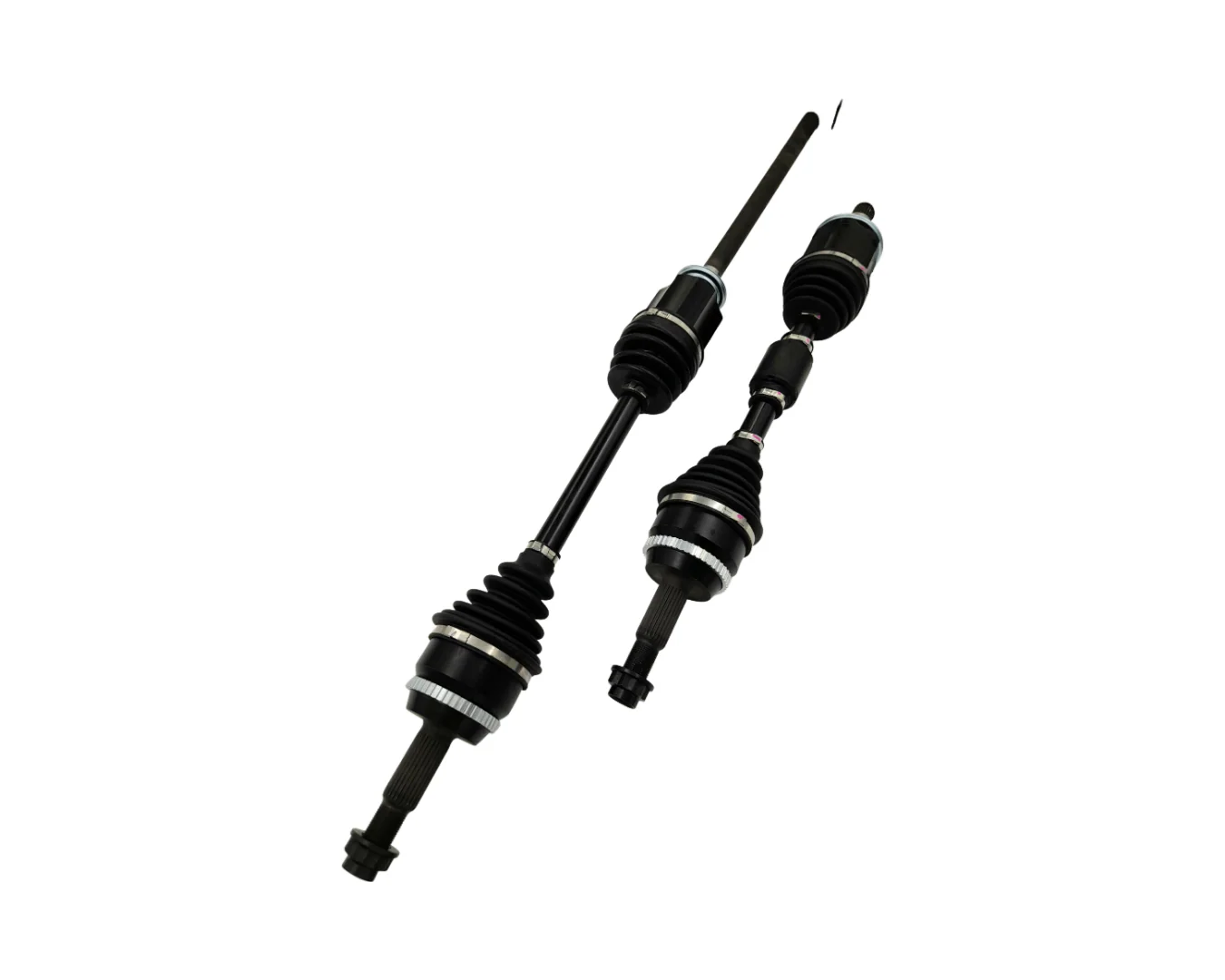

PAIR Left Right CV Drive Shaft for Toyota Kluger Highlander GSU45 3.5L 2007~2014

CV Axle Drive Shaft - Pair Front Left and Right Hand Side Automatic 4WD

Pair kit, left and right side for automatic transmission 4WD

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Kluger GSU45R 3.5L 2GRFE 24V DOHC VVT Automatic 4WD (08/2007 - 02/2014)
  Includes Sub-models Altitude, KX-R, KX-S, Grande
• Toyota Highlander GSU45R 3.5L 2GRFE 24V DOHC VVT Automatic 4WD (08/2007 - 02/2014)
  Includes Sub-models

Sizing and Specifications

Left CV Shaft CVA1284

• Length (Compressed): 651mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 23
• ABS Ring Teeth: 48
• Hub Nut: M22 x 1.5


Right CV Shaft CVA1285

• Length (Compressed): 1025mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 23
• ABS Ring Teeth: 48
• Hub Nut: M22 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
