Two Brand New CV Joint Drive Shafts



Fits

• CRV RD4, RD5 09/2001~08/2004 2.0L K20A, K20A1
• CRV RD6 09/2004~09/2006 2.4L K24A1
• CRV RD7 12/2001~01/2007 2.4L K24A1
• CRV RD8 2002~2007 2.0L K20A4
• CRV RD9 2/2005~09/2006 2.2L N22A2 Diesel



The Nitty Gritty
Left Side

• Length (Compressed): 666mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 27

Right Side

• Length (Compressed): 616mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side - Female: 25 + 2 Blank
• Hub Nut: M24 x 1.5



What You Get

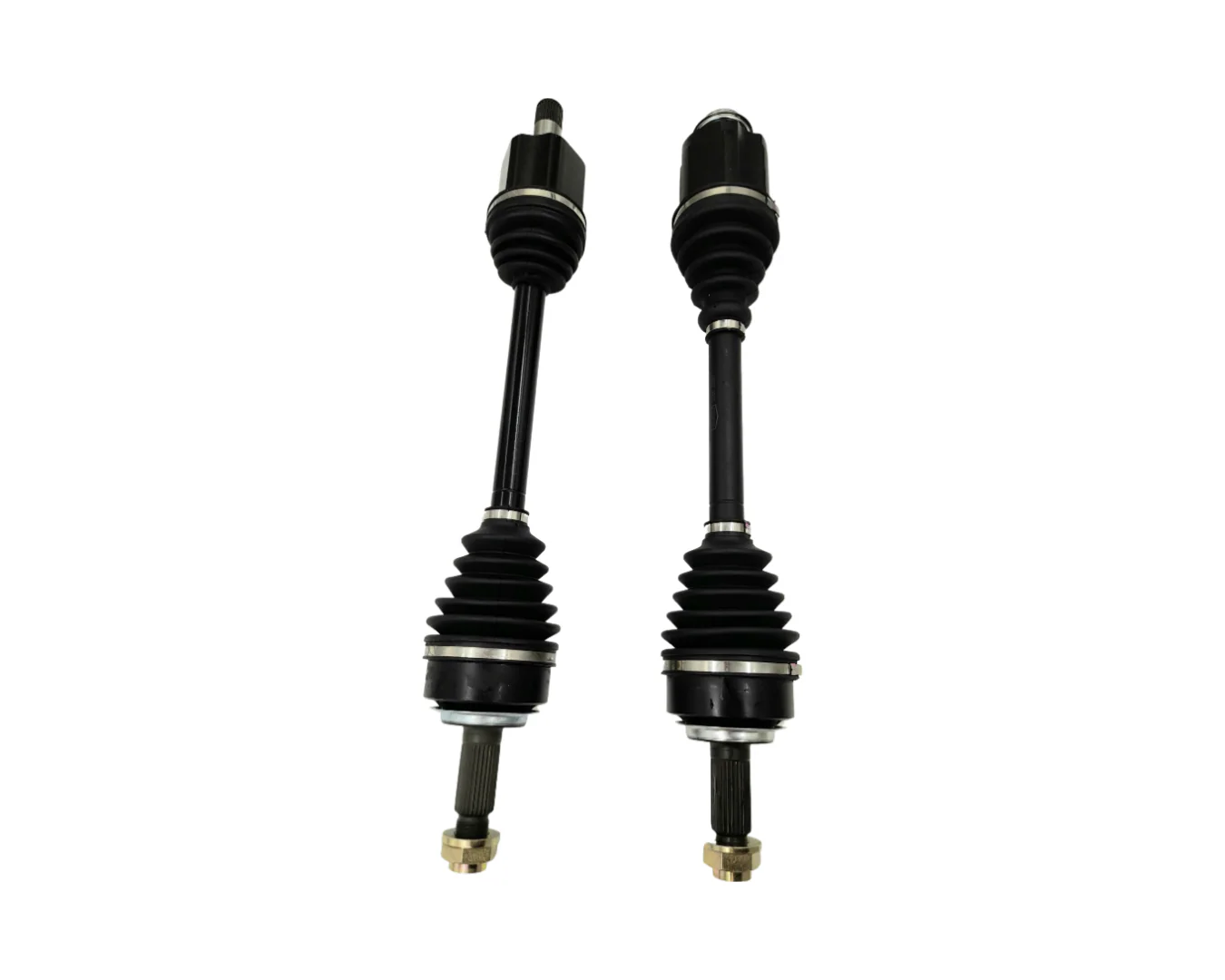

2 x CV Shaft

 

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying ang7les and speeds without friction, at high revolutions.

 

What You Really Get
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
