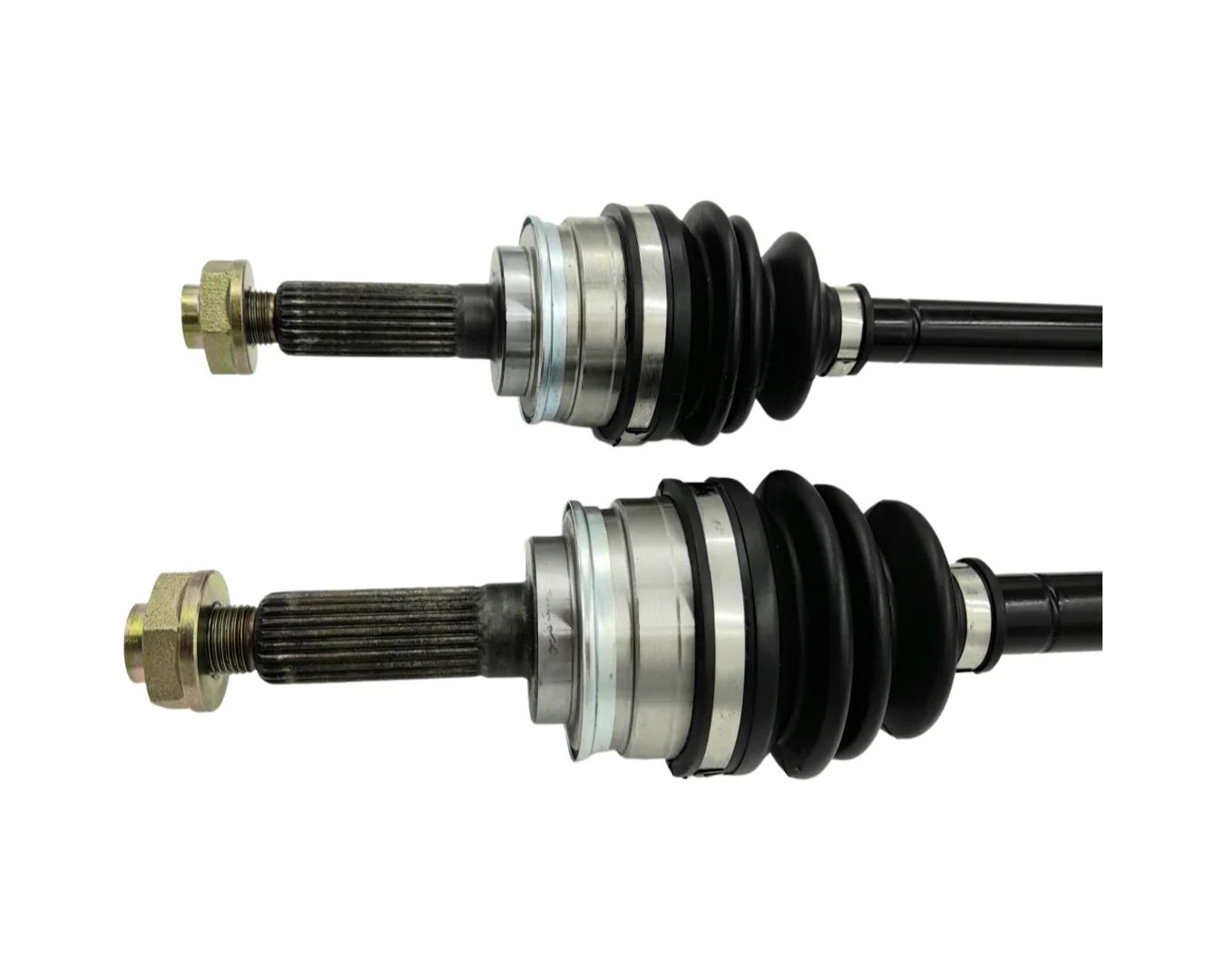

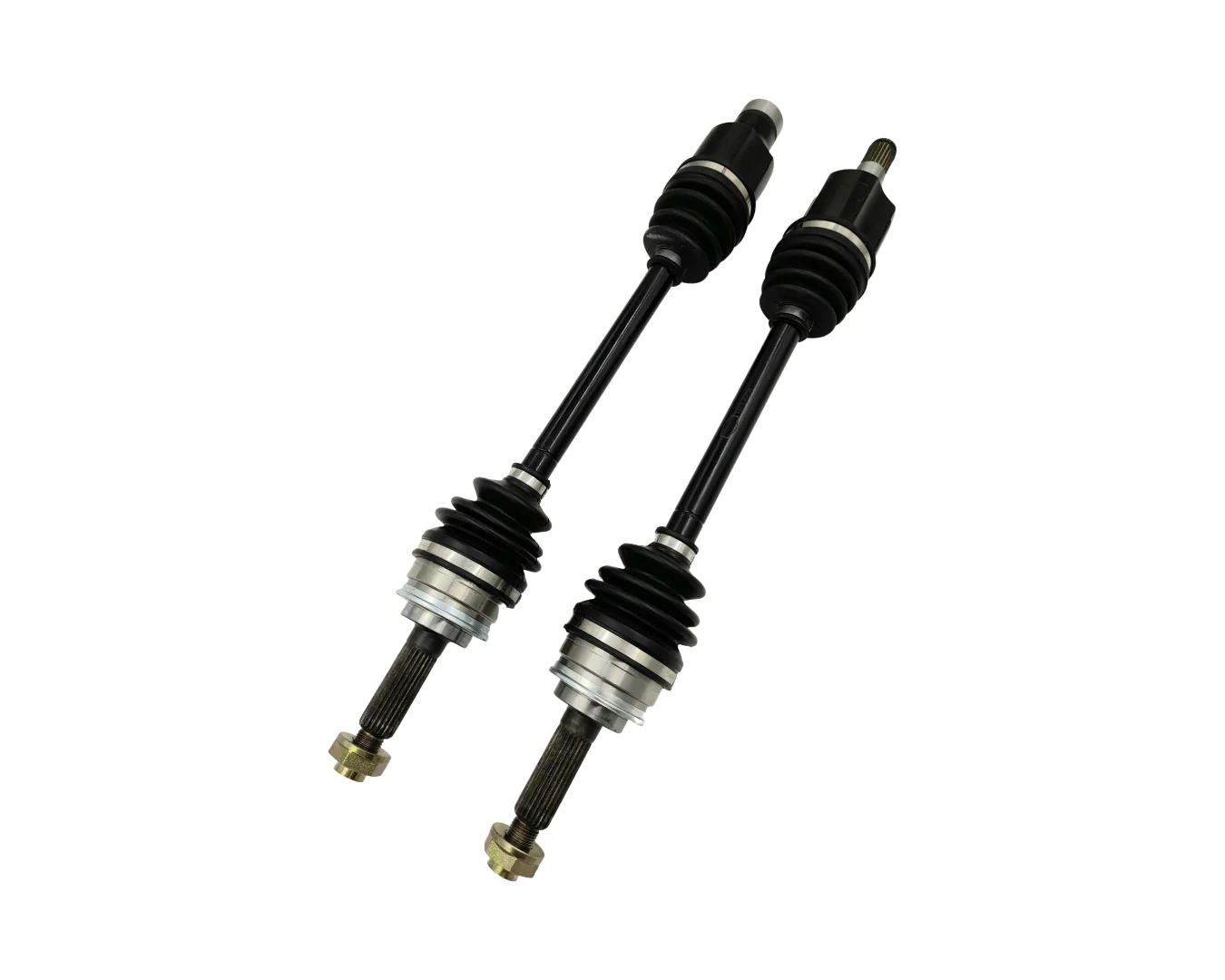

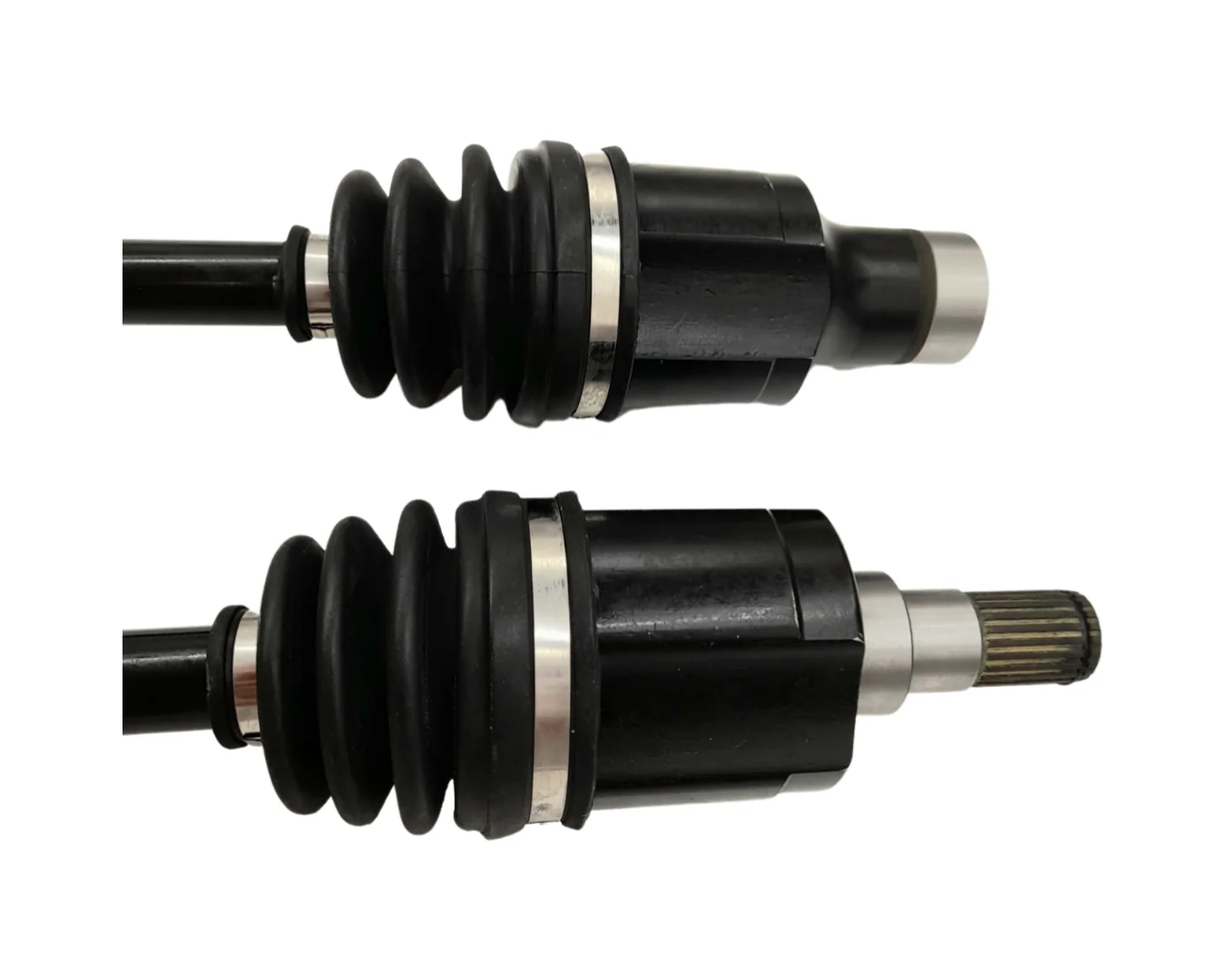

Pair Left Right CV Drive Shafts for Holden Barina MF MH Suzuki Swift 1.3L 89-99
CV Axle Drive Shaft - Pair Front Left and Right Hand Side Manual/Automatic Transmission FWD
Pair kit, Holden Barina manual transmission only
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Holden Barina MF MH Chassis: MG68, MS77 1.3L G13BA Manual Auto FWD(02/1989 - 05/1994) Manual Only
Includes Sub-models GS - Suzuki Swift SF413 Chassis: AB35S AA35S AH35S 1.3L G13BA Manual Auto FWD (12/1990 - 12/1999)
Includes Sub-models CINO, CINO Sport, CINO Extreme, CINO Black Magic, GP, GP Celebration, GP Encore, GL
Sizing and Specifications
Left Hand Side CV
- Spline Count (Wheel Side): 23
- Spline Count (Diff Side): 22
- Length Compressed: 603mm
- Hub Nut: M18 x 1.5
Right Hand Side CV
- Spline Count (Wheel Side): 23
- Spline Count (Diff Side): 22
- Length Compressed: 586.5mm
- Hub Nut: M18 x 1.5
What's Included
- 2 x CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
Pair (Two) New CV Joint Axle Shafts - Right and Left Hand Side Front
Fits
- Barina 1298cc G13BA 4D & 2D Hatchback inc GS Model 02/1989~05/1994
- Swift 1298cc G13BA 4D & 2D Hatchback & Sedan inc GL, GP, Cino Models 12/1990~12/1999
The Nitty Gritty
Left Hand Side
- Spline Count (Wheel Side): 23
- Spline Count (Diff Side): 22
- Length Compressed: 603mm
- Hub Nut: M18 x 1.5
Right Hand Side
- Spline Count (Wheel Side): 23
- Spline Count (Diff Side): 22
- Length Compressed: 586.5mm
- Hub Nut: M18 x 1.5
What You Get
2 x CV Shaft
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
What You Really Get
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
