Pair CV Shaft for Hyundai Santa Fe G4JS 2.4L G6BA 2.7L SM 2000-04/2006 4WD

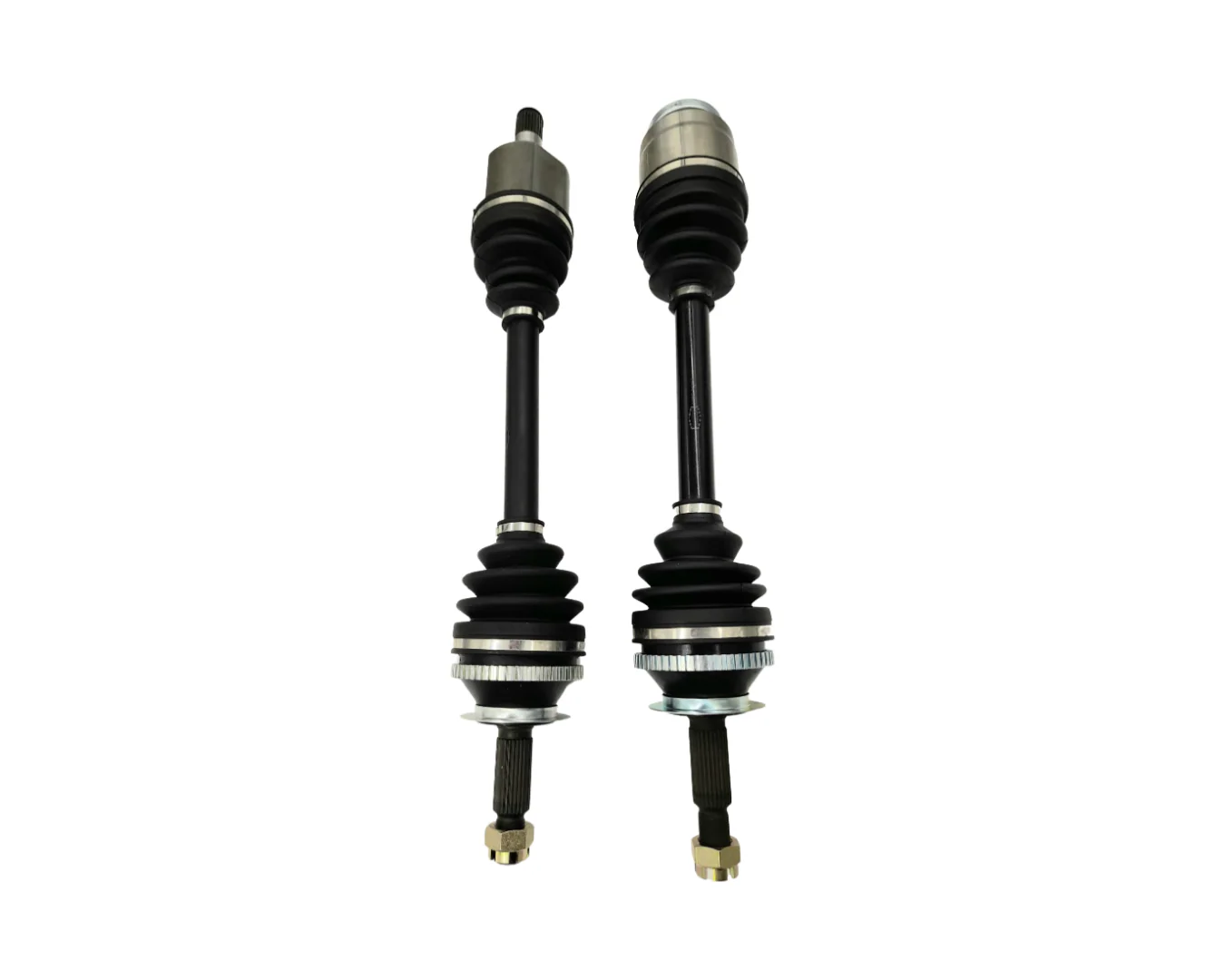

Pair CV Axle Drive Shaft
Automatic/Manual 4WD



Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Hyundai Santa Fe GL SM SB81B 2000~09/2003 4 Door SUV Compact PETROL 2.4L G4JS I4 16v DOHC MPFI (106kW)
• Hyundai Santa Fe GL SM SB81D 11/2000~04/2006 4 Door SUV Compact PETROL 2.7L G6BA V6 24v DOHC MPFI (132kW)
• Hyundai Santa Fe GLS, Elite SM SC81D 11/2000~04/2006 4 Door SUV Compact PETROL 2.7L G6BA V6 24v DOHC MPFI (132kW)

Sizing and Specifications

Right Side:

• Length (Compressed): 606mm

• Spline Count - Outer/Wheel Side: 27

• Spline Count - Inner/Diff Side - Female: 24 + 2 Blank

• ABS Ring Teeth: 52

Left Side:

• Length (Compressed): 648mm

• Spline Count - Outer/Wheel Side: 27

• Spline Count - Inner/Diff Side: 27

• ABS Ring Teeth: 52

What's Included

• 2 x CV Shafts

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
