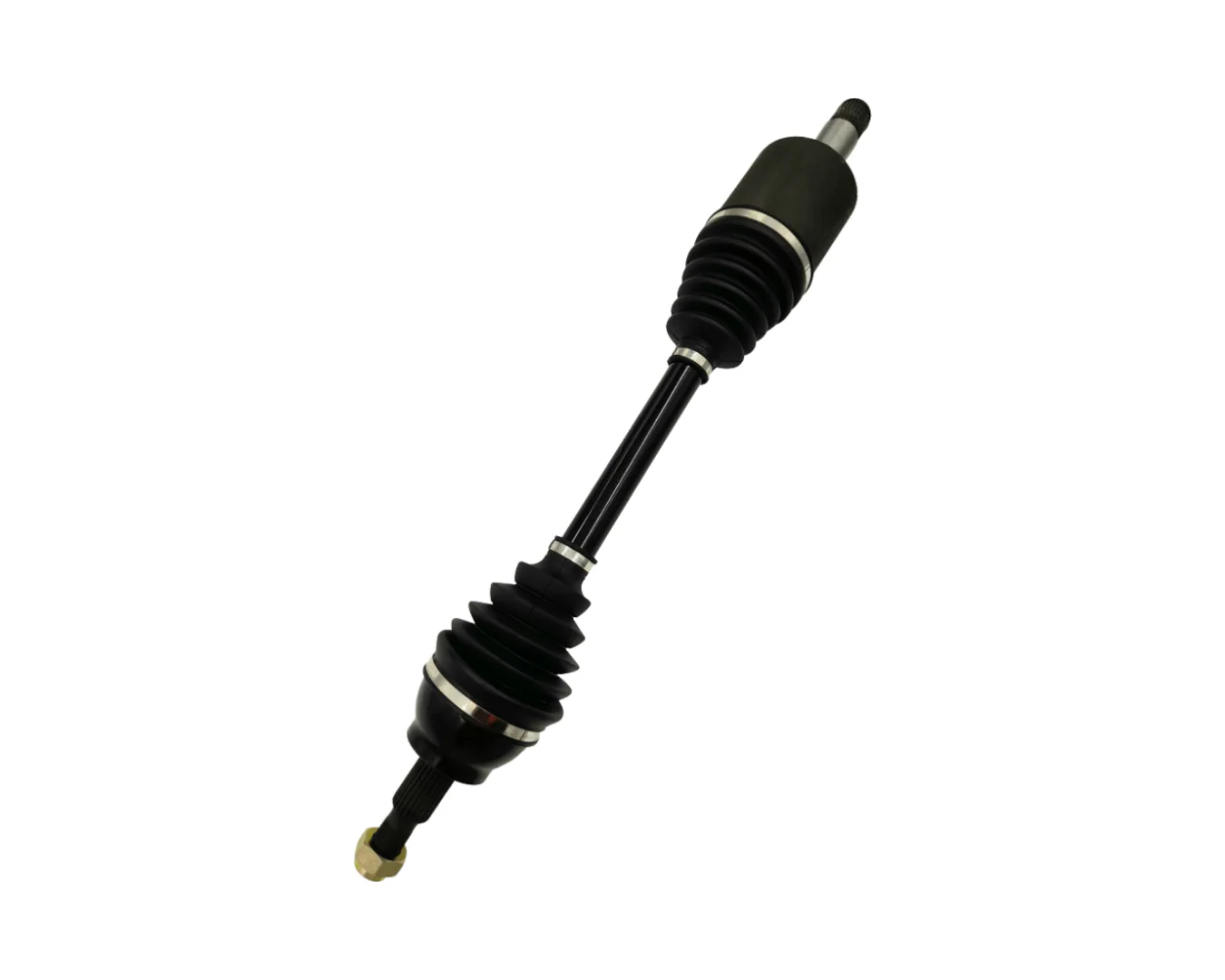

Left CV Axle Drive Shaft for Mercedes Benz A170 A180 A200 W169 B200 2004-2012

CV Axle Drive Shaft - Left Hand Side CVT Manual Transmission FWD

A-Class manual and CVT, B200 models for CVT only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mercedes Benz A170 W169 1.7L M266.940 FWD Manual CVT (05/2005 - 06/2010)
  Includes Sub-Models Avantgarde, Classic & Elegance
• Mercedes Benz A180 W169 1.7L M266.940 & 2.0L OM640.940 FWD Manual CVT (05/2005 - 06/2012)
  Includes Sub-models CDI, Avantgarde, Classic, Elegance

• Mercedes Benz A200 W169 2.0L M266.960 FWD Manual CVT (09/2004 - 04/2012)
  Includes Sub-models Avantgarde, Elegance
• Mercedes Benz B200 W245 2.0L M266.960 FWD CVT (11/2005 - 03/2012) CVT Only



Sizing and Specifications

• Length (Compressed): 625mm
• Spline Count - Outer/Wheel Side: 25
• Spline Count - Inner/Diff Side: 27

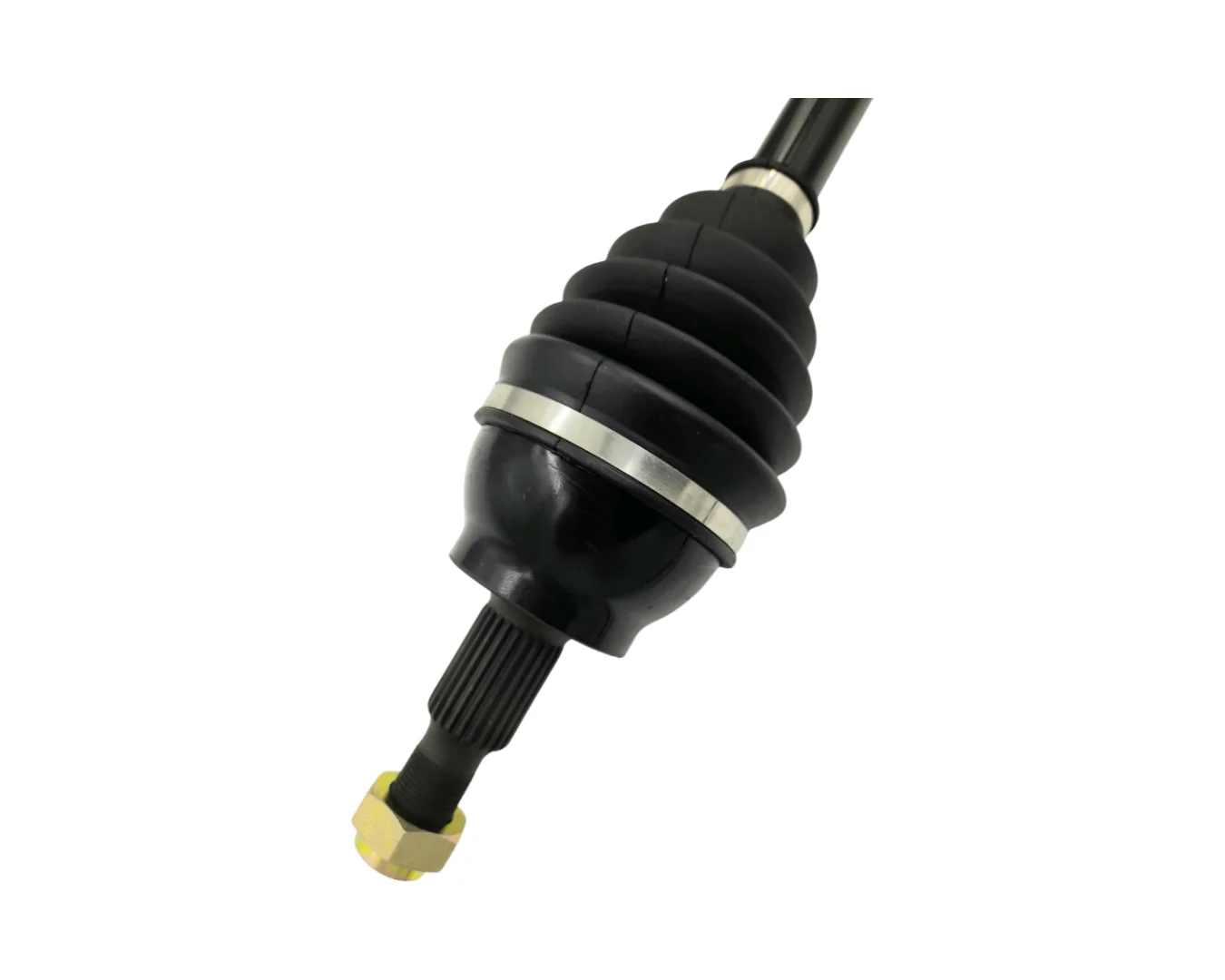

• Outboard Joint Type: Ball

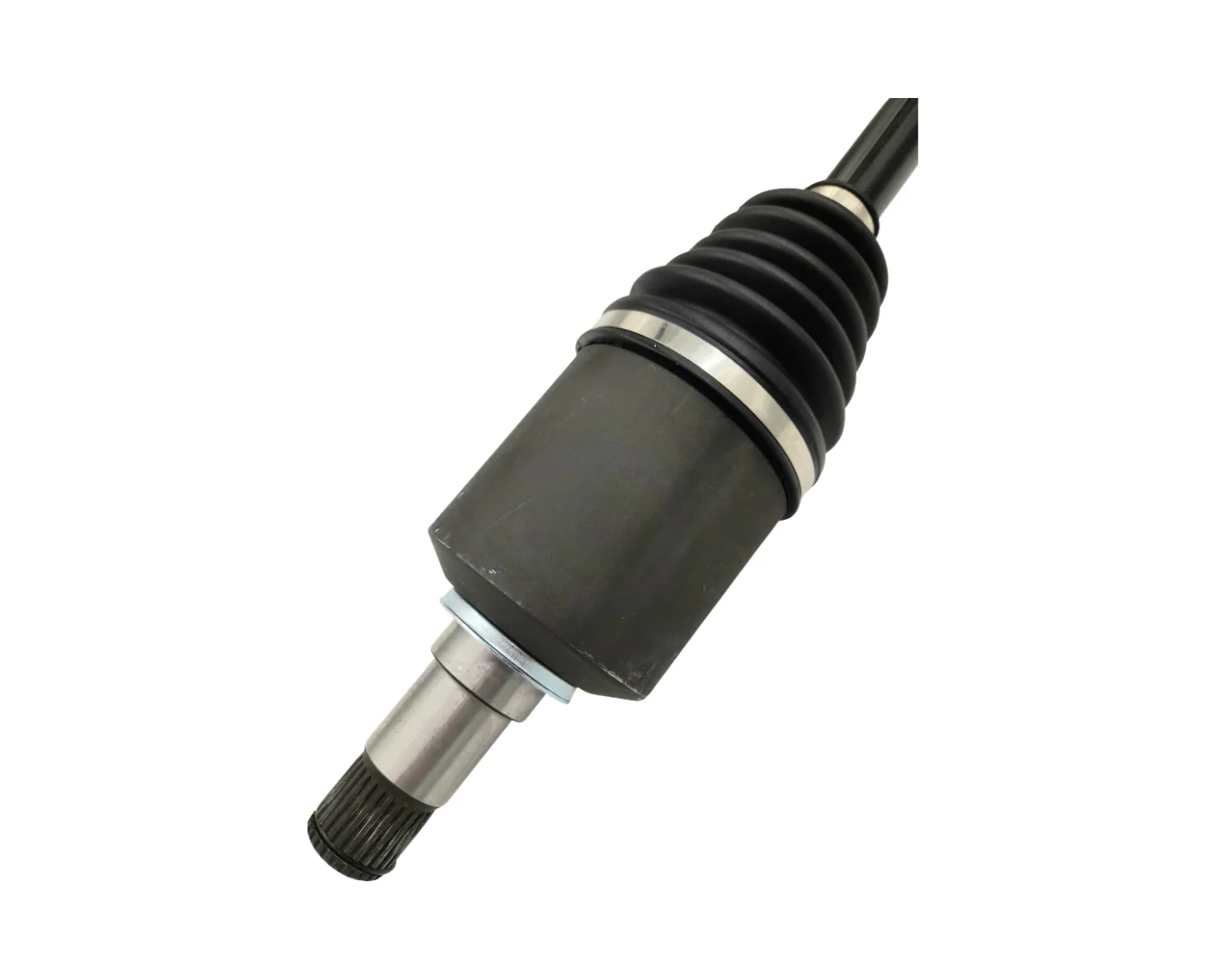

• Inboard Joint Type: Tripod
• Hub Nut: M20 x 1.5




What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
