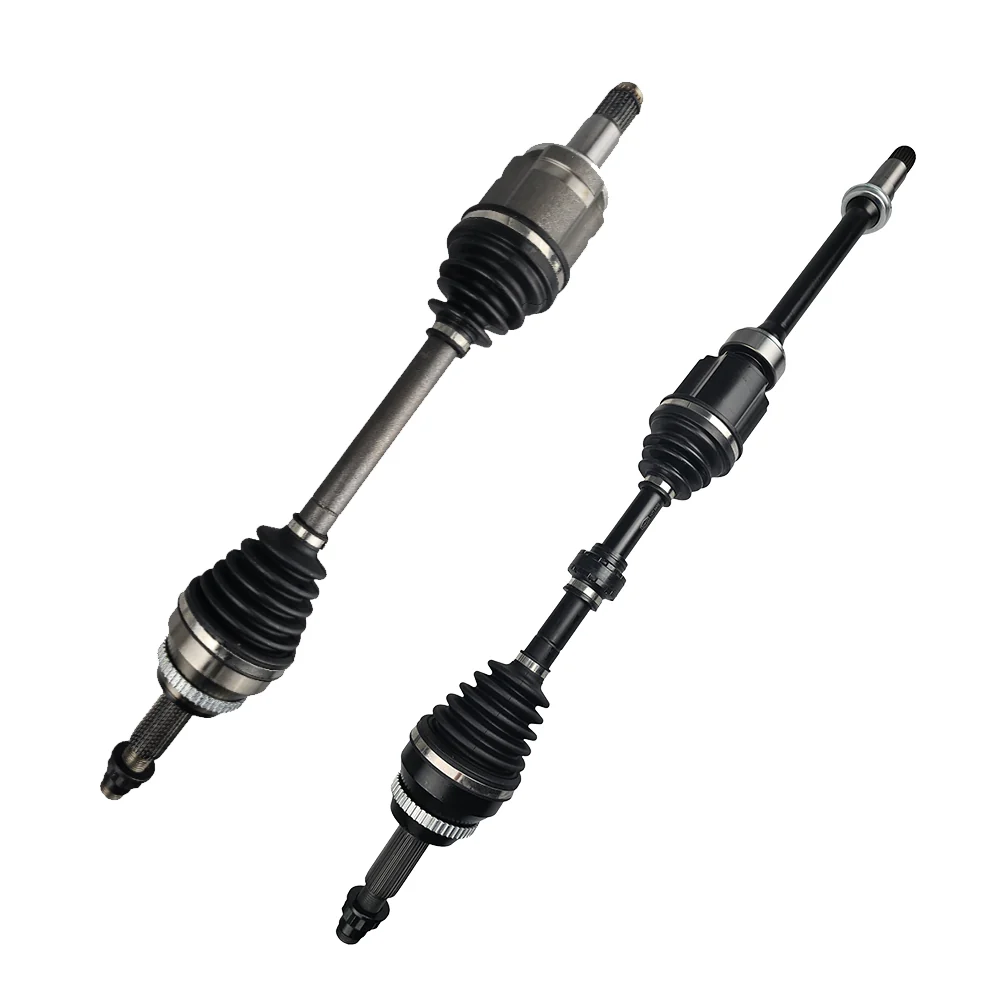

PAIR CV Axle Drive Shaft for Toyota Kluger GSU50 3.5L 2GRFKS 2017-2021 FWD

CV Axle Drive Shaft - Front Left Hand Side Automatic FWD AWD GSU50 Only

Front left hand side, Kluger 2GRFKS engines only. For 2GRFE engines - please see

CVA1471-CVA1472

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Kluger GSU50R 3.5L 2GRFKS Automatic FWD (02/2017 - 03/2021) Left, 2GRFKS engines only
  Includes Sub-models GX, GXL, GXL Black Edition, Grande


Sizing and Specifications

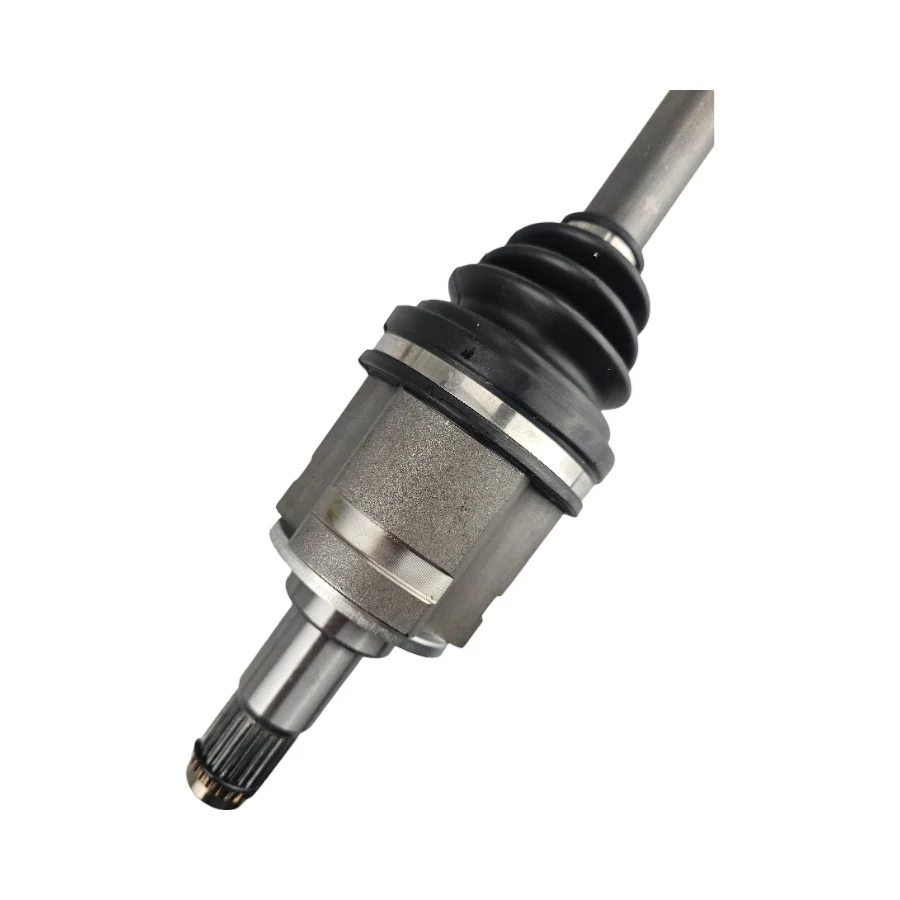

Left CV Drive Shaft

• Length (Compressed): 675mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T

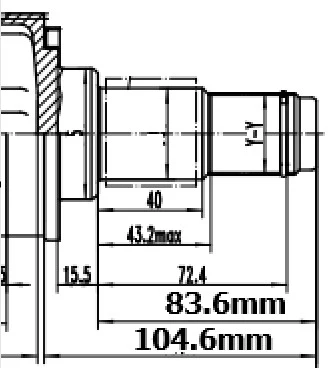

• Inner Stub Length: 104.6mm From Joint Housing
• Inner Stub Length: 83.6mm From Oil Seal Shoulder - Refer Picture
• ABS Ring Teeth: 48
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod

Right CV Drive Shaft

• Length (Compressed): 992mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T
• ABS Ring Teeth: 48
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Bearing Outer Diameter on Extension Shaft: 72mm
• Extension Shaft Length From Inside of Bearing Face: 354mm
• Extension Shaft Bearing Width: 23mm
• Hub Nut Style: M22 x 1.5

What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
