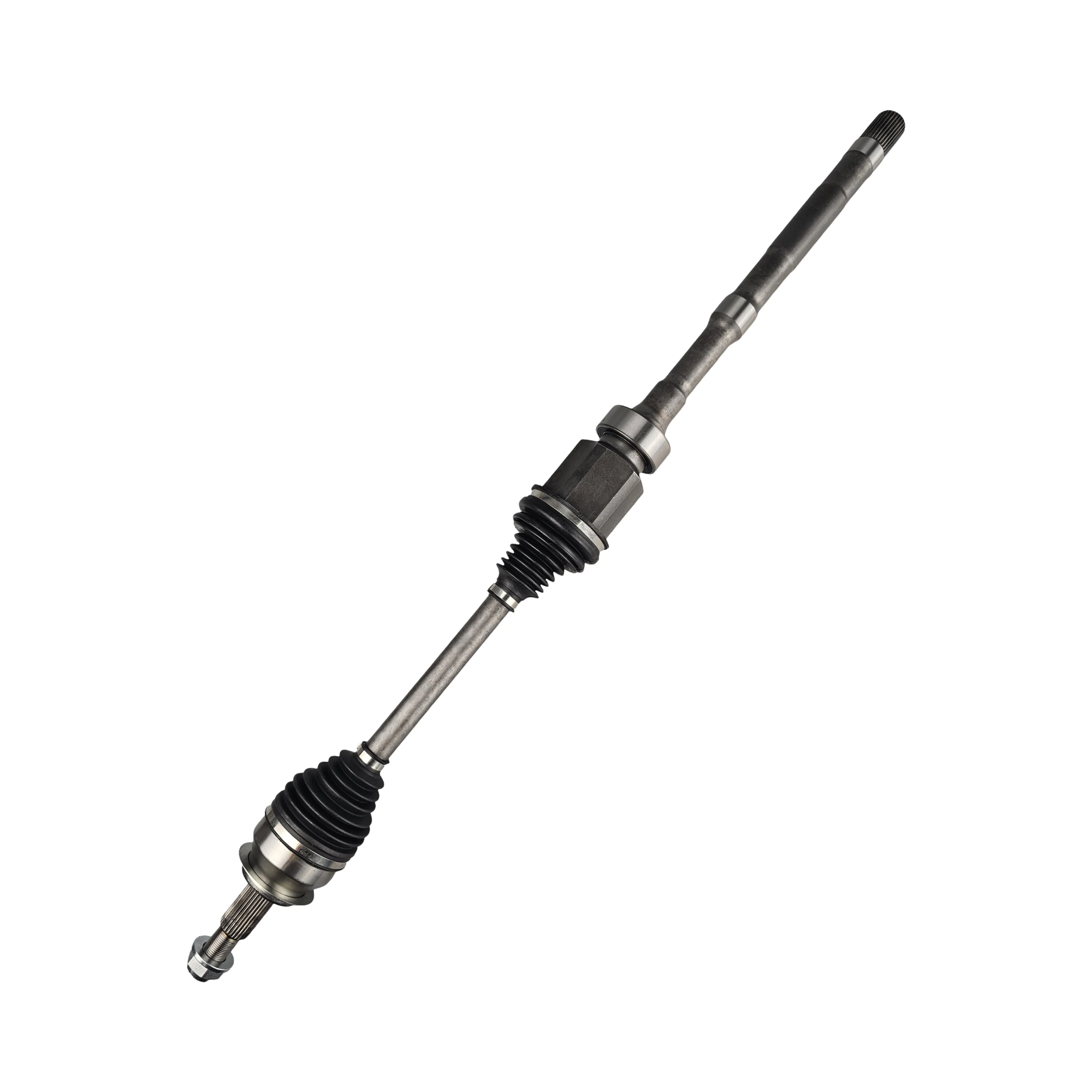

Front Right Drive Shaft for Mazda CX-3 DK DK4WS DK4W7 DK4W8 2015-On

One Brand New Right Front CV Drive Shaft

***Front Right Hand Side ***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Mazda CX-3 DK DK4WS (03/2015~08/2018) 1.5L Diesel S5DPTS AWD
• Mazda CX-3 DK DK4W7 (03/2015~01/2023) 2.0L Petrol PEVPS AWD
• Mazda CX-3 DK DK4W8 (08/2018~2026) 1.8L Diesel 1.8D AWD

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 984 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 31
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Bearing Outer Diameter on Extension Shaft: 70 mm
• Hub Nut: M22 x 1.5

What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
