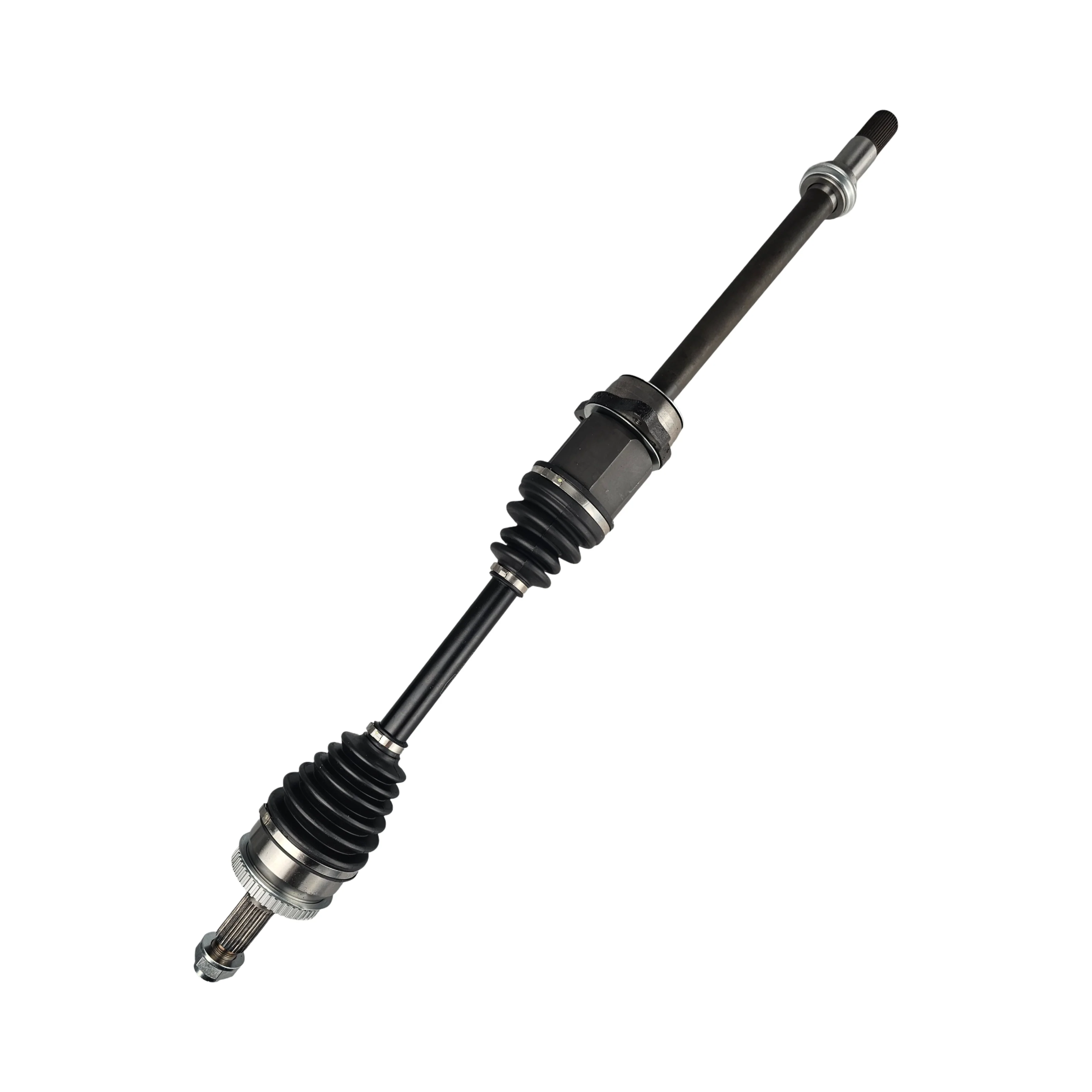

Front Right Drive Shaft for Great Wall H6, Haval H2 1.5L GW4G15 2014-Onwards

One Brand New Right Front CV Drive Shaft

***Right, Front - Please Double Check Specs***

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Great Wall H6 (2014~2016) 1.5L Petrol GW4G15B
• Haval H2 (10/2015~2026) 1.5L Petrol GW4G15

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 598 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 37
• Inboard Joint Type: Tripod

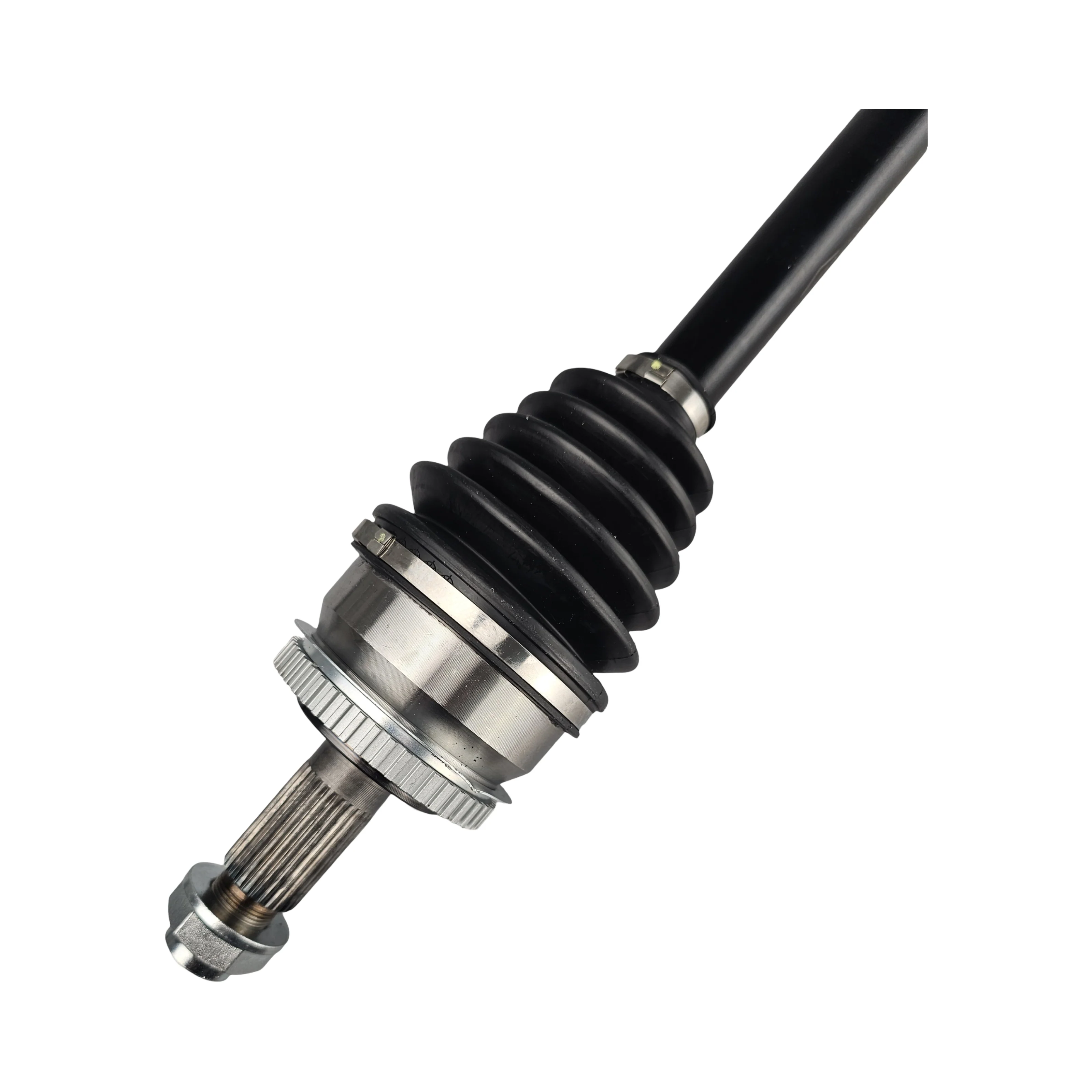

• Outboard Joint Type: Ball

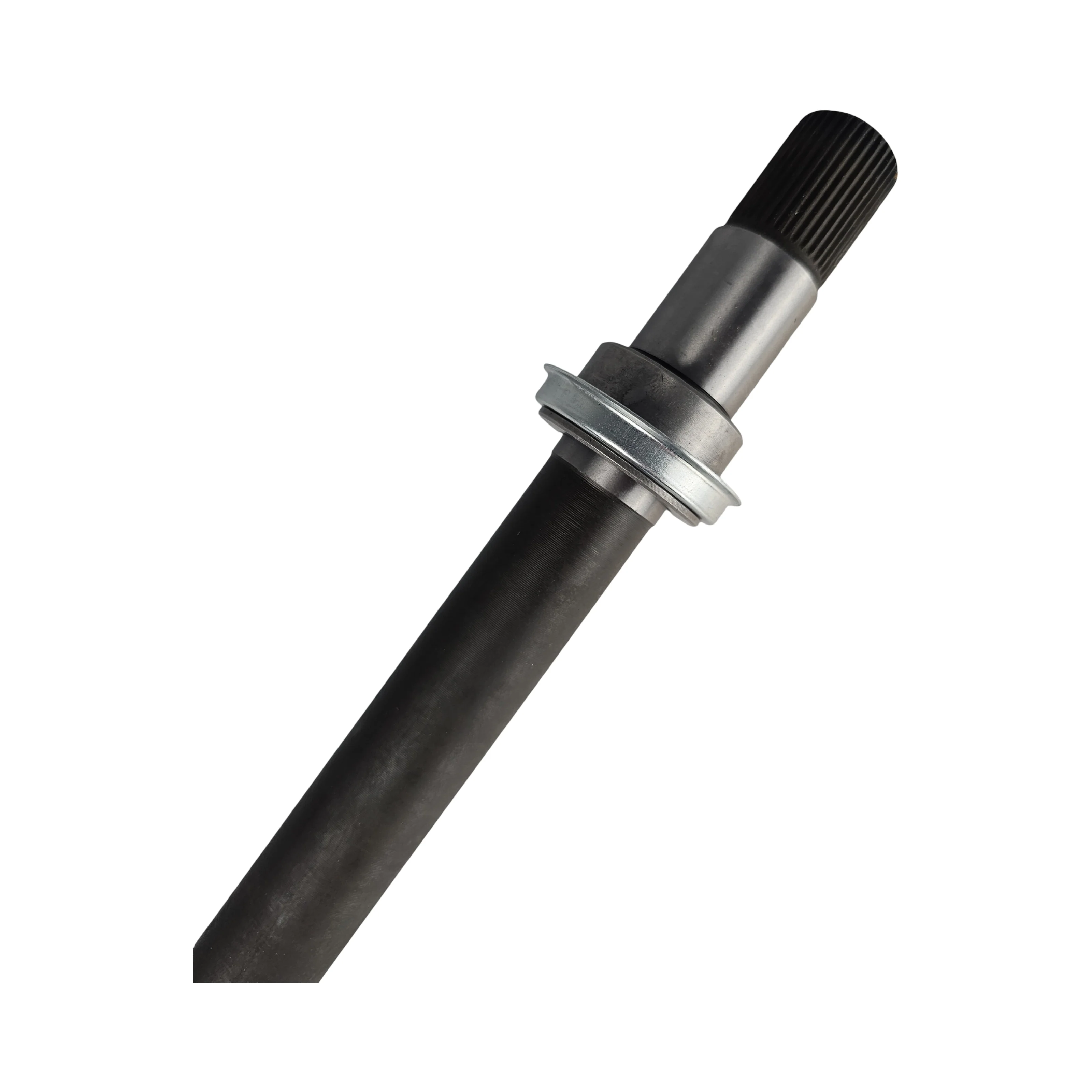

• Extension Shaft Length From Bearing Cradle Flange: 379mm
• Ext Shaft Length From Tin Oil Seal Dust Cover: 86.5mm

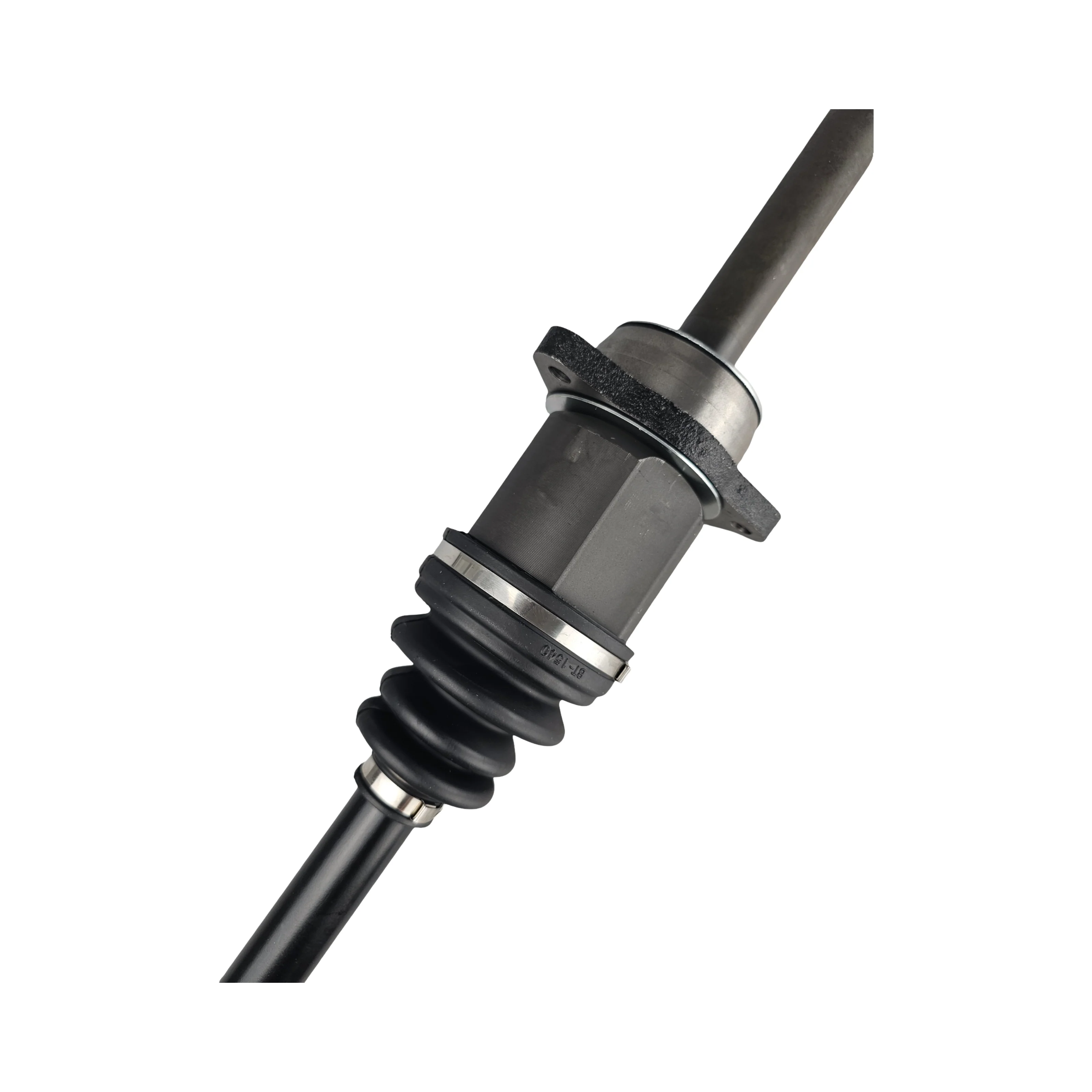

• Extension Shaft Bearing Cradle OD: 80mm
• Extension Shaft Bearing Cradle Bolt Hole PCD: 108.2mm
• Hub Nut: M24 x 1.5

What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
