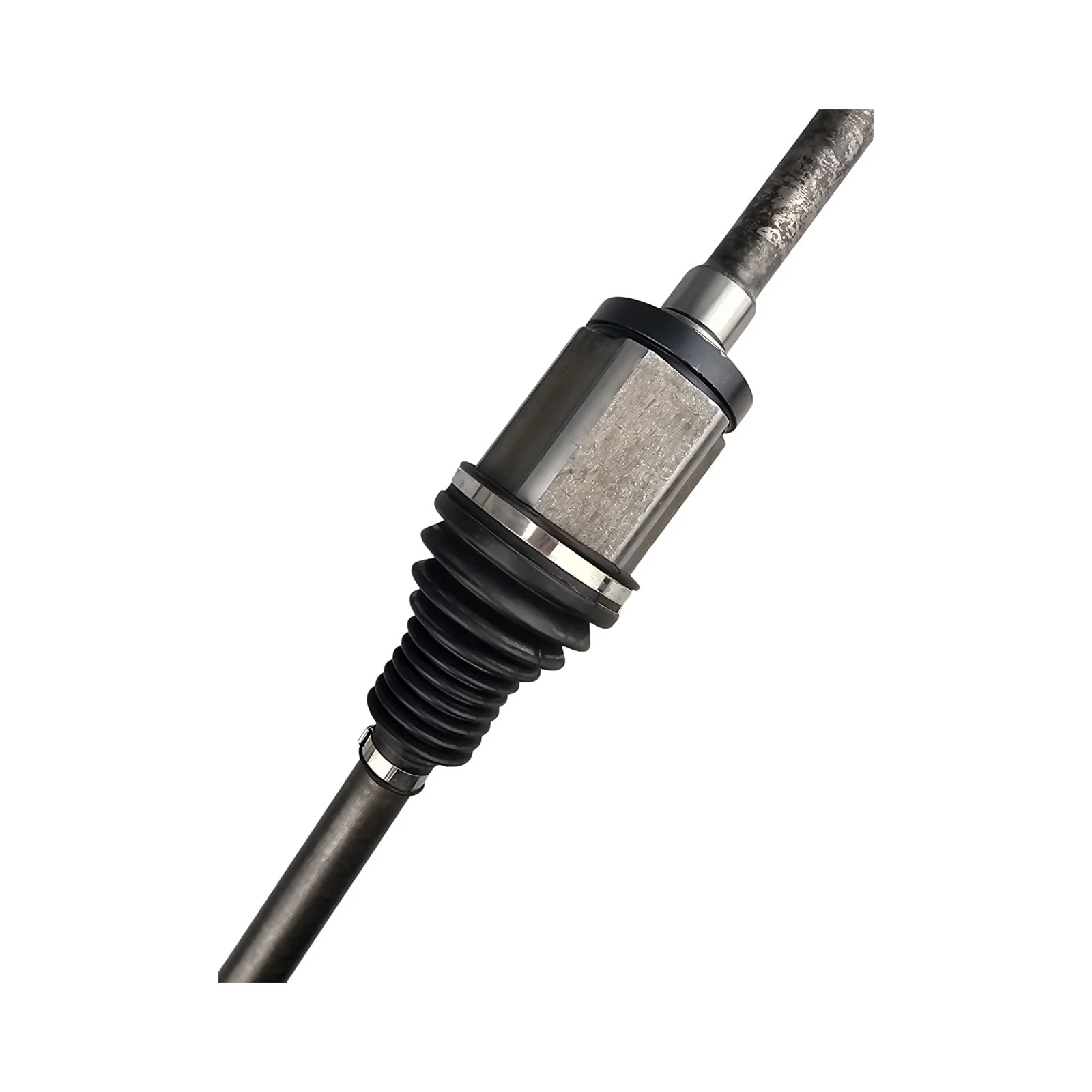

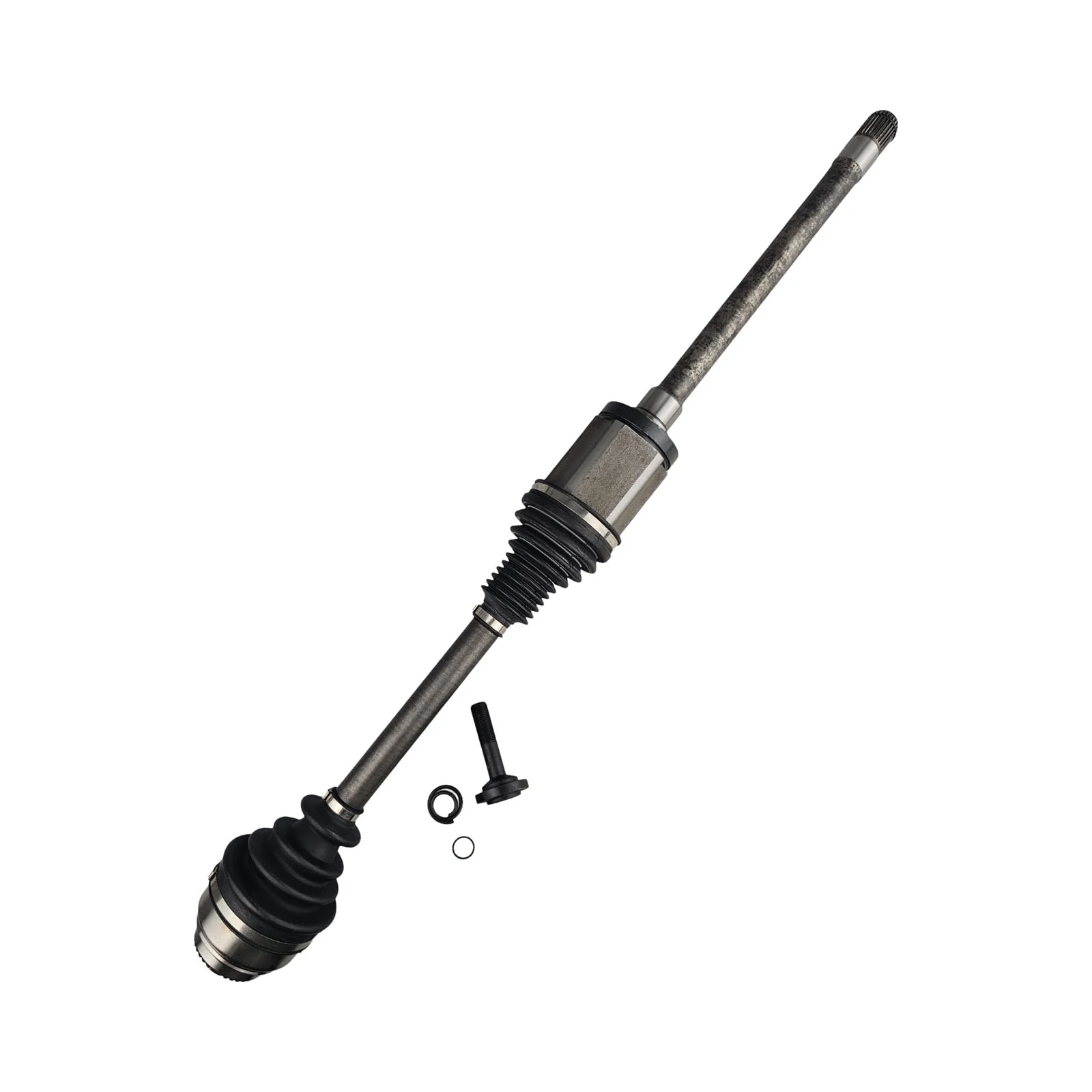

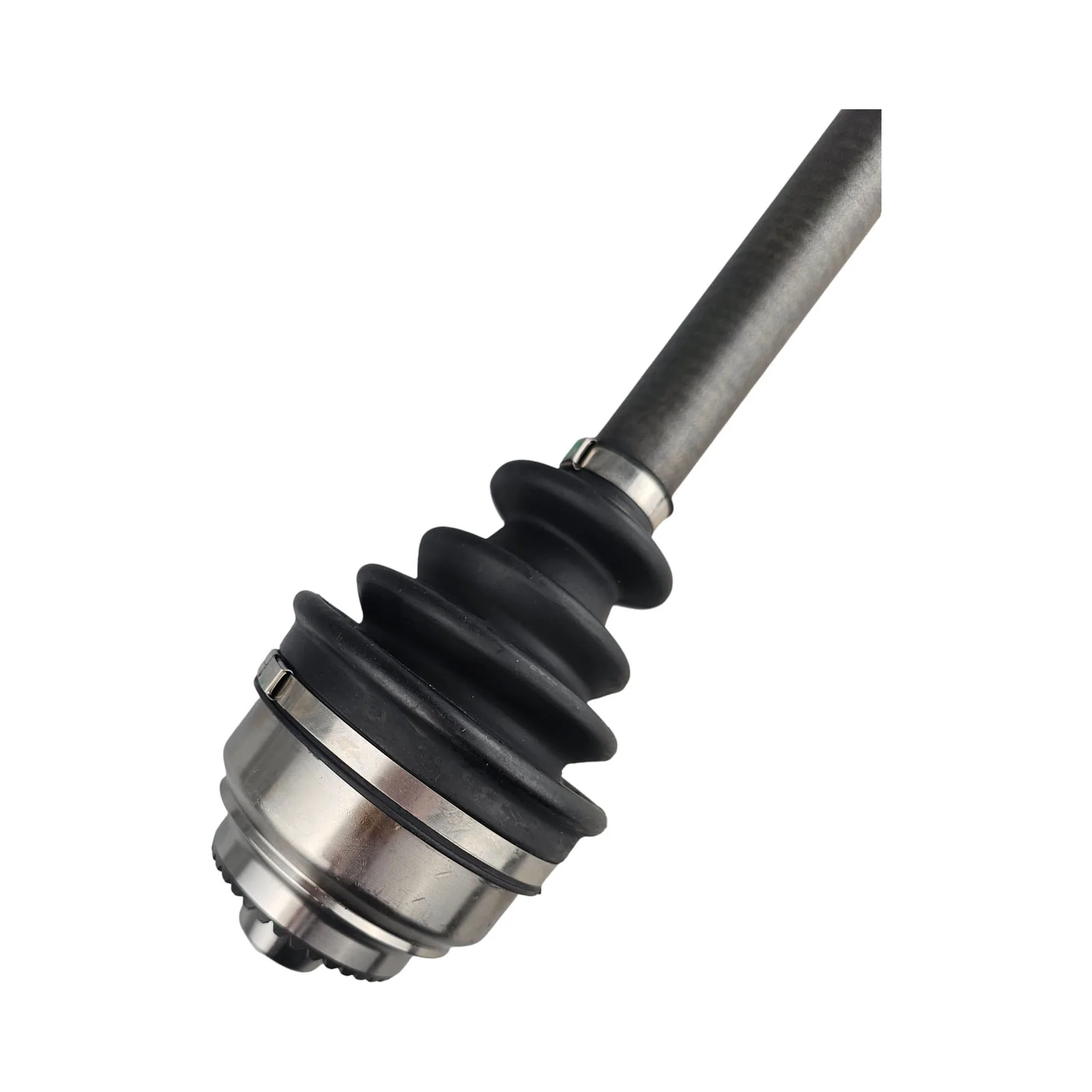

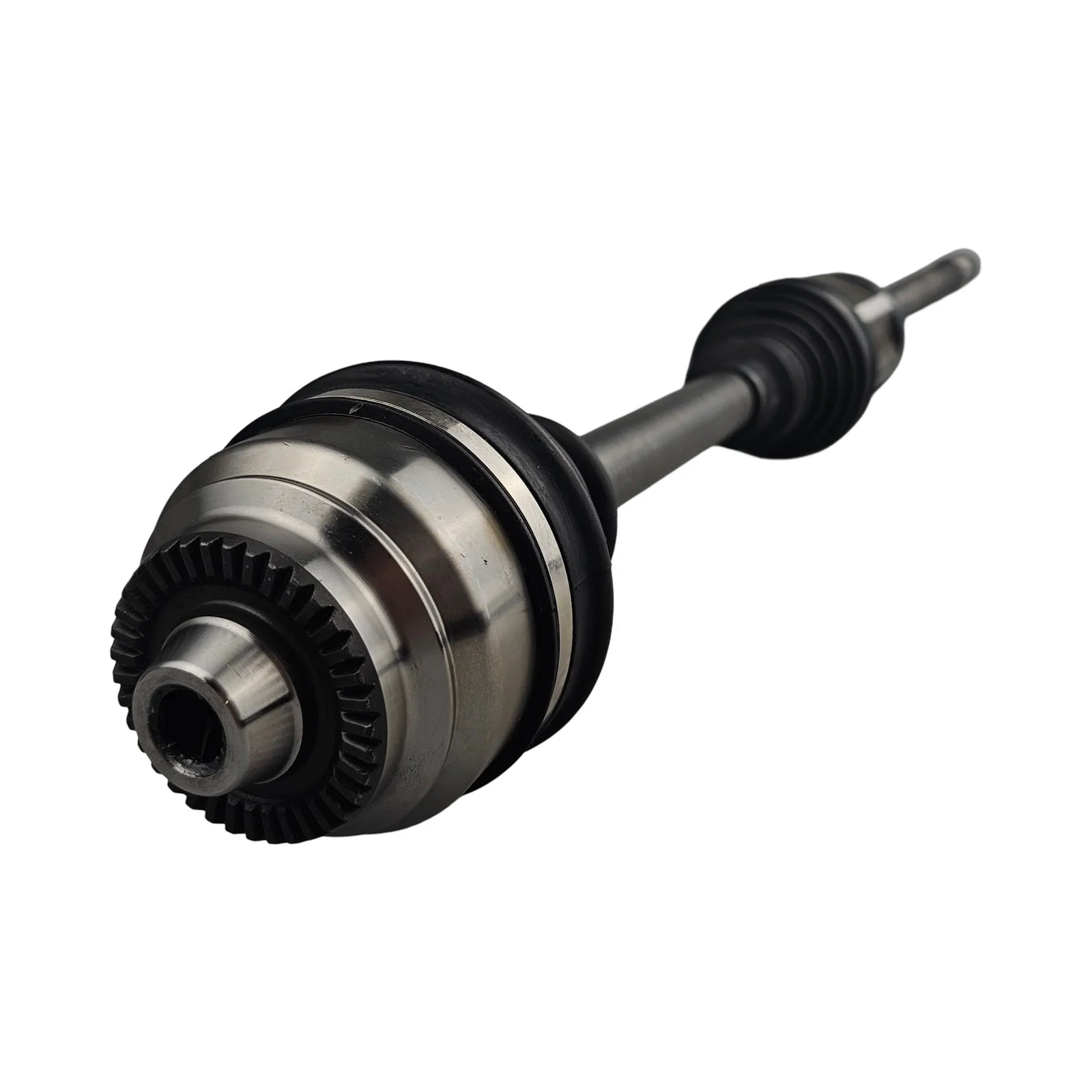

Front Right Drive Shaft for BMW X3 F25, X4 F26 2.0L 3.0L 2011-2018 AWD Automatic

One Brand New Right Front CV Drive Shaft

***Front Right, AWD Automatic Only***

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• BMW X3 xDRIVE 20d F25 (03/2011~11/2017) 2.0L Diesel N47D20C, B47D20A
• BMW X3 xDRIVE 20i F25 (12/2011~11/2017) 2.0L Petrol N20B20B
• BMW X3 xDRIVE 28i F25 (03/2011~01/2014) 2.0L, 3.0L Petrol N20B20A, N52B30
• BMW X3 xDRIVE 30d F25 (05/2011~11/2017) 3.0L Diesel N57D30A
• BMW X3 xDRIVE 35i F25 (03/2011~2013) 3.0L Petrol N55B30M0
• BMW X4 xDRIVE 20d F26 (06/2014~04/2018) 2.0L Diesel B47D20A
• BMW X4 xDRIVE 20i F26 (06/2014~04/2018) 2.0L Petrol N20B20A
• BMW X4 xDRIVE 30d F26 (06/2014~04/2018) 3.0L Diesel N57D30A
• BMW X4 xDRIVE 35d F26 (06/2014~04/2018) 3.0L Diesel N57D30B
• BMW X4 xDRIVE 35i F26 (06/2014~04/2018) 3.0L Petrol N55B30M0

Sizing and Specifications

• Length (Compressed): 881.5 mm
• Spline Count - Outer/Wheel Side: 37
• Spline Count - Inner/Diff Side: 27
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M16 x 1.5
• Extension Shaft Length from Bearing Cradle Flange: 349mm

What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
