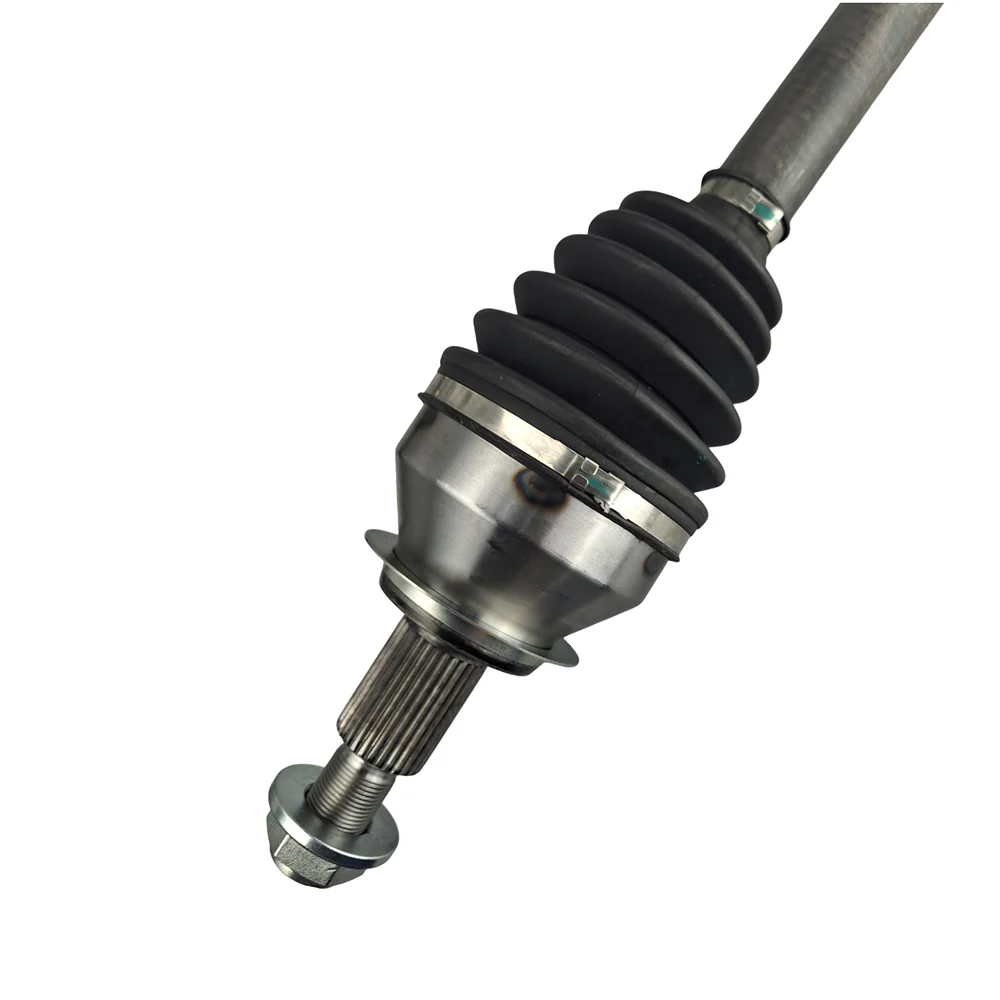

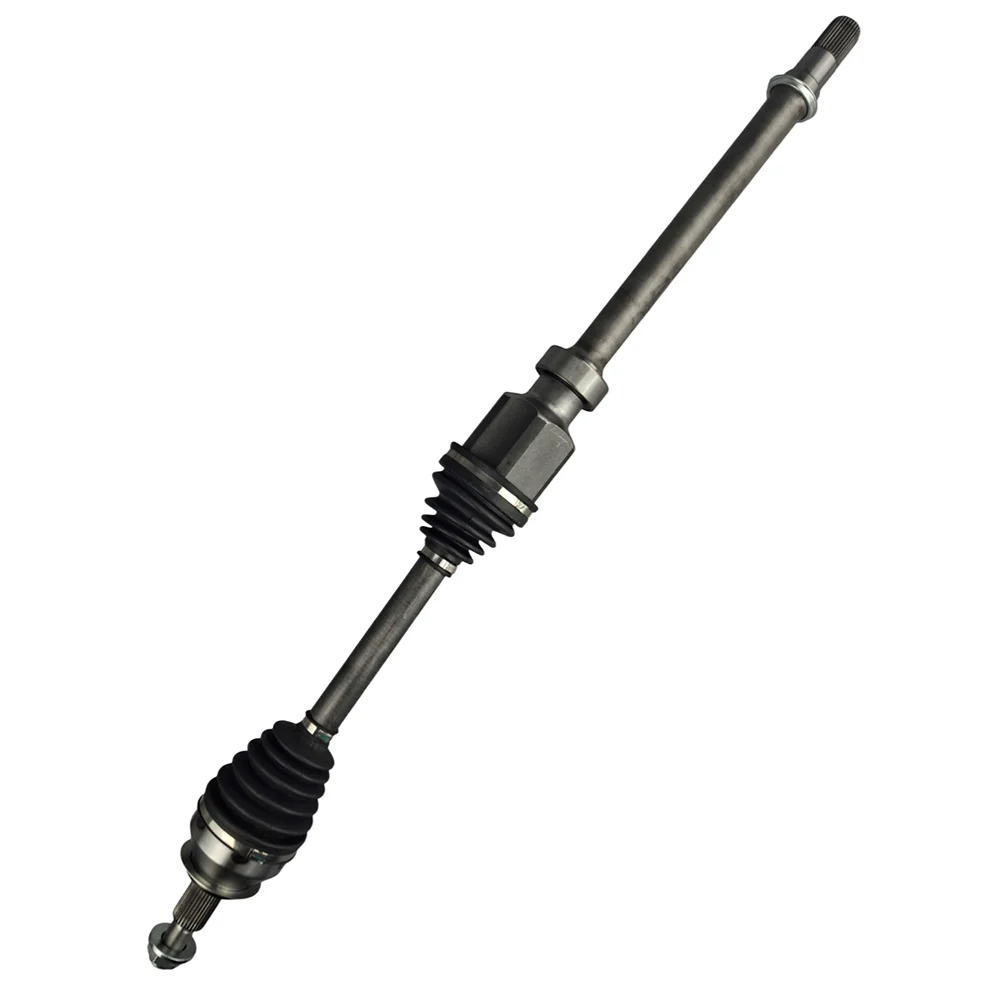

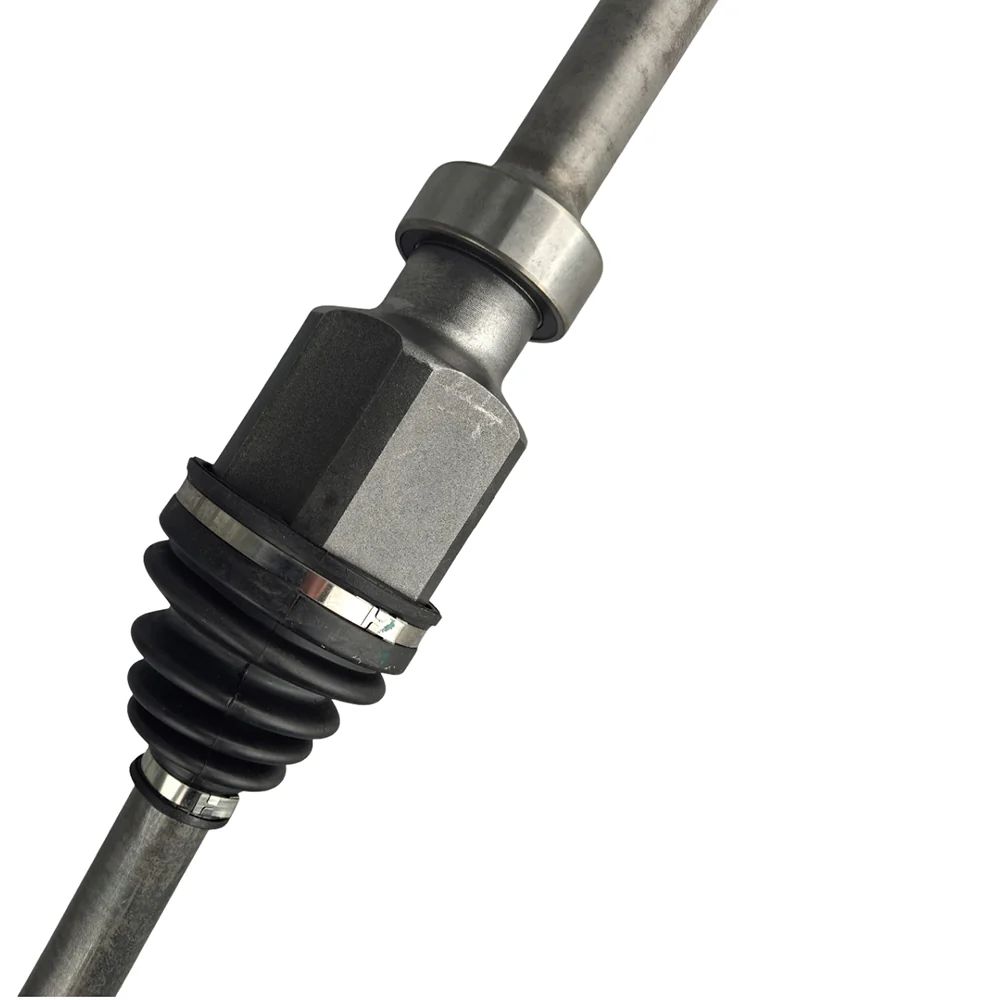

Front Right CV Axle Drive shaft for Mazda CX-9 TC 2.5L FWD 2016 - ON

CV Axle Drive Shaft - Right Front Hand Side
Automatic FWD

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment For:

• Mazda CX-9 TC 2.5L PY 16V DOHC VVT (07/2016 - ON)
  Includes Sub-models AZAMI, AZAMI 100TH ANNIVERSARY, AZAMI LE, GT, GT SP, SPORT, TOURING

Sizing and Specifications

• Length (Compressed): 1058mm
• Spline Count - Outer/Wheel Side: 31T
• Spline Count - Inner/Diff Side: 31T
• Outboard Joint Type: Ball

• Inboard Joint Type: Tripod
• Extension Shaft Length From Outside of Bearing: 442mm
• Bearing Outer Diameter on Extension Shaft: 70mm
• Bearing Width: 25mm
• Ext Shaft Length Inside of Dust Cover to Shaft End: 87mm
• Drive Shaft Seal - Inner Joint: 40mm ID
• Hub Nut Style: M22 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
