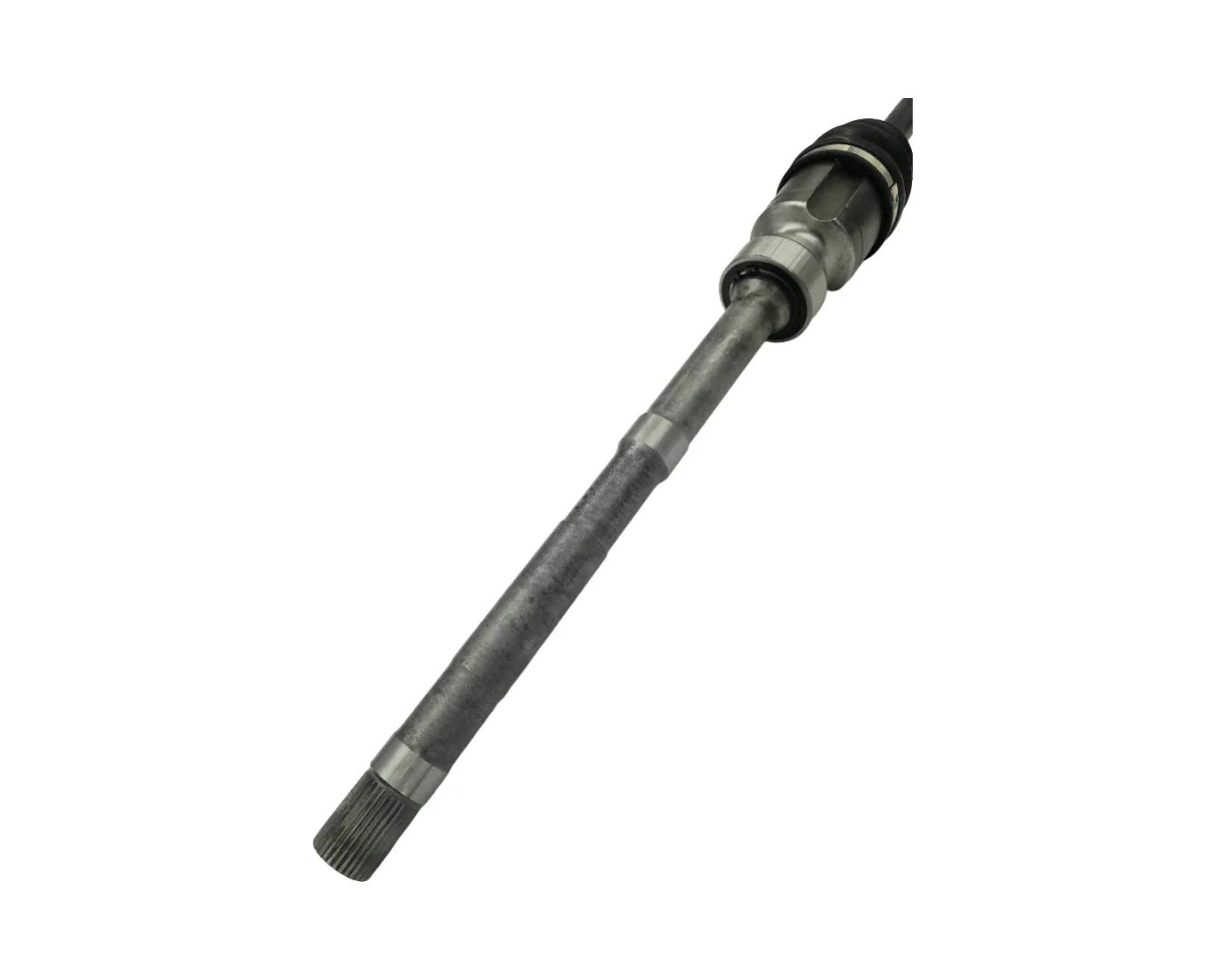

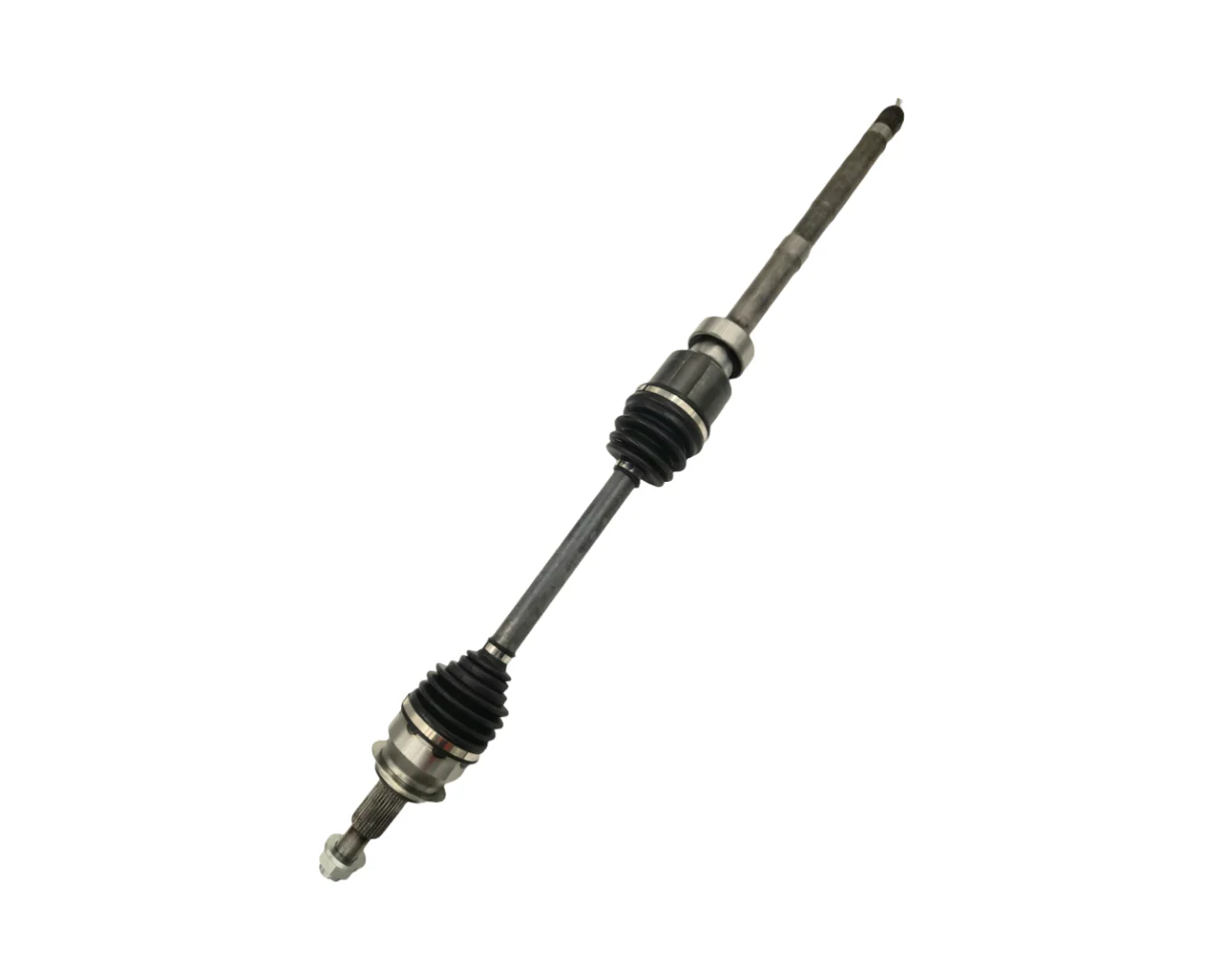

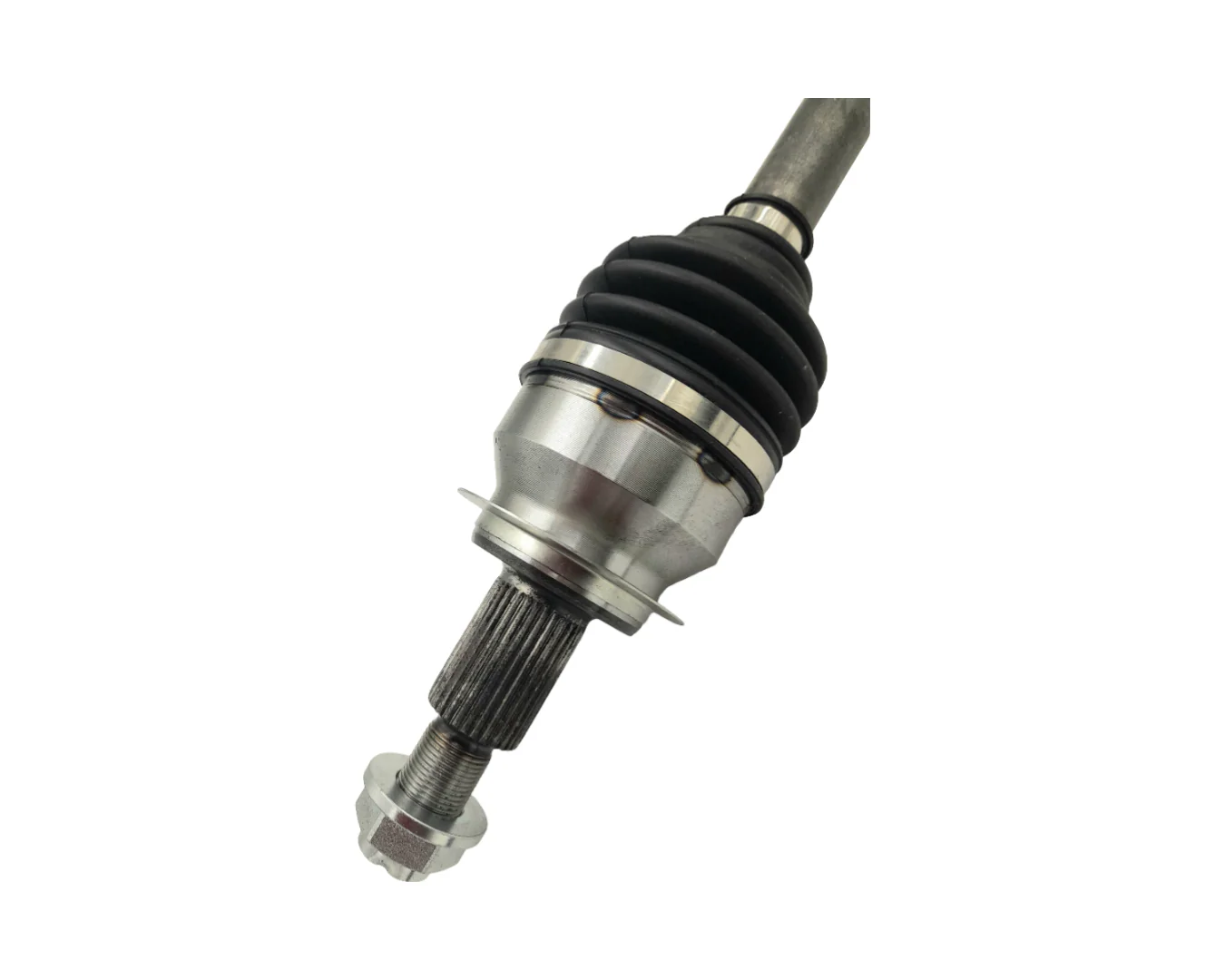

Front Right CV Axle Drive Shaft For Mazda CX-5 KF Mazda 6 GL 2017-On Automatic

CV Axle Drive Shaft - Front Right Hand Side Automatic Transmission FWD AWD

Check specifications closely for vehicles with & without cylinder shut down - engine management

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mazda6 GL, 600 2.5L PY-VPS 16V DOHC VVT Turbo and Non-Turbo FWD (06/2018 - Onwards)
  Includes Sub-models: G25 Sport, G25 Touring, Sport, Touring, 20th Anniversary, Atenza, G35, GT, GT SP & Takami
• Mazda CX 5 KF 2.5L PY I416V DOHC VVT Turbo and Non-Turbo AWD (03/2017 - Onwards) Check specifications closely for vehicles with & without cylinder shut down - engine management
  Includes Sub-models: Activ, Akera, G25 Maxx Sport, G25 Touring, GSX, GT SP, Limited, LTD, Maxx, Turbo, Sport, Touring, 100th Anniversary, Atenza, G35, GT, GT SP & Takami
• Mazda CX 5 KF 2.2L SH-VPTR I4 16V DOHC VVT Twin Turbo AWD (05/2018 - 11/2023) Check specifications closely for vehicles with & without cylinder shut down - engine management
  Includes Sub-models: Activ, Akera, G25 Maxx Sport, G25 Touring, GSX, GT SP, Limited, LTD, Maxx, Turbo, Sport, Touring, 100th Anniversary, Atenza, G35, GT, GT SP & Takami

Sizing and Specifications

• Length (Compressed): 1023mm
• Spline Count Outer/Wheel Side: 31
• Spline Count Inner/Diff Side: 31
• Hub Nut Style: M22 x 1.5
• Oil Seal ID - Wheel/Outer Joint: 59mm
• Bearing Outer Diameter on Extension Shaft: 70mm
• Extension Shaft Bearing Width: 25mm
• Extension Shaft Length From Outside of Bearing: 430mm




What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
