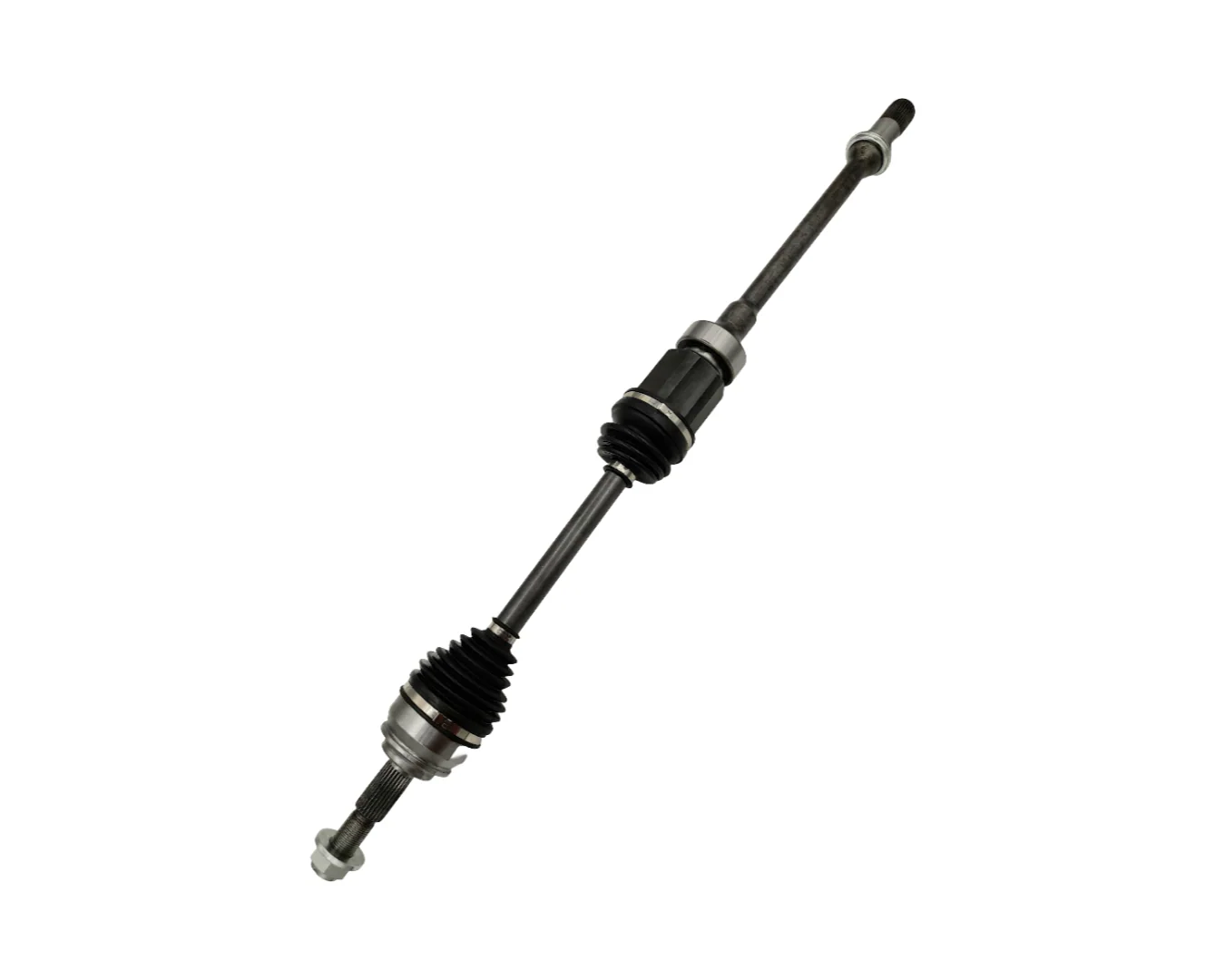

Front Right CV Axle Drive Shaft For Mazda Demio DJ FWD AWD Automatic 2014-2019

CV Axle Drive Shaft - Front Right Hand Side Automatic Transmission FWD AWD

Automatic transmission only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mazda Demio DJ DJ5FS DJ5AS 1.5L P5-VPS I4 16V DPHC VVT FWD AWD (10/2014 - 07/2019) Automatic Transmission Only
  Sub-Models Include XD, XD Touring

Sizing and Specifications

• Length (Compressed):  956mm
• Spline Count Outer/Wheel Side: 26 Teeth
• Spline Count Inner/Diff Side: 31 Teeth
• Extension Shaft Length From Outside of Bearing: 415mm
• Bearing Outer Diameter on Extension Shaft: 70mm
• Extension Shaft Bearing Width: 25mm



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
