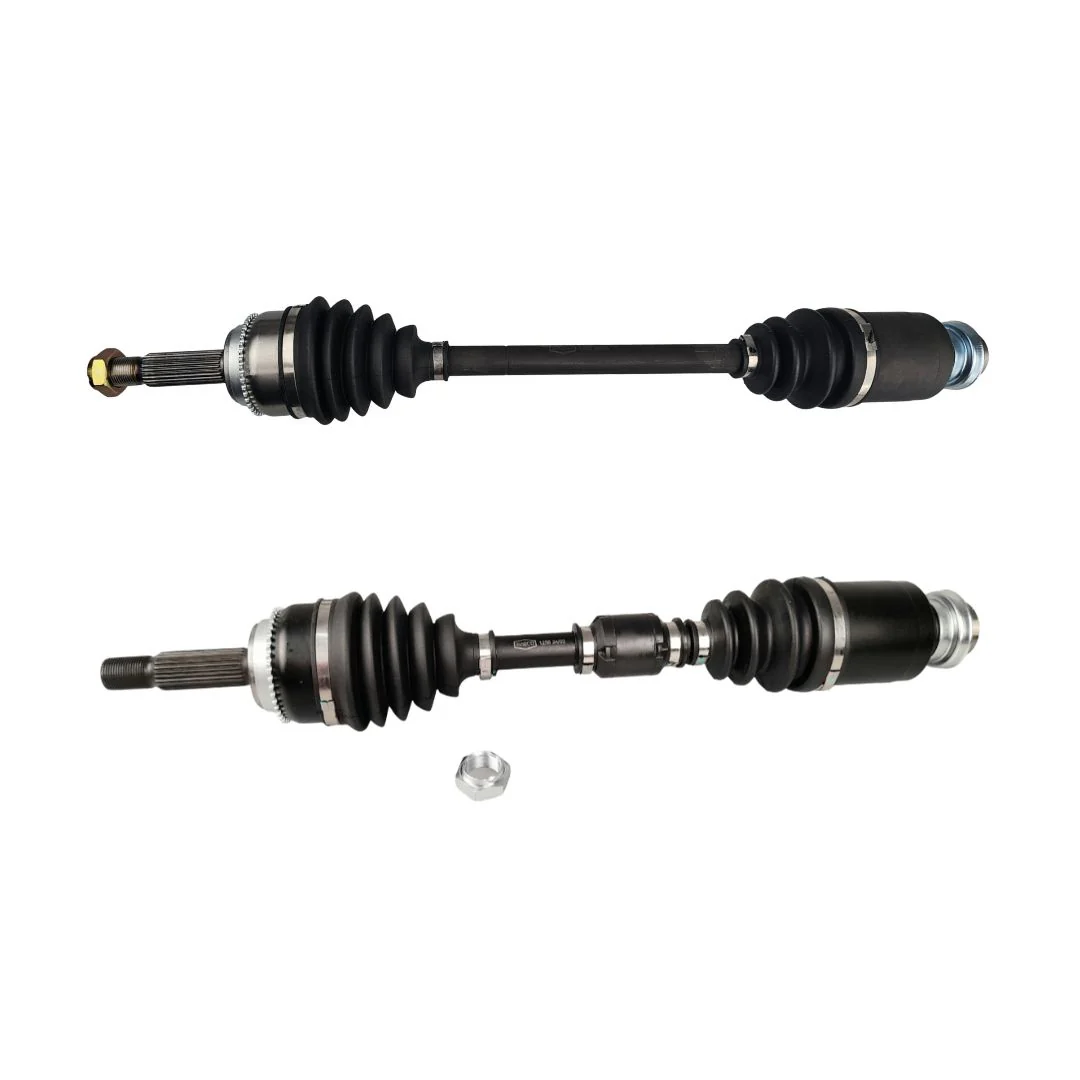

Front RH LH CV Drive Shaft For Mitsubishi Outlander ZF CU5W ZE CU4W 2.4L 4WD

CV Axle Drive Shaft - Front Right and Left Hand Side Automatic 4WD

Pair Kit

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mitsubishi Outlander ZF CU5W 2.4L 4G69 SOHC 4WD AT (06/2004 - 09/2006)
  Includes Sub-models LS, XLS, VR, VRX
• Mitsubishi Outlander ZE CU4W 2.4L 4G64 SOHC 4WD AT (12/2002 - 05/2004)
  Includes Sub-models LS, XLS
• Mitsubishi Airtrek ZE CU4W 2.4L 4G64 SOHC 4WD AT (12/2002 - 05/2004)
  Includes Sub-models


Sizing and Specifications

Right Hand Side

• Length (Compressed): 660.2mm
• Spline Count - Outer/Wheel Side: 25
• Spline Count - Inner/Diff Side: 26

Left Hand Side

• Length (Compressed): 566.7mm
• Spline Count - Outer/Wheel Side: 25
• Spline Count - Inner/Diff Side: 24+2

What's Included

• 2 x CV Shafts

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
