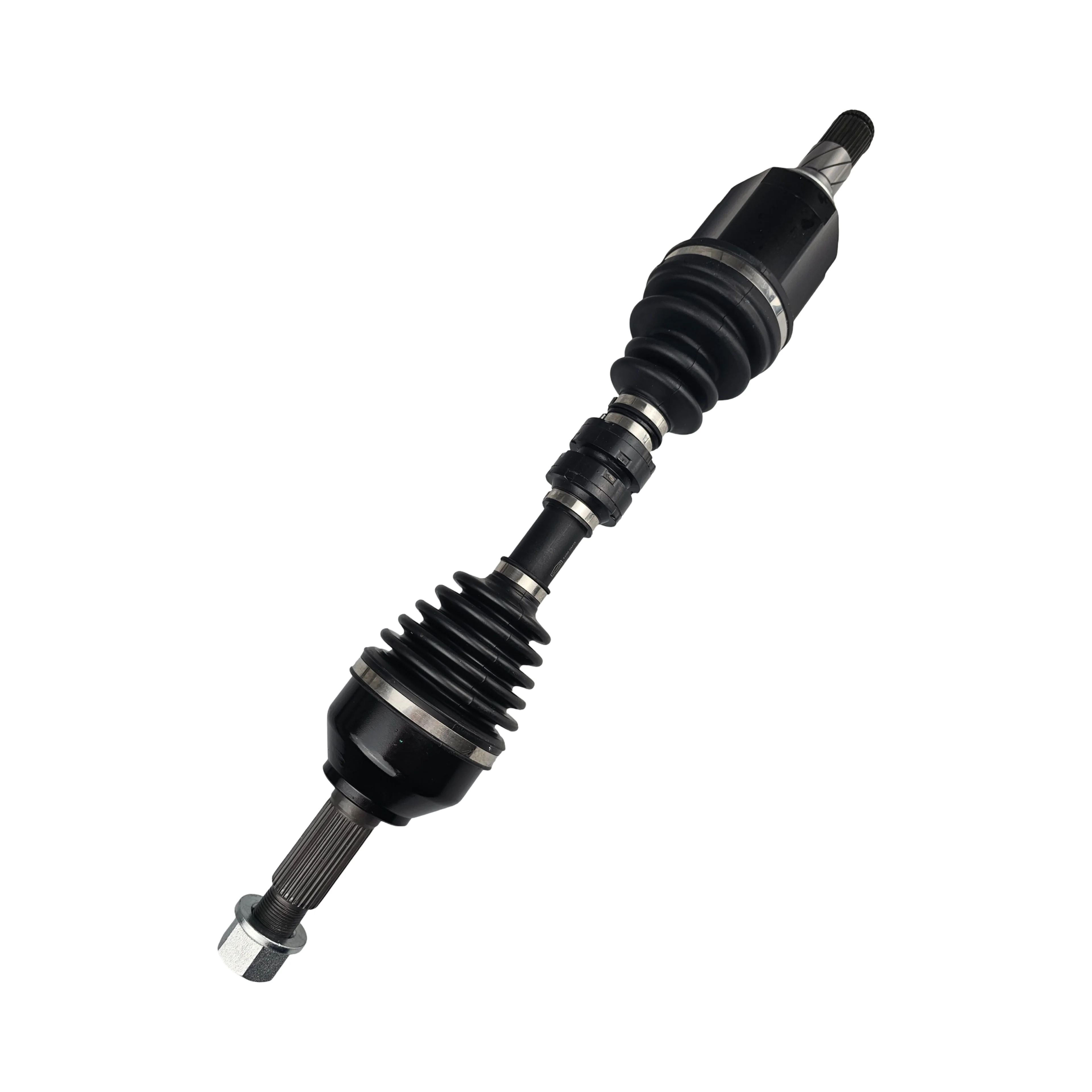

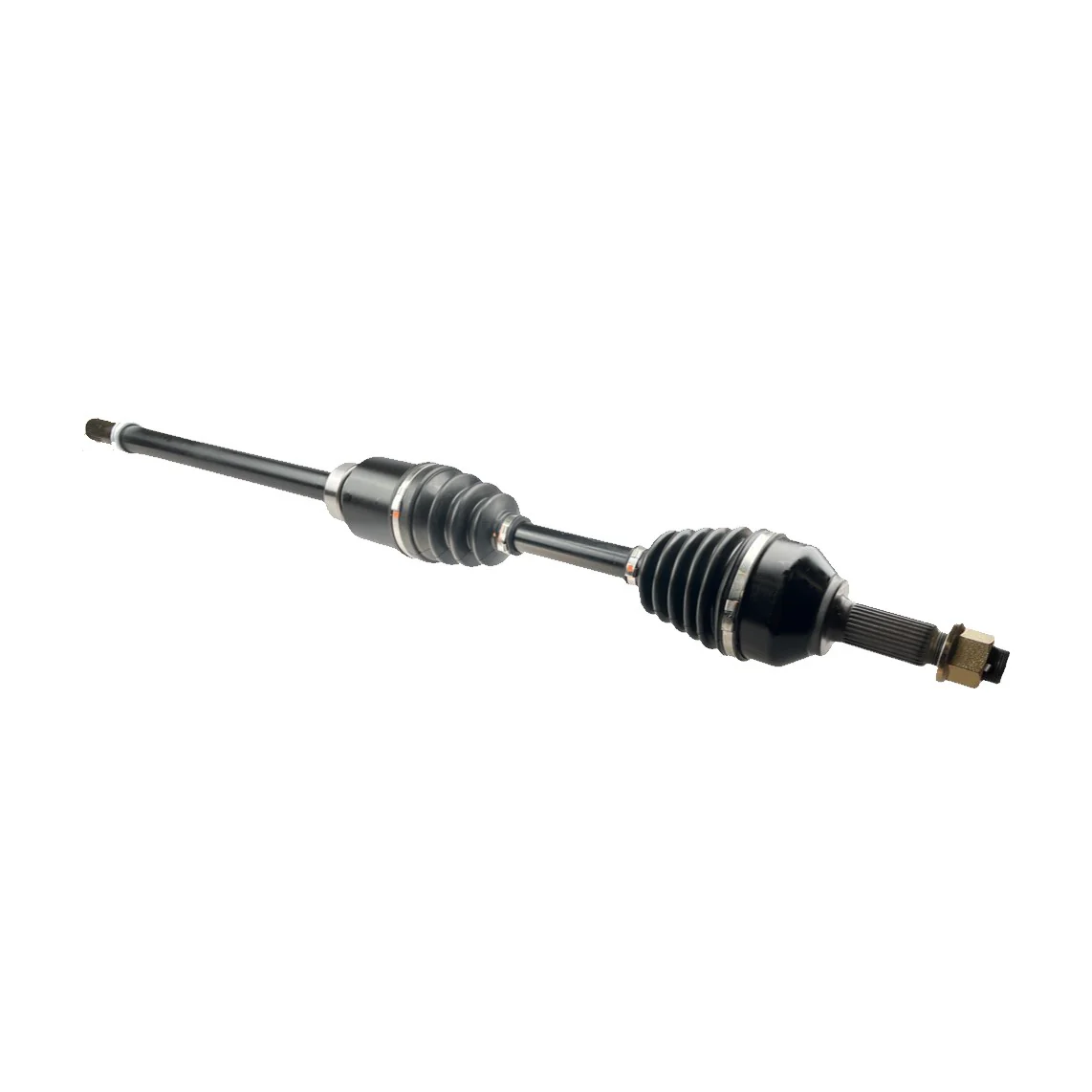

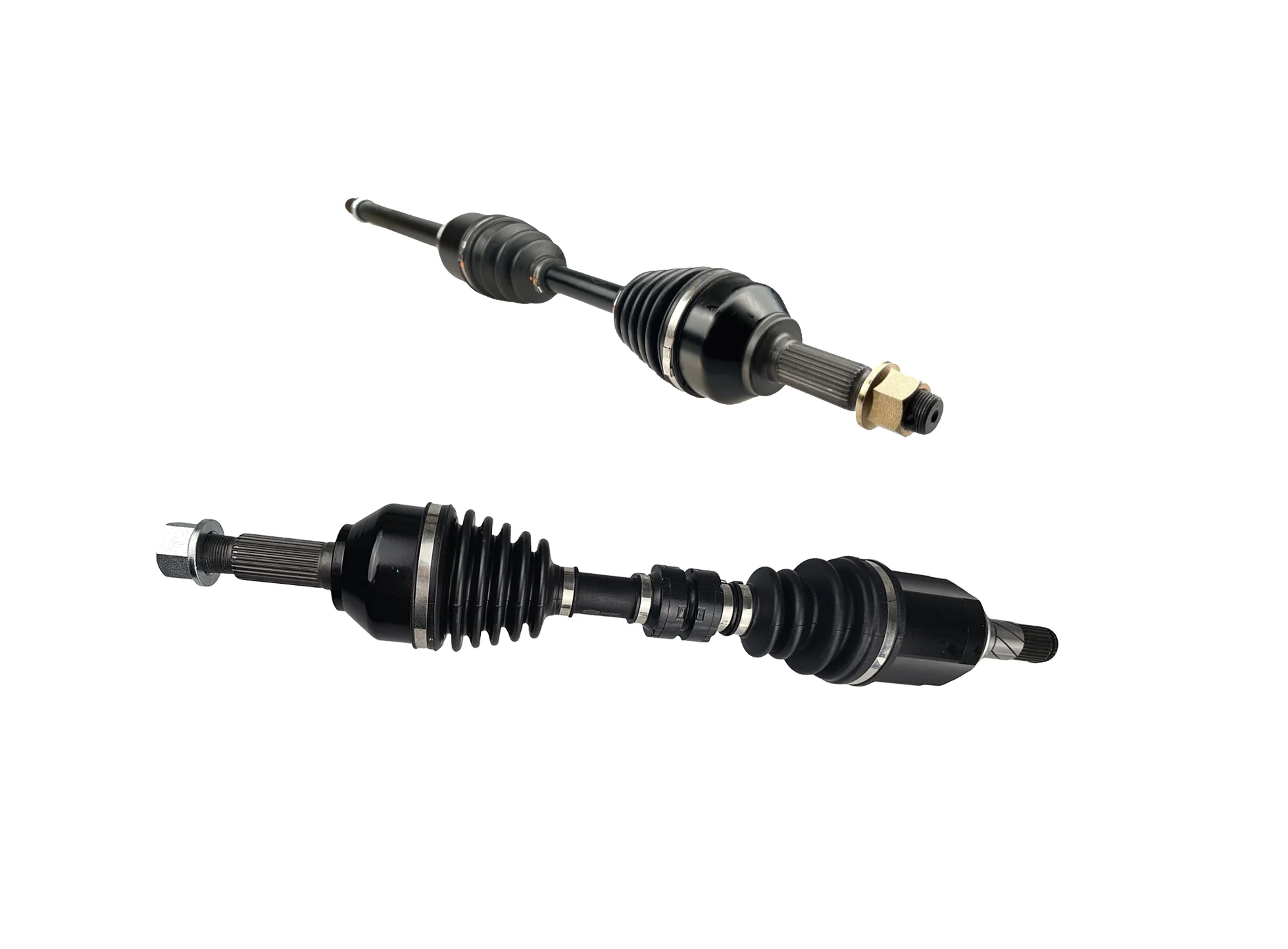

CV Axle Drive Shaft - Pair Left and Right Hand Side Manual 4WD

Pair kit, manual transmission only

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Nissan X-Trail T31 TANT31 2.5L QR25DE MT (10/2007 - 02/2014) Manual Transmission Only
  Including Sub-models ST, STL, Ti, Adventure, Adventure SE



Sizing and Specifications



Left Hand Side

•  Length (Compressed): 605mm
• Spline Count Outer/Wheel Side: 29
• Spline Count Inner/Diff Side: 29

Right Hand Side

• Compressed Length: 1020.0mm
• Inboard Spline Count: 29
• Outboard Spline Count: 29
• Inboard and Outboard CV Joint Type: Ball Bearing
• Nut Size: M24 x 1.5 (Included)



What's Included  )

• 2 x CV Shafts



 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
