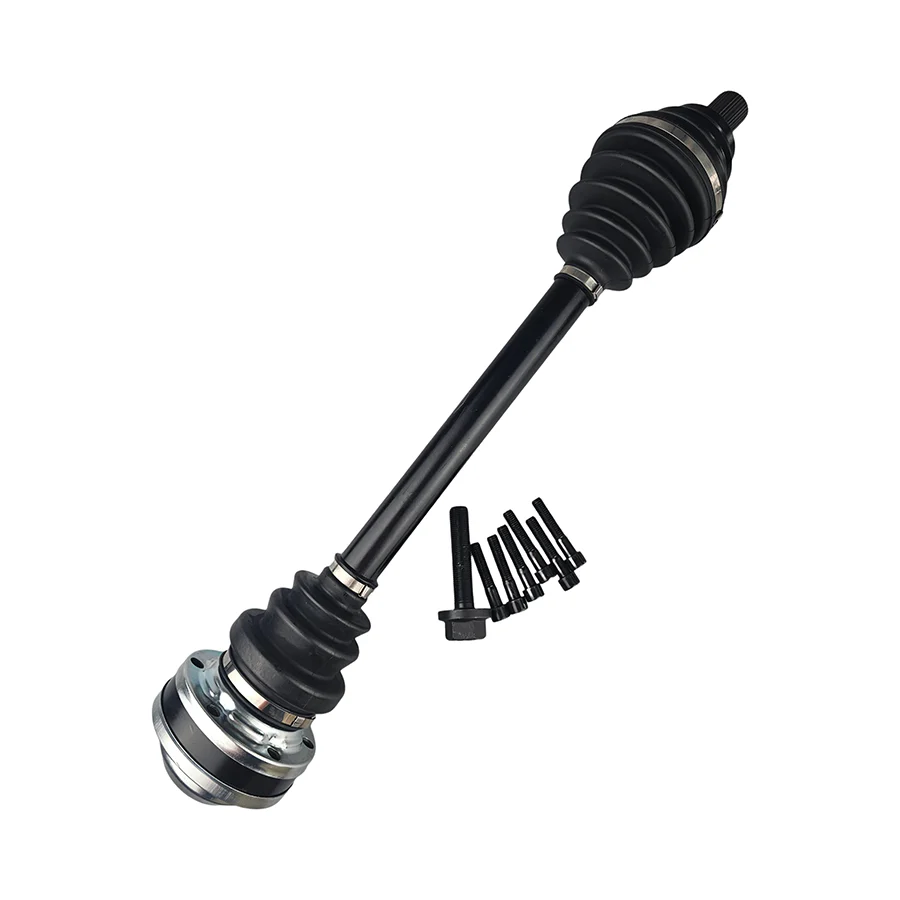

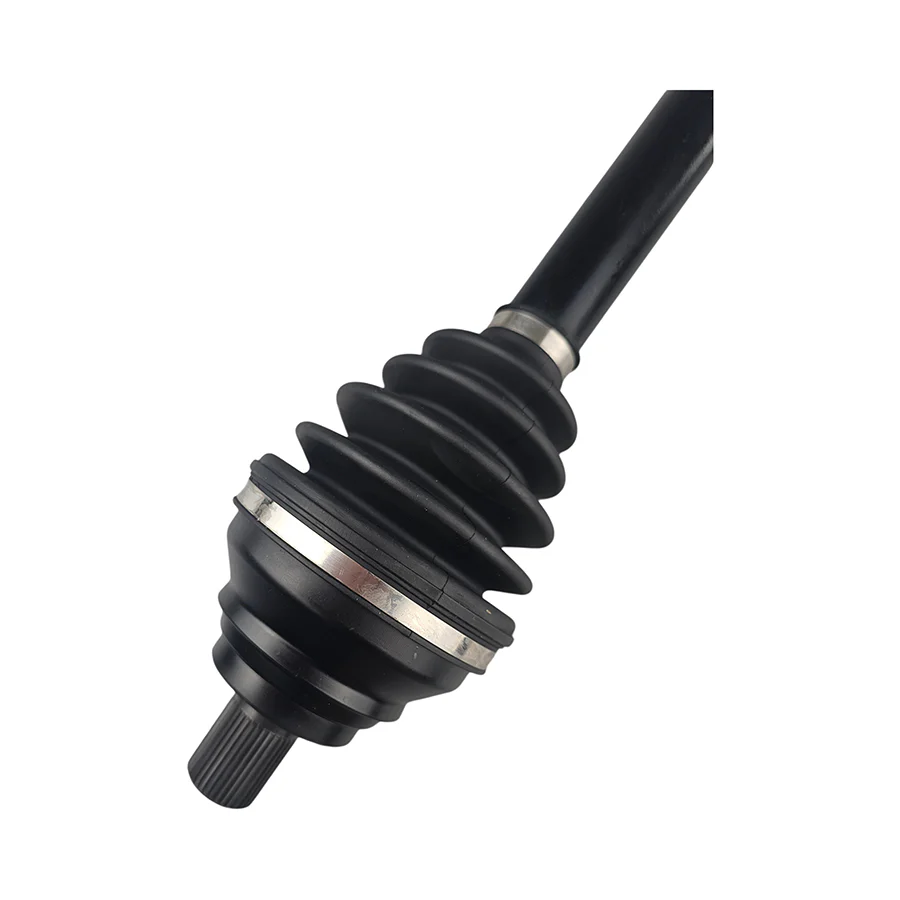

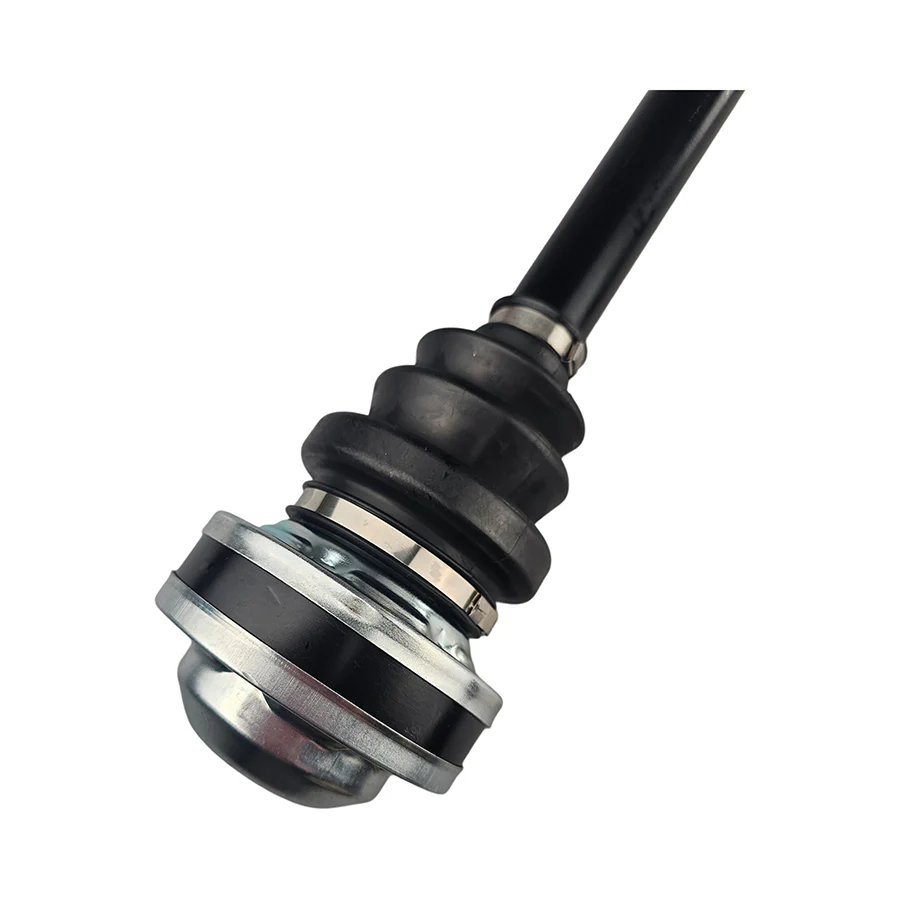

Front Right CV Axle Drive Shaft for Audi A3 8P, Q3 8U | Skoda Octavia 1Z, Yeti 5L | Volkswagen VW Golf MK5, Passat B6, B7 4WD AWD MAN CVT

CV Axle Drive Shaft - Front Right Hand Side AWD 4WD MAN DCT

**Notes: Front right, for 4WD/AWD models**

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Audi A3 8P 2.0L AWD (10/2005 - 01/2009) 6 Speed
  Sub-Models Include SPORTBACK 2.0 TFSI QUATTRO, SPORTBACK QUATTRO
• Audi A3 8P 3.2L AWD (2004 - 2005)
  Sub-Models Include QUATTRO, 3.2 QUATTRO, SPORTBACK QUATTRO
• Audi Q3 8U 2.0L AWD (04/2012 - 05/2015) Manual, 6 Speed
  Sub-Models Include 2.0 TFSI QUATTRO
• Skoda Octavia 1Z 1.9L 4WD (10/2007 - 02/2009) 6 Speed
  Sub-Models Include AMBIENTE 4X4
• Skoda Octavia 1Z 2.0L 4WD (2006 - 08/2010) Manual, 6 Speed
  Sub-Models Include SCOUT 2.0 TDI
• Skoda Octavia 1Z 2.0L 4WD (05/2010 - 01/2013)
  Sub-Models Include SCOUT 103 TDI, SCOUT 103 TDI PREMIUM

• Skoda Yeti 5L 1.8L AWD (03/2012 - 02/2014) Manual, 6 Speed
  Sub-Models Include 112 TSI
• Skoda Yeti 5L 2.0L AWD (2010 -07/2017)
  Sub-Models Include 103 TDI, OUTDOOR 103 TDI
• Volkswagen Golf MK5 3.2L AWD (07/2006 - 03/2010)
  Sub-Models Include R32

• Volkswagen Passat B6, B7  3.2L AWD (03/2006 - 03/2011)
  Sub-Models Include 3.2 V6 FSI, V6 FSI HIGHLINE


Sizing and Specifications

• Length (Compressed): 601mm
• Spline Count - Outer/Wheel Side: 36T
• Mounting Bolt Centre to Centre: 94mm
• Mounting Bolt Hole Diameter: 10.5mm
• Inner Joint Outside Flange Diameter: 108mm
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball
• Hub Bolt Style: M16 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
