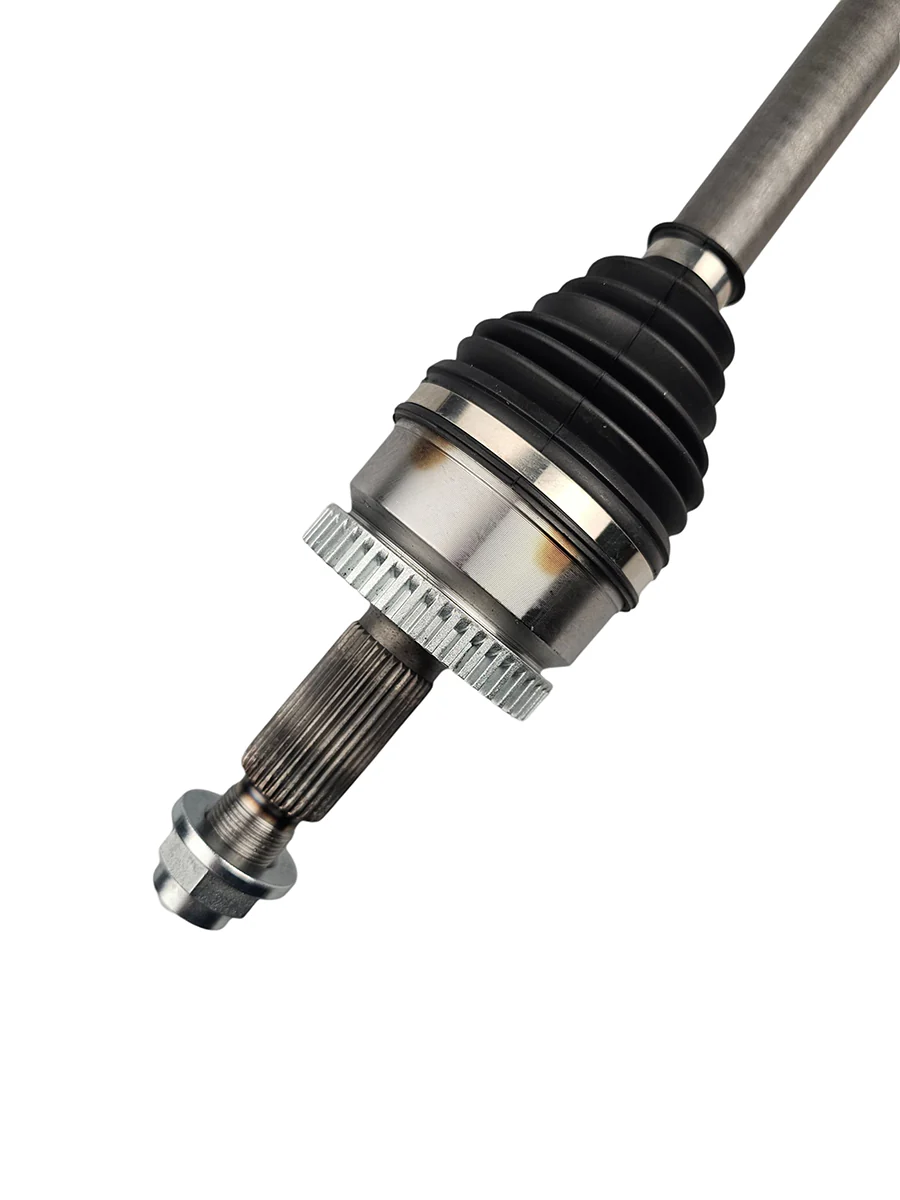

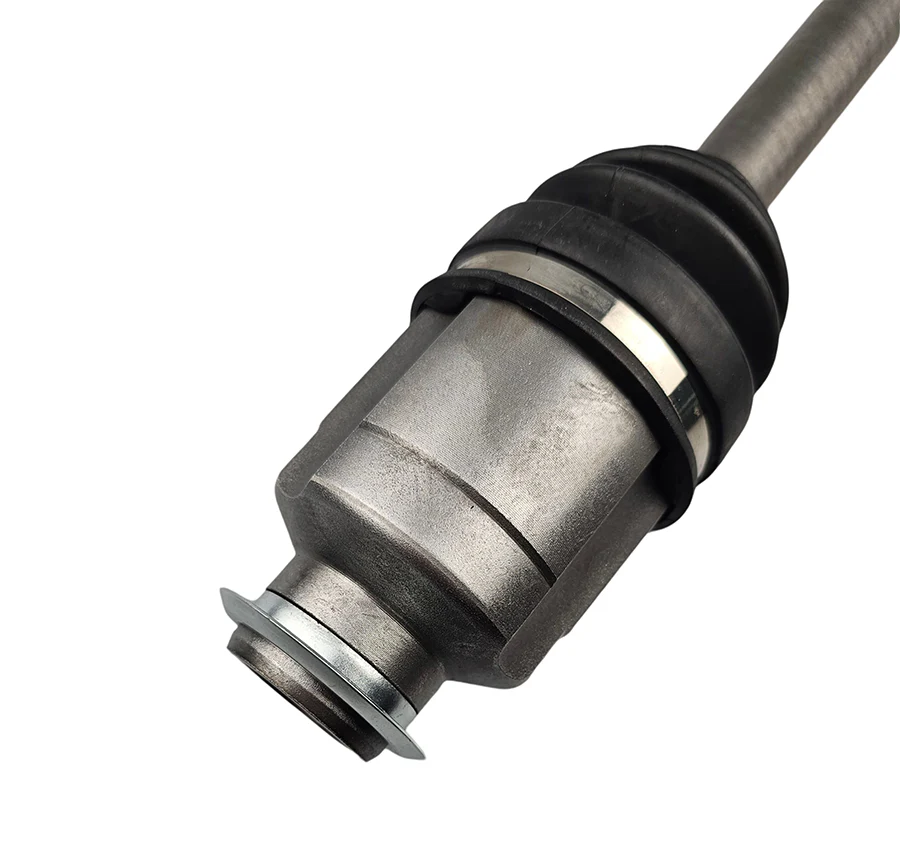

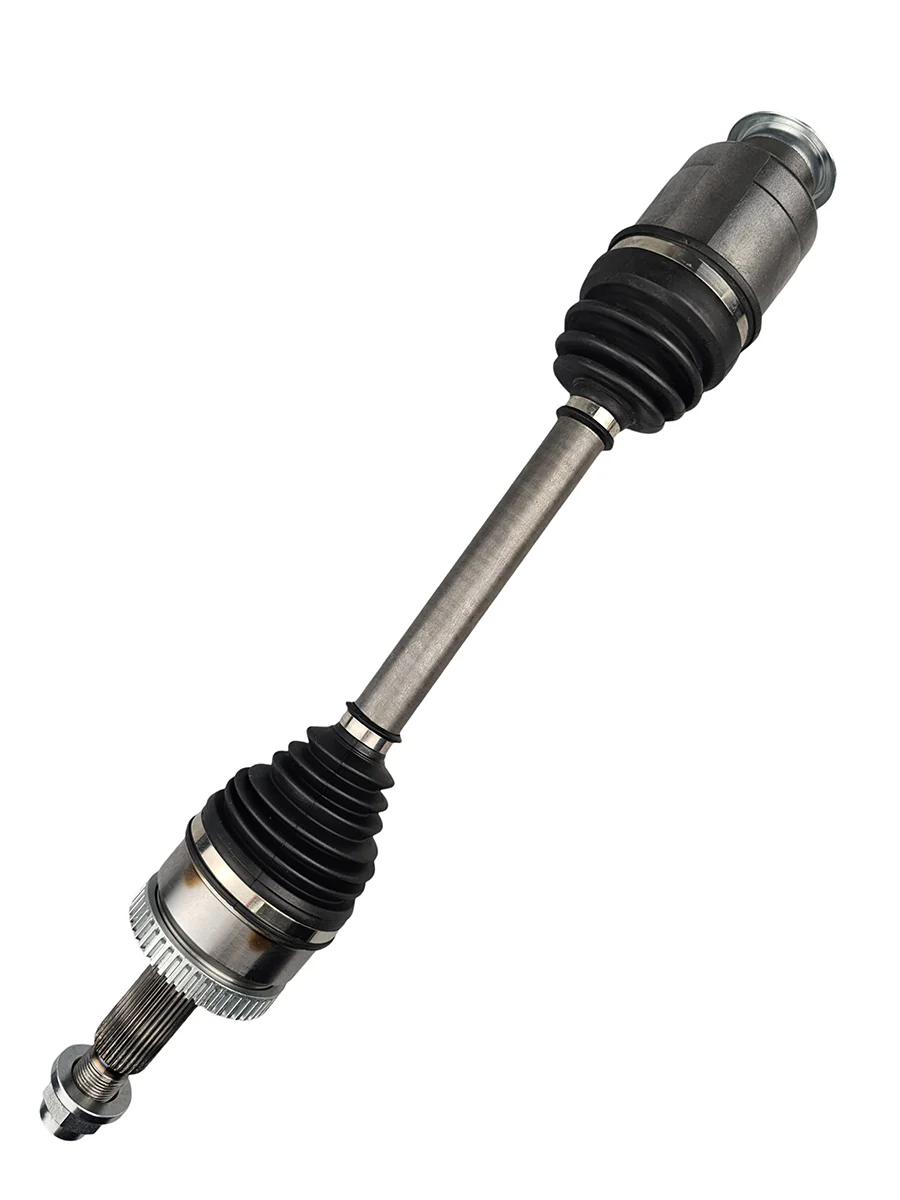

CV Axle Drive Shaft - Front Right Hand Side Automatic, All Wheel Drive

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Sportage Platinum, GT-Line Chassis: PR81C Series: QL 2.4L G4KJ 16V DOHC VVT (01/2016 - 09/2021) AWD ONLY Automatic Trans, Partial VIN: KNAPR81C
• Sportage EX, LTD Chassis: PN81C Series: QL 2.4L G4KJ 16V DOHC VVT (01/2016 - 09/2021) AWD ONLY Automatic Trans, Partial VIN: KNAPN81C

Sizing and Specifications

• Length (Compressed): 577mm
• Spline Count - Outer/Wheel Side: 30 Teeth
• Spline Count - Inner/Diff Side: 26 Teeth + 2 Blank/Keyway
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• ABS Ring Teeth: 48



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
