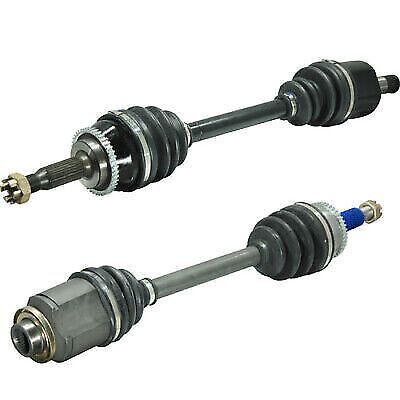

PAIR Left Right CV Drive Shaft for Mitsubishi Magna TE TF TH TJ TL TW 3.0L 3.5L

CV Axle Drive Shaft - Pair Left and Right Hand Side FWD

For chassis code: TW9V42, TW9S46, TL9#42, TW8D42 please check LEFT CV inner spline count - 27 teeth

For Ralliart models Please Double Check - FWD Manual CVA1074-CVA1574 - FWD Auto CVA1074-CVA1075

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mitsubishi Magna TE TF TH TJ 3.0L 6G72 24V SOHC (02/1996 - 05/2002)
  Includes Sub-models Advance, Executive, Altera, Altera LS, Sports
• Mitsubishi Magna TH TJ TL TW 3.5L 6G74 24V SOHC (02/1999 - 07/2005)
  Includes Sub-models Advance, Executive, Altera, Altera LS, Sports, Police, ES, LS, VR, VR-X
• Mitsubishi Verada KE KF KH KJ KL KW 3.5L 6G74 24V SOHC (10/1996 - 07/2005)
  Includes Sub-models EI, XI, GTV, GTVi,




Sizing and Specifications

Right Hand - CVA1074

• Spline Count: 27T
• Diff Side: 26T + KEYWAYS
• ABS: Suits ABS & Non ABS Models
• ABS Teeth: 43
• Wheel Side Seal Size: 60mm
• Diff Side Seal Size: 41mm
• Overall Length: 630mm - 670mm

Left Hand - CVA1075

• SPLINE COUNT: 27T
• ABS: SUITS ABS & NON ABS MODELS, 43 TOOTH
• WHEEL SIDE SEAL SIZE: 60mm
• DIFF SIDE SEAL SIZE: 41mm
• OVERALL LENGTH: 690mm - 720mm

 

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
