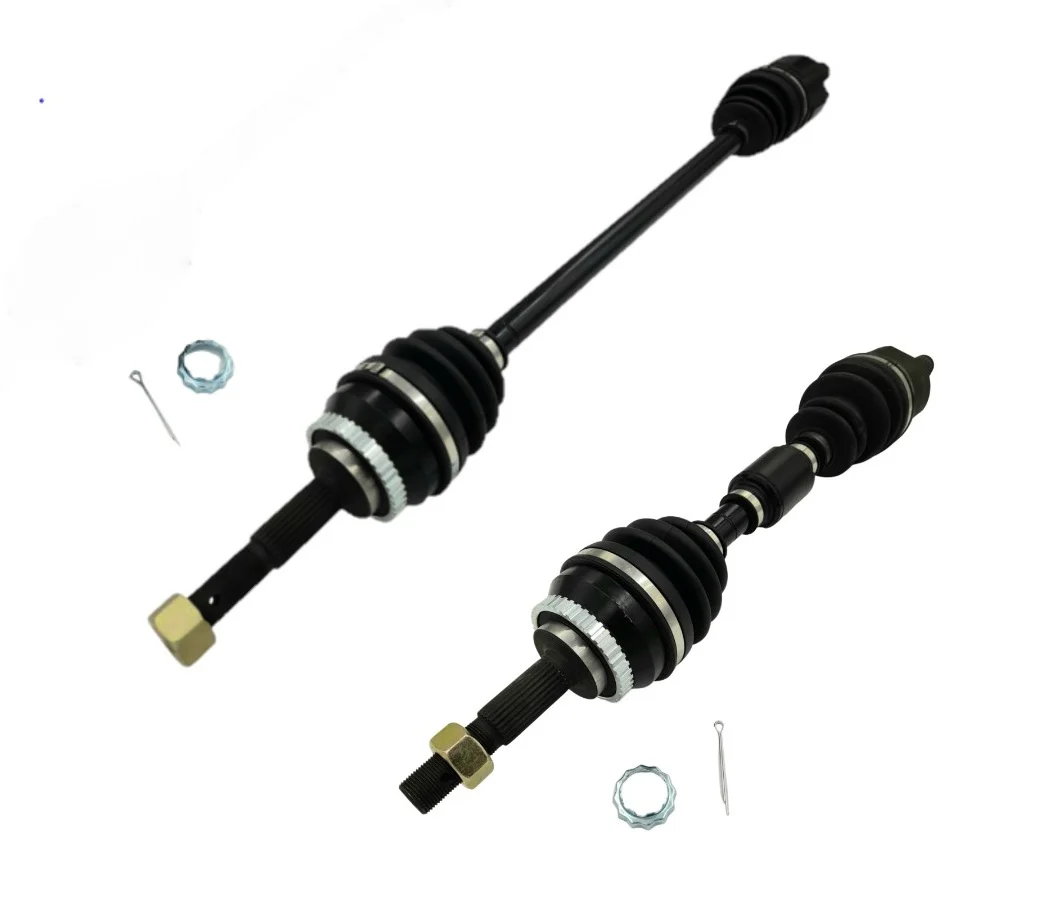

PAIR Left Right CV Joint Drive Shaft For Nissan Pulsar N15 N16 1.6L 1.8L 1995-06

CV Axle Drive Shaft - Pair Front Left & Right Hand Side Automatic or Manual Transmission FWD

Pair kit - for single kits please see (left)CVA1097 or (right)CVA1184

Please check fitment notes and chassis code for correct transmission

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Pulsar N15 BCAN15 FCAN15 1.6L GA16DE FWD (10/1995 - 09/2000)
  Includes Sub-models LX, SLX, Plus, Q
• Nissan Pulsar N16 CBAN16 FBAN16 1.8L QG18DE FWD (07/1999 - 01/2006) Manual Only
  Includes Sub-models Q, ST, ST Plus, ST-L, TI

• Nissan Pulsar N16 CFAN16 1.6L QG16DE FWD (07/2000 - 02/2003) Automatic Only
  Includes Sub-models LX, LX Plus


Sizing and Specifications

Left CV Shaft

• Length (Compressed): 633.4 mm
• Spline Count - Outer/Wheel Side: 25
• Spline Count - Inner/Diff Side: 25
• ABS Ring Teeth: 42
• Hub Nut: M22 x 1.5

Right CV Shaft

• Length (Compressed): 908 mm
• Spline Count - Outer/Wheel Side: 25
• Spline Count - Inner/Diff Side: 25
• ABS Ring Teeth: 42
• Hub Nut: M22 x 1.5



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
