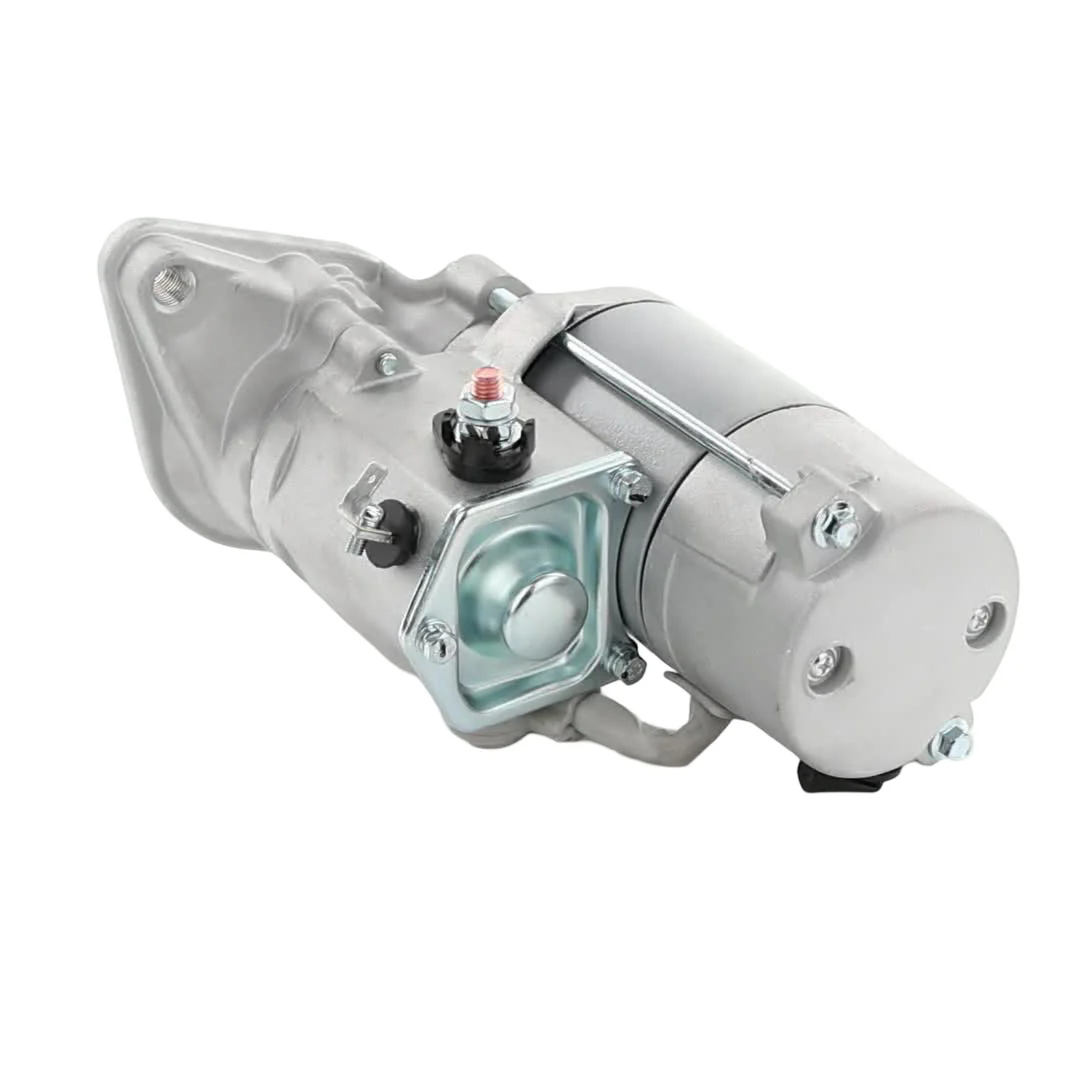

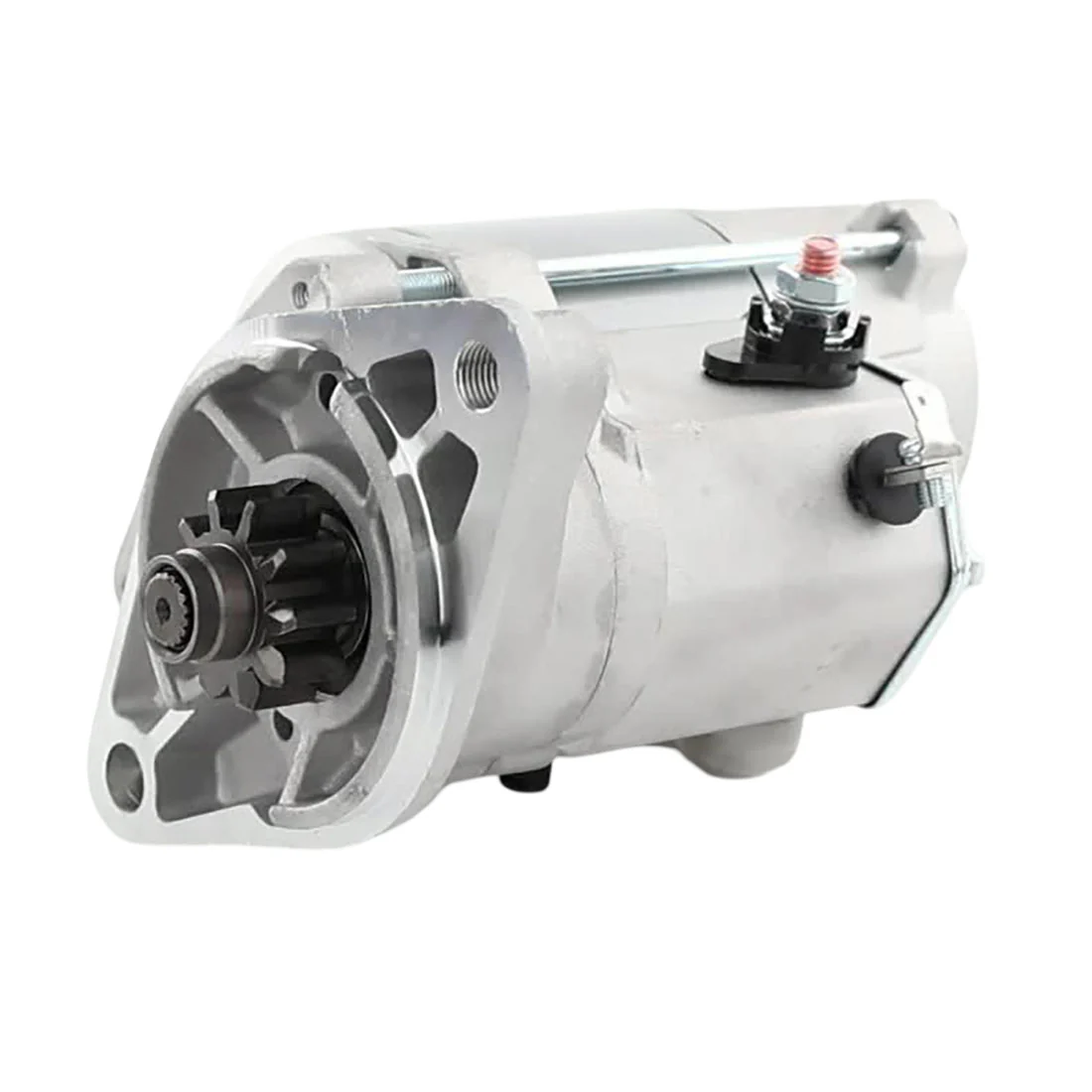

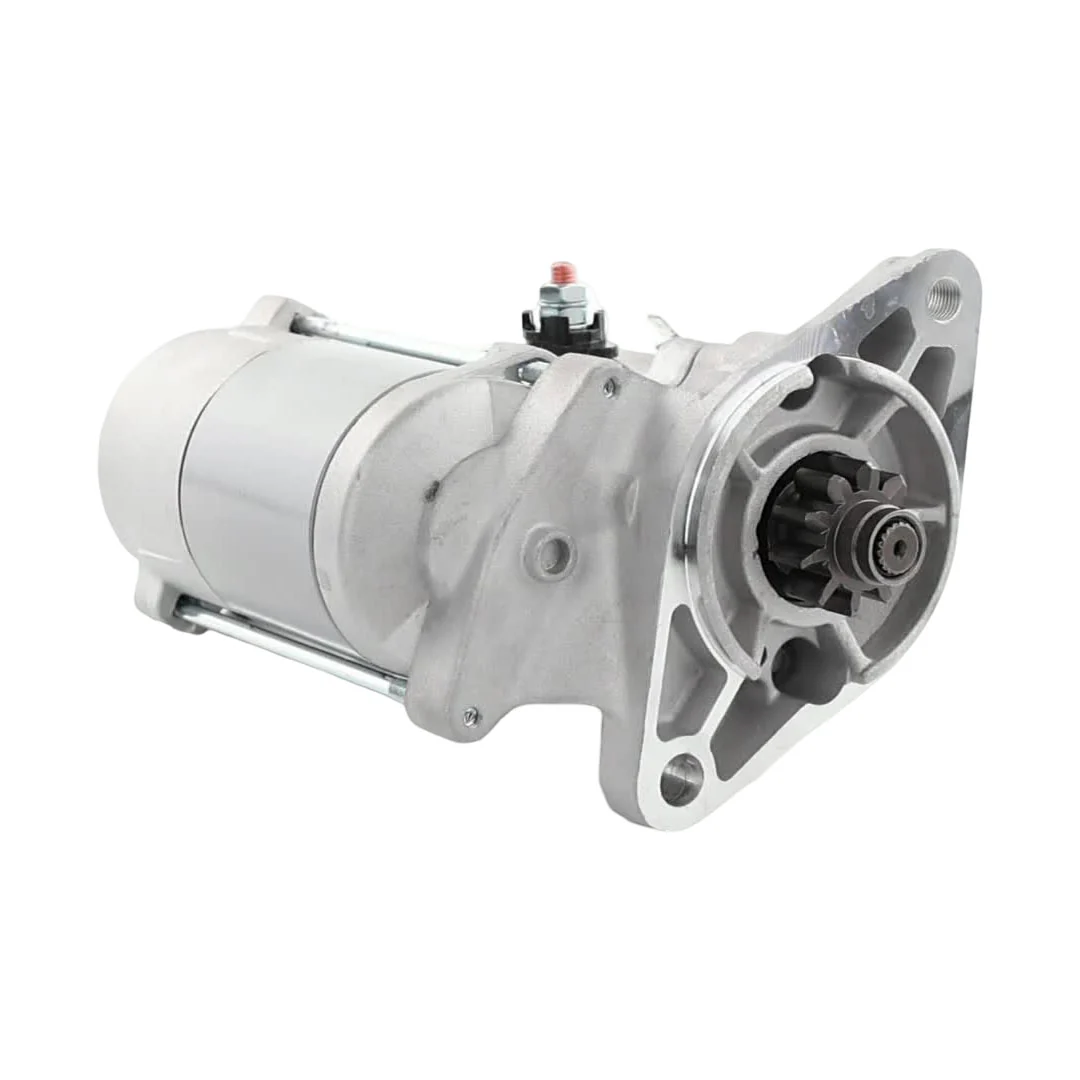

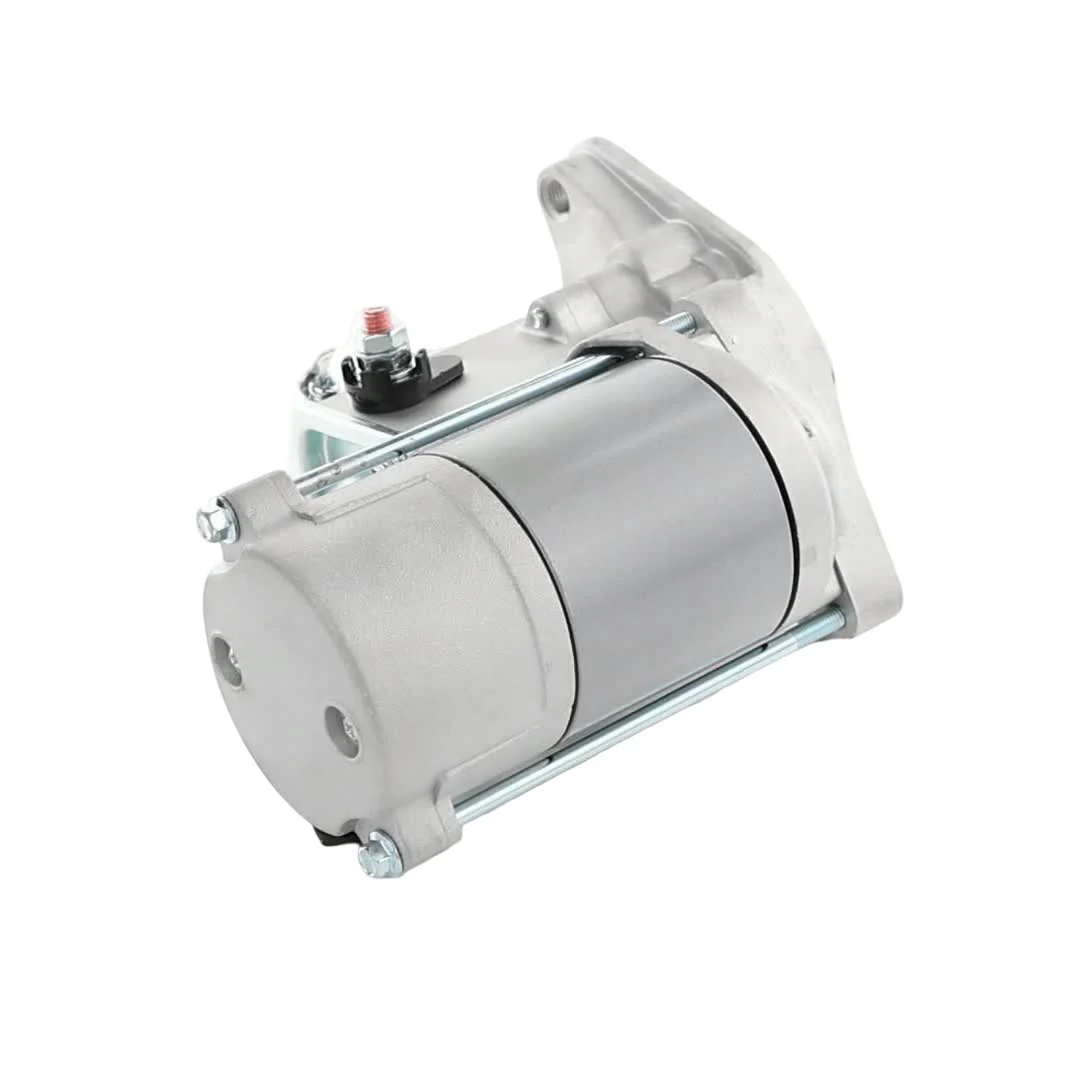

Starter Motor For Toyota Hilux LN HiAce LH Dyna LY 2L 3L 5L LN3 L27 10T Pinion

One Brand New Starter Motor

***10 Tooth Pinion Gear, Can Replace 11 Tooth Units***

We are proud to offer starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.

Vehicle Fitment

• Toyota 4 Runner (07/1984~10/1989) Diesel
• Toyota Blizzard LD10R, LD20R (03/1980~11/1989) Diesel
• Toyota Dyna 100, 150 (08/1985~09/1987) 2.4L Diesel 4L
• Toyota Dyna LY111R, LY112R, LY30R, LY31R, LY50R, 150 (03/1979~08/2001) Diesel
• Toyota Hiace LH110R, LH113R, LH119R, LH123R, LH129R, LH162R, LH172R, LH178R, LH184R, LH188R, LH20R, LH24R, LH30R, LH51G, LH61R, LH66R, LH60R, LH71R, LH70R, LH80R, LH85R, LH50R, LH56R (01/1984~12/1985) Diesel
• Toyota Hilux LN100R, LN147R, LN167R, LN172R, LN46R, LN40R, LN65R, LN85R, LN51R, LN56R, LN61R, LN55R, SURF (01/1998~12/2002) Diesel
• Toyota Landcruiser Bundera, LJ71R (01/1986~05/1993) Diesel
• Toyota Lexcen T4 VS (05/1995~05/1996) 3.8L Petrol L27

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Voltage: 12 V
• KW: 2 kW
• Rotation Direction: Clockwise
• Pinion Teeth: 10 T
• Pinion at Rest: 15 mm
• Pinion Diameter: 38 mm
• Overall Length: 220 mm
• Mounting Bolt Centre-Centre: 135 mm
• Mounting Hole Diameter: 14 x m11 x 1.25 mm
• Flange Diameter: 82 mm

What's Included

• 1 x Starter Motor

All components include a 12 month/20,000km warranty and support from our specialist team.
