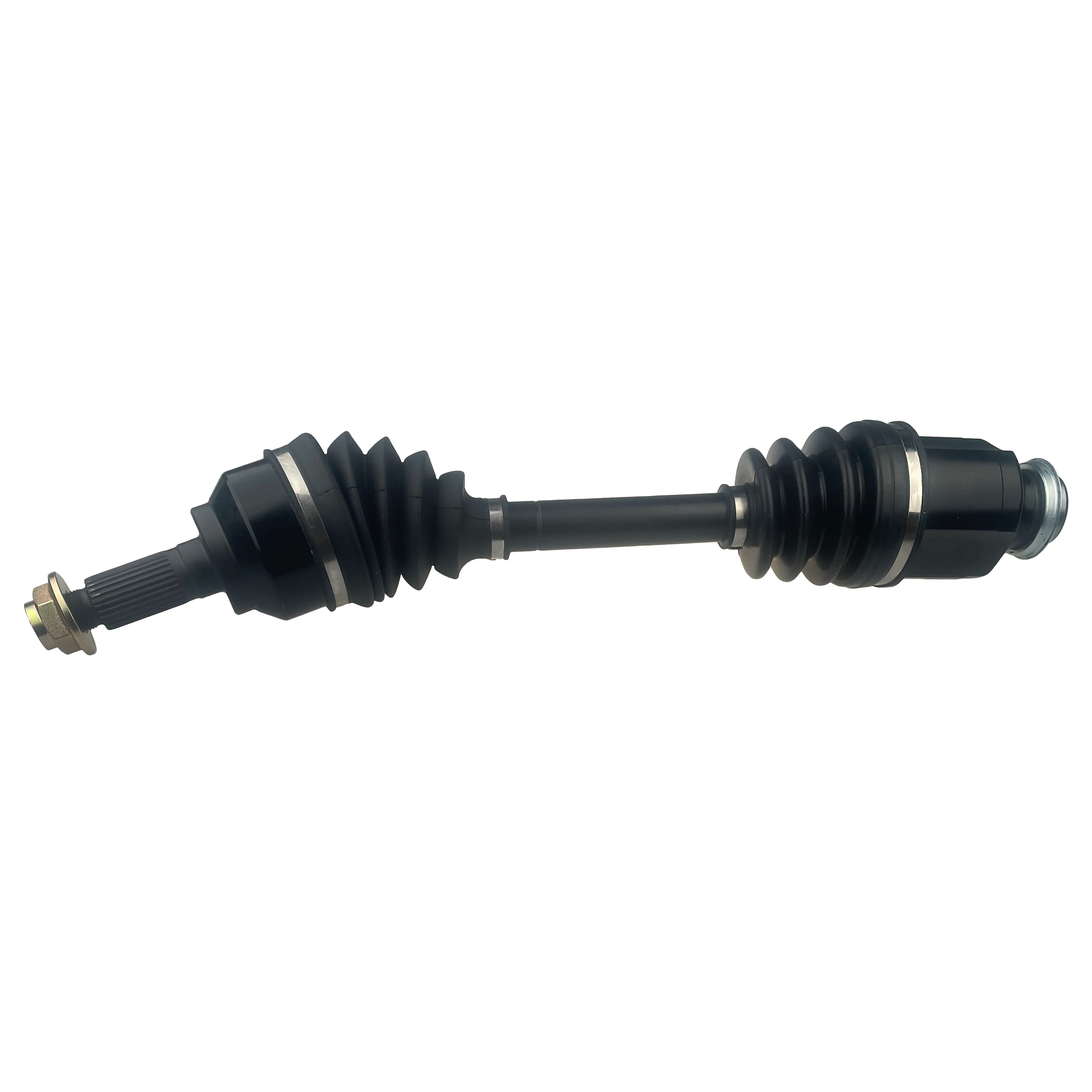

CV Axle Drive Shaft - Front Right Hand Side Automatic FWD

***Automatic, HUB NUT STYLE outer joint, please check vehicle fitment dates***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Mazda 3 BL BK 2.0L LFDE PE-VPS I4 16V DOHC VVT (04/2009-01/2014) Automatic
  Sub-Models Include MAXX, MAXX SPORT, NEO, SP20 SKYACTIV
• Mazda 3 BL 2.5L L5 I4 16V DOHC VVT (04/2009-01/2014) Automatic
  Sub-Models Include SP25
• Mazda 3 BK 2.0L LFDE I4 16V DOHC VVT (2003-05/2006) Right Automatic, 2005-Onwards Only
  Sub-Models Include MAXX, MAXX SPORT, NEO
• Mazda 3 BK 2.3L L3 I4 16V DOHC VVT (2003-03/2009) Left Automatic, 2005-Onwards Only
  Sub-Models Include SP23
• Mazda 3 BK BKRS BKRP 2.0L RF I4 16V SOHC Turbo (07/2007-09/2009) Hub Nut Style Outer Joint
  Sub-Models Include


Sizing and Specifications



• Length (Compressed): 552mm
• Spline Count Outer/Wheel Side: 28
• Spline Count Inner/Diff Side: 26+2 Blank
• Inboard Joint Type: Tripod
• Diff Joint Type: Roller
• Hub Nut Style Outer Joint: M22 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
