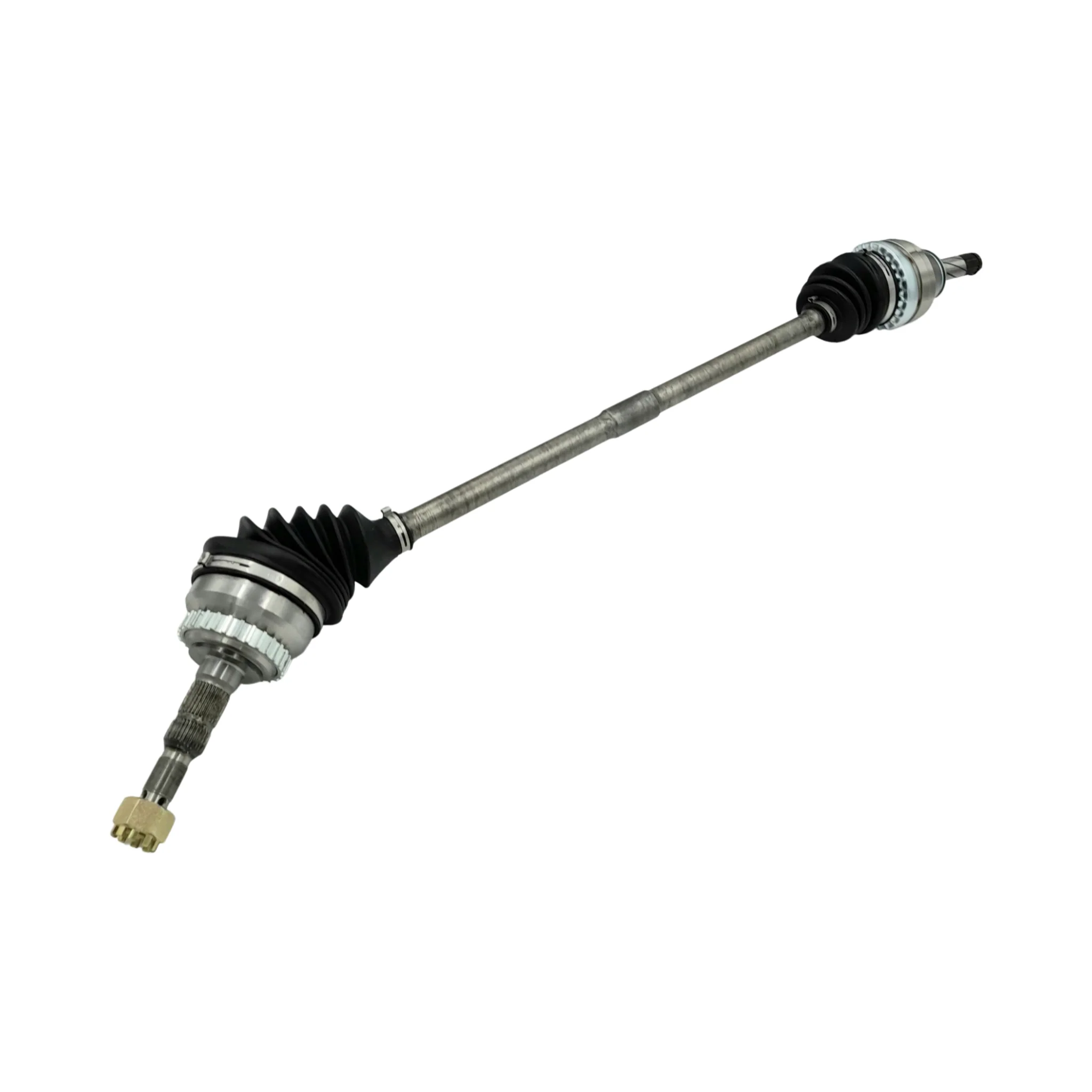

Right CV Axle Drive Shaft for Holden Astra TR TS 1.8L FWD 1998-2005 with ABS Ring

CV Axle Drive Shaft - Right Hand Side Automatic Manual FWD

***Note: This Holden Astra TS has an ABS ring on the shaft. For a driveshaft without an ABS ring, please see CVA1612.***

Vehicle Fitment For:

• Holden Astra TS 1.8L Z18XE FWD MT AT (2000 - 12/2005) With ABS Ring On the Shaft
  Sub-Models Include CD, CDX, CITY, CLASSIC, EQUIPE, CLASSIC, CD CLASSIC, SXI

• Holden Astra TS 1.8L X18XE1 FWD MT AT (09/1998 -12/2000)
  Sub-Models Include CD, CD OLYMPIC EDITION, CITY, CITY OLYMPIC EDITION
• Holden Astra TR 1.8L C18SEL FWD MT AT (09/1996 - 09/1998)
  Sub-Models Include GL
• Holden Astra TR 1.4L C14NZ FWD MT (1994 - 1999)

Sizing and Specifications

Right Hand

• Length (Compressed): 955mm
• Spline Count - Outer/Wheel Side: 33
• Spline Count - Inner/Diff Side: 22
• Onboard Joint Type Ball: Yes
• Inboard Joint Type Ball: Yes
• ABS Ring: Yes
• Hub Nut: M20 x 1

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
