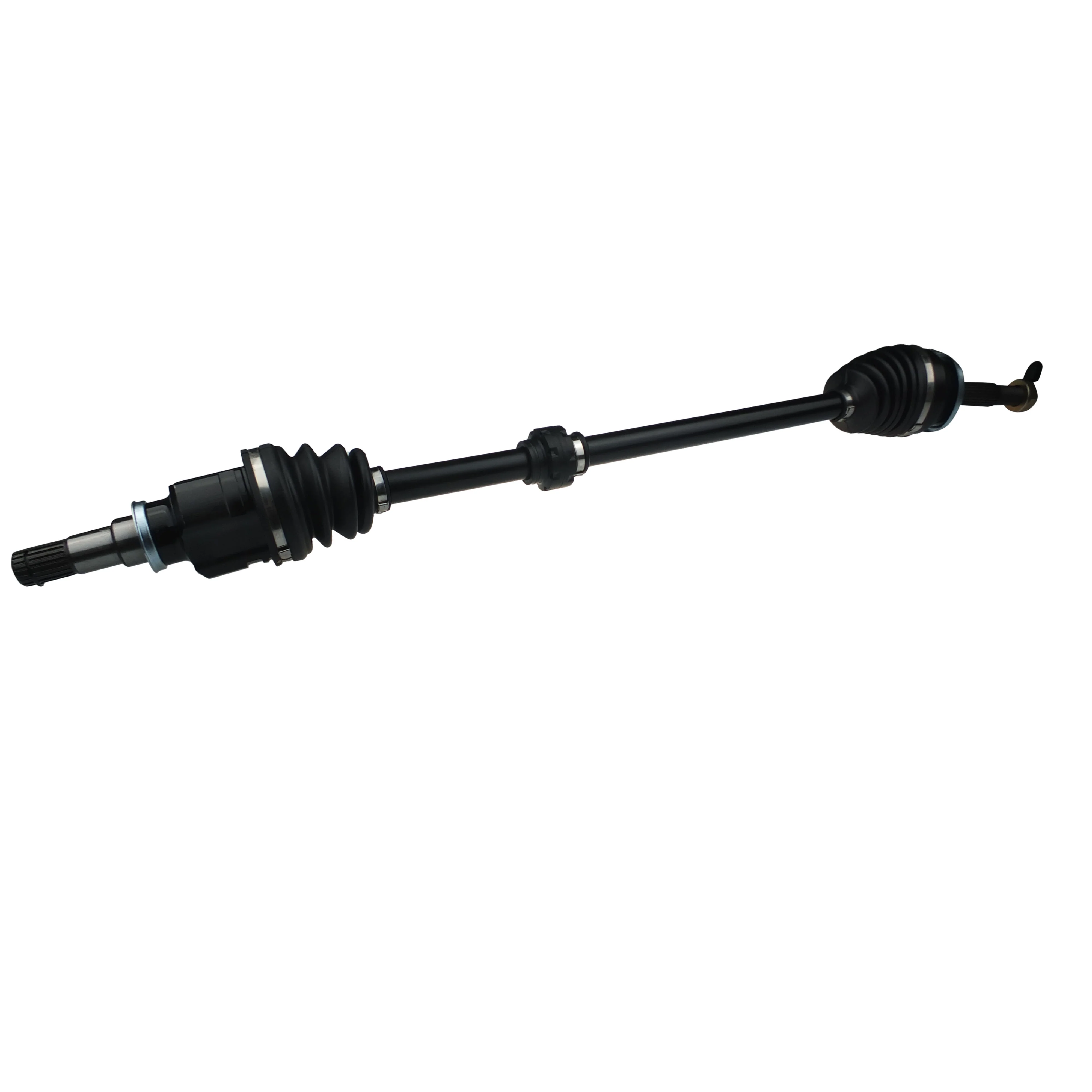

Right CV Axle Drive Shaft for Toyota Corolla ZRE152 ZZE122 20 Inner Spline

CV Axle Drive Shaft - Front Right Hand Side Manual/Automatic/CVT FWD

Right side manual 6-speed, inner joint 20 splines, fits automatic for New Zealand models

For manual 5-speed please see CVA1168

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Corolla ZZE122R 1.8L 1ZZFE 16V DOHC VVT Manual FWD (12/2001 - 04/2007) Manual 6-Speed Inner Joint 20 Spline
  Includes Sub-models Ascent, Ascent Sport, Ascent SECA, Ascent Sport SECA, TTR LE, Ultima SECA, Conquest, Levin
• Toyota Corolla ZRE152R 1.8L 2ZRFE 16V DOHC VVT Manual Automatic CVT FWD (05/2007 - 12/2015)
  Includes Sub-models Conquest, Ultima, Ascent, Ascent Sport, Rumion, Levin SX, Levin ZR, RZ, SX, ZR

• Toyota Auris ZRE152R 1.8L 2ZRFE, 2ZRFAE 16V DOHC VVT Manual CVT FWD (10/2006 - 08/2012)
  Includes Sub-models 180G, RS

Sizing and Specifications

• Length (Compressed): 945mm
• Spline Count - Outer/Wheel Side: 26T
• Spline Count - Inner/Diff Side: 20T
• Nut Size: M22 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
