Right CV Drive Shaft for Mitsubishi Challenger Triton Pajero Delica 28T Spline

Product image 1

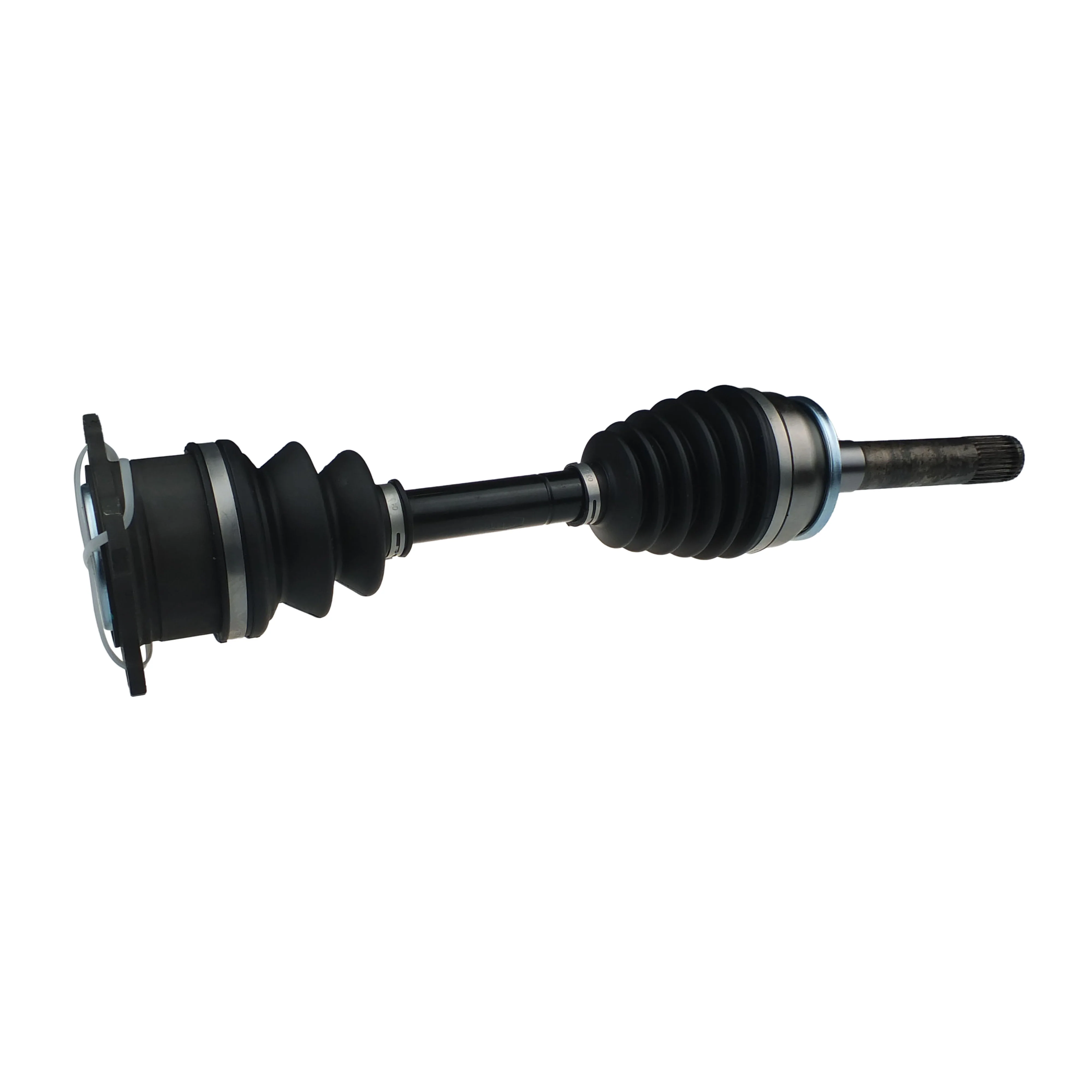

Right CV Drive Shaft for Mitsubishi Challenger Triton Pajero Delica 28T Spline

CV Axle Drive Shaft - Front Right Hand Side Automatic & Manual 4WD

28 Spline Outer Joint - Bolt On Inner Joint PCD: Suits 110mm & 114mm.

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.


Vehicle Fitment

Please note: Vehicles with 4M40 & 4M40T engine up to 08/2003 has 2 options for left shaft, 25 Spline (CVA1099) and 28 Spline (CVA1068). Please ensure you order the correct shaft for your application.
  • Mitsubishi Triton MK 2.8L Diesel 4M40 & 4M40T 06/1996~08/2006 (Check Spline Count)
    Includes Sub Models: GLX, GLXR & GLS
  • Mitsubishi Triton MK 3.0L Petrol 6G72 06/1996~08/2006
    Includes Sub Models: GLX, GLXR & GLS
  • Mitsubishi Challenger PA K96 3.0L 6G72 4WD MT & AT 12/1997~03/2007
    Includes Sub Models: GLX, GLXR & GLS
  • Mitsubishi Pajero NJ NK NL 3.5L V6 Petrol 6G74 07/1993~06/2000
    Includes Sub Models: GL, GLX & GLS
  • Mitsubishi Pajero NH NJ 3.0L V6 Petrol 6G72 01/1991~05/1996
    Includes Sub Models: GL, GLX & GLS
  • Mitsubishi Pajero 2.8L Diesel 4M40T 09/1995~06/2000 (Check Spline Count)
    Includes Sub Models: GL, GLX & GLS
  • Mitsubishi Delica 2.8L Diesel 4M40T 05/1994~12/2006 (Check Spline Count - Manual Only)
  • Mitsubishi Delica 3.0L V6 Petrol 6G72 05/1994~12/2006



    Sizing and Specifications

    • Length (Compressed): 537mm
    • Spline Count - Outer/Wheel Side: 28T
    • PCD Mounting Bolt Holes: 110.46mm
    • Mounting Bolt Centre to Centre: 78mm
    • Mounting Bolt Hole Diameter: 10.5mm
    • Inner Joint Type: Bolt on
    • Outboard Joint Type: Ball



    What's Included

    • 1 x CV Shaft

     Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
