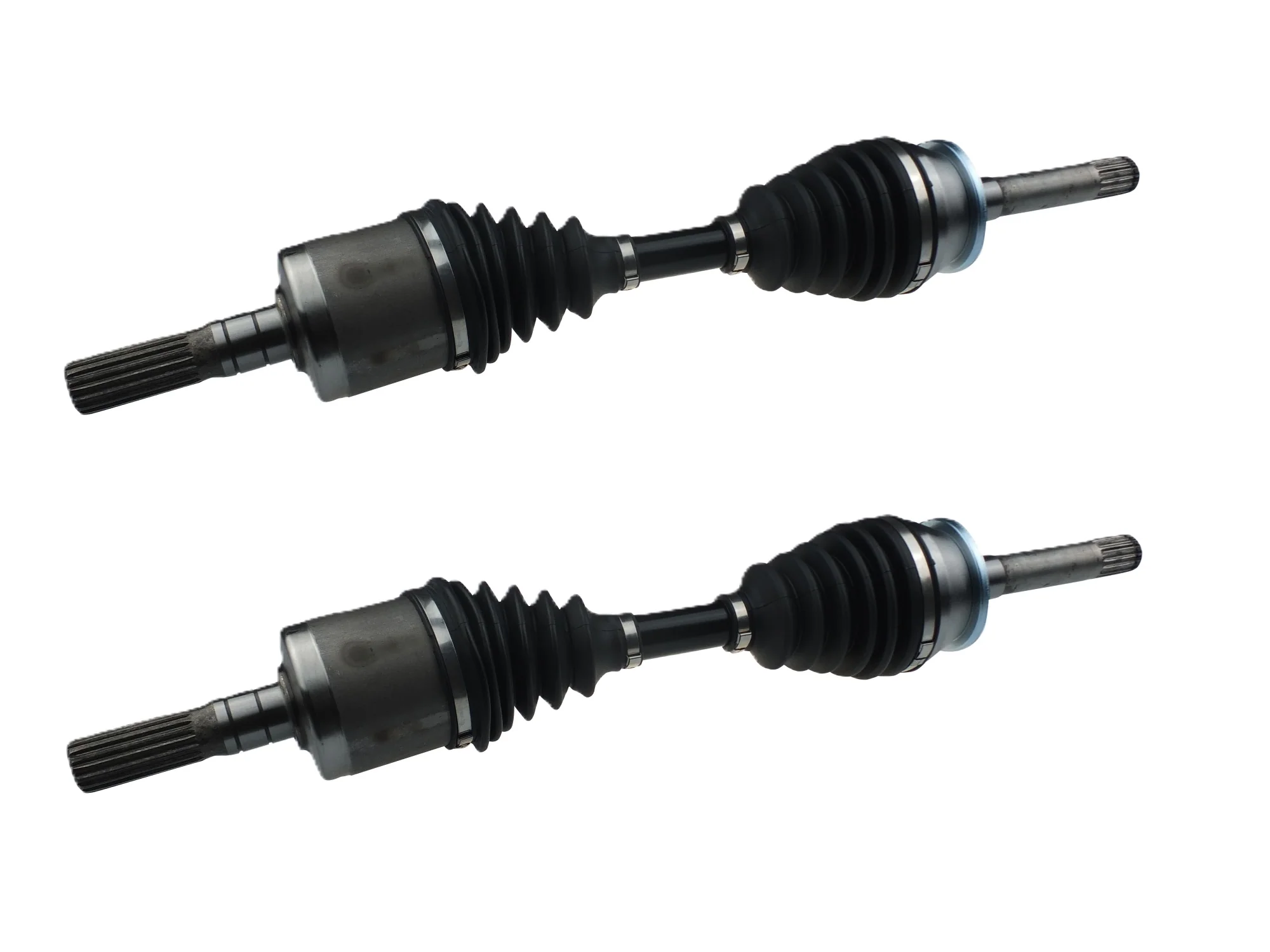

Pair CV Axle Drive Shaft - Front Left and Right Hand Side Automatic Manual 4WD

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Isuzu D-Max TFS TFS85 3.0L 4JJ1TCX 4WD MT AT (06/2012 - 06/2020)
  Includes Sub-models LS-M, LS-T, LS-U, SX, ES, X-Rider, X-Runner, Space Cab
• Isuzu MU-X UCS UCS85 3.0L 4JJ1TC 4WD MT AT (11/2013 - 06/2021)
  Includes Sub-models LS-M, LS-T, LS-U, Onyx Limited Edition

Sizing and Specifications

• Length (Compressed): 631mm
• Spline Count - Outer/Wheel Side: 17T
• Spline Count - Inner/Diff Side: 17T

• Drive Shaft Seal - Wheel Side: 53.mm
• Design: Ball



What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
