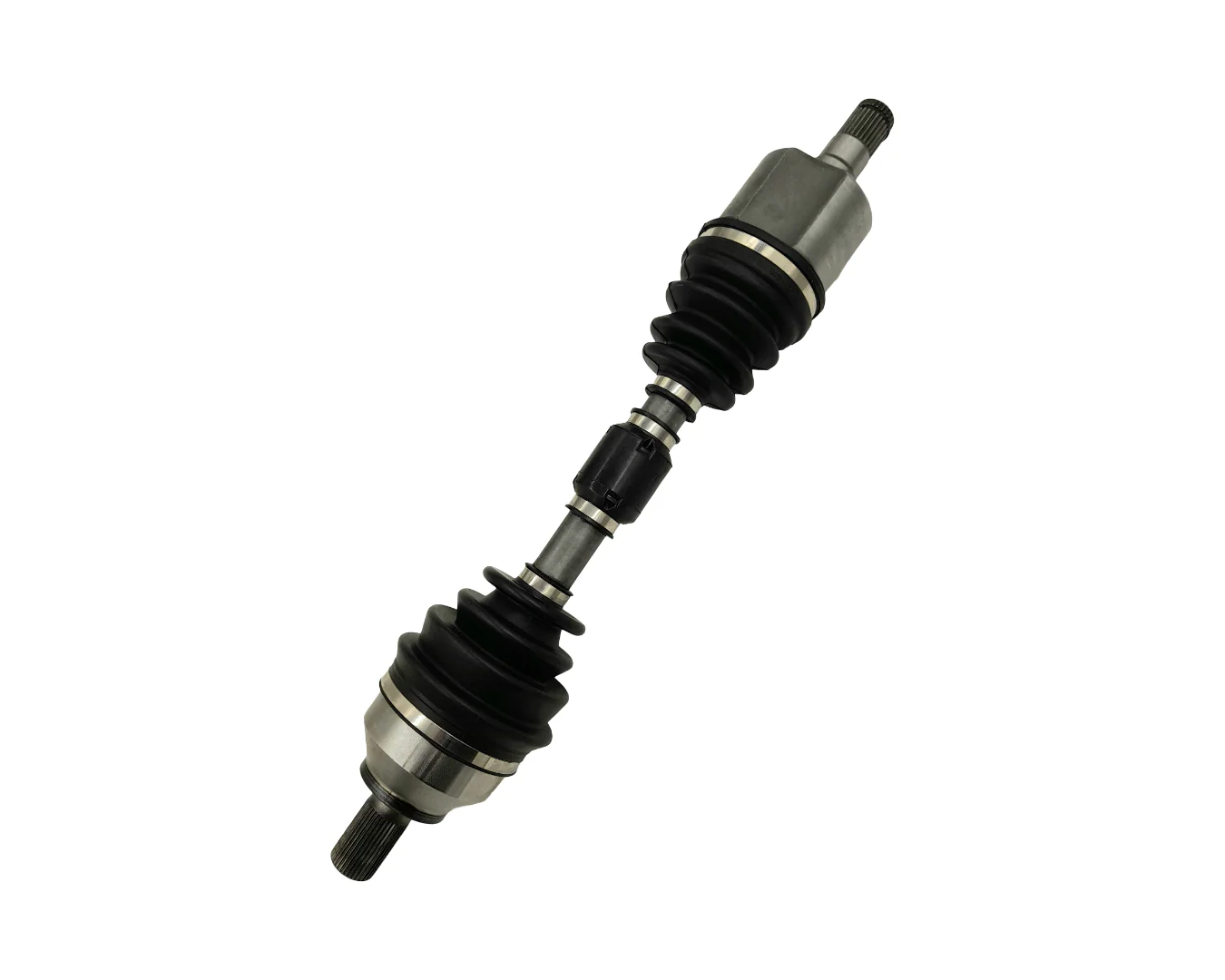

CV Axle Drive Shaft - Left Hand Side Automatic FWD & AWD

Vehicle Fitment

Models Including Sub Models:

• S40 2.5L Petrol B5244S4, B5254T7, B5254T3, B5244S5 & 2.4L Diesel D5244T8  06/2004~04/2013
• Sub Models (Sedan): T5 Lifestyle, R-Design, AWD LE, S & D5 inc I/C Turbo
• V50 2.5L Petrol B5244S4, B5244S5, B5254T7, B5254T3 & 2.4L Diesel D5244T8  04/2004~12/2015
• Sub Models (Wagon): T5 Lifestyle, R-Design, AWD LE, S & D5 inc I/C Turbo
• C30 2.5L Petrol B5244S4, B5254T7 2.4L Diesel D5244T8  2007~12/2013
• Sub Models (Hatchback): T5 Lifestyle, R-Design, AWD LE, S, Polestar & D5 inc I/C Turbo
• C70 2.5L Petrol B5244S4, B5254T7, B5254T3, B5244S5 & 2.4L Diesel D5244T8  03/2006~12/2015 (check for specific build dates)
• Sub Models (Convertible): T5, LE, S & D5 inc I/C Turbo

Sizing and Specifications

•  Length (Compressed)  519mm
• Spline Count - Outer/Wheel Side  36T
• Spline Count - Inner/Diff Side  26T

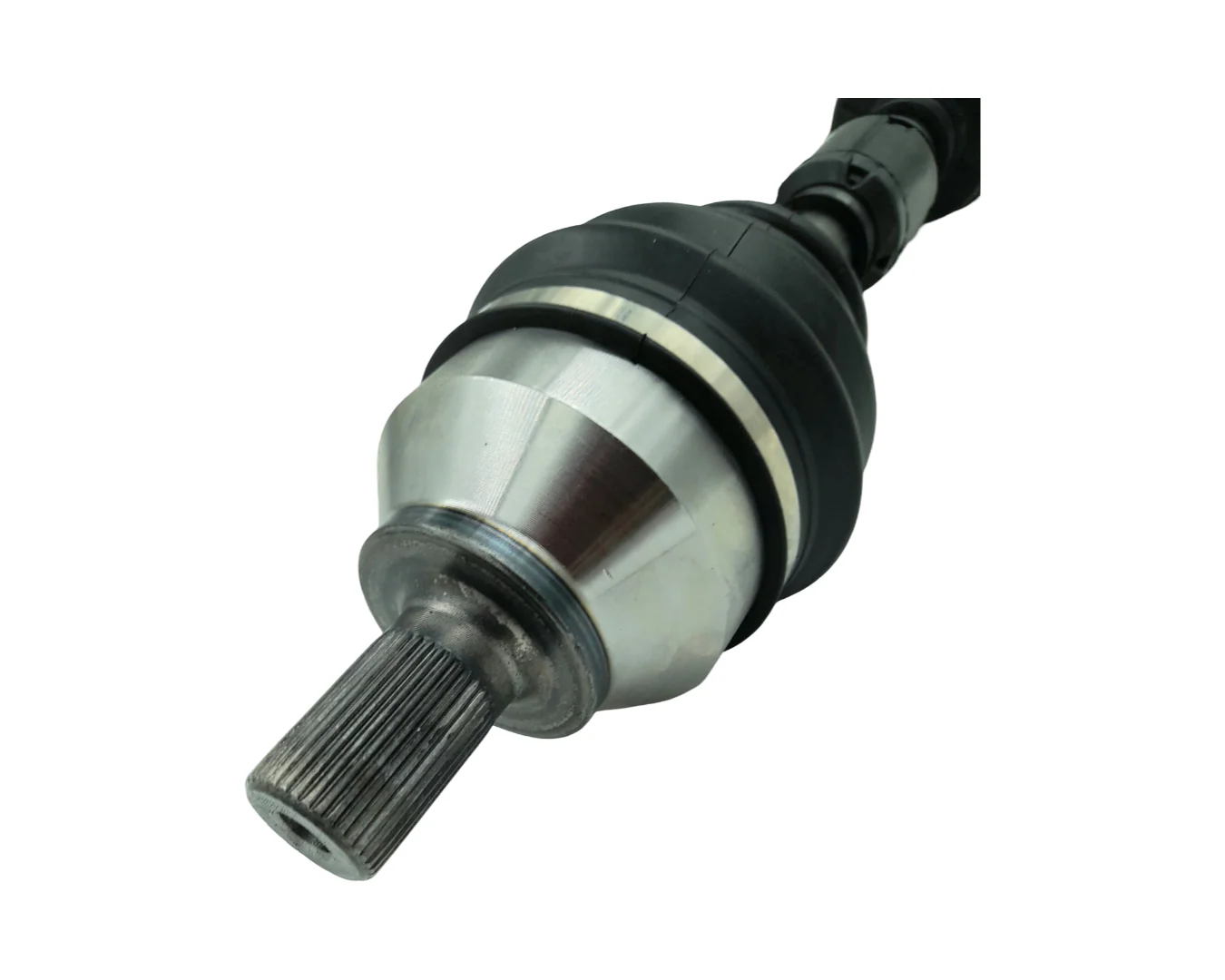

• Outboard Joint Type Ball

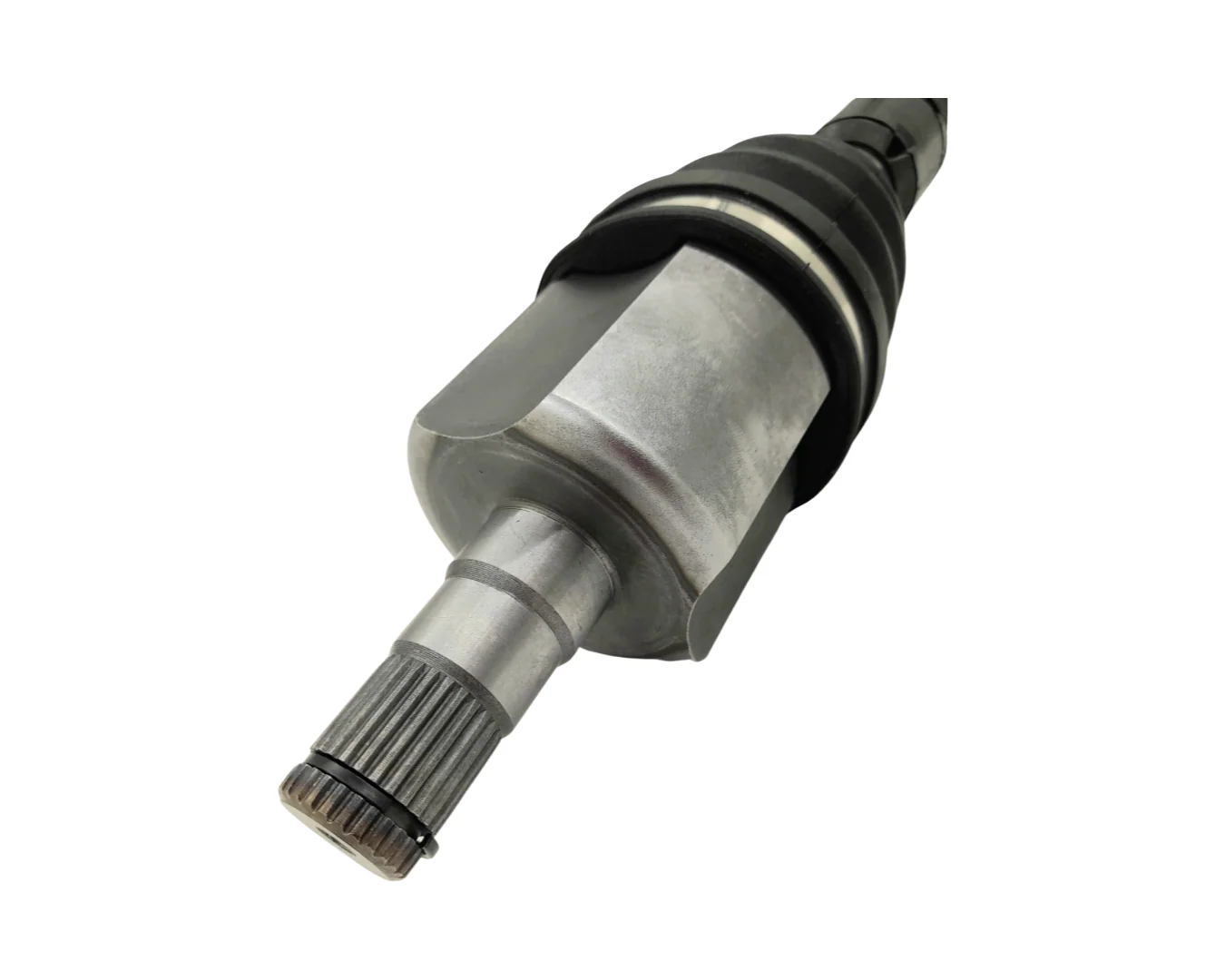

• Inboard Joint Type Tripod
• Hub Bolt Style M10 x 1.5

 

What's Included

1 x CV Shaft

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
