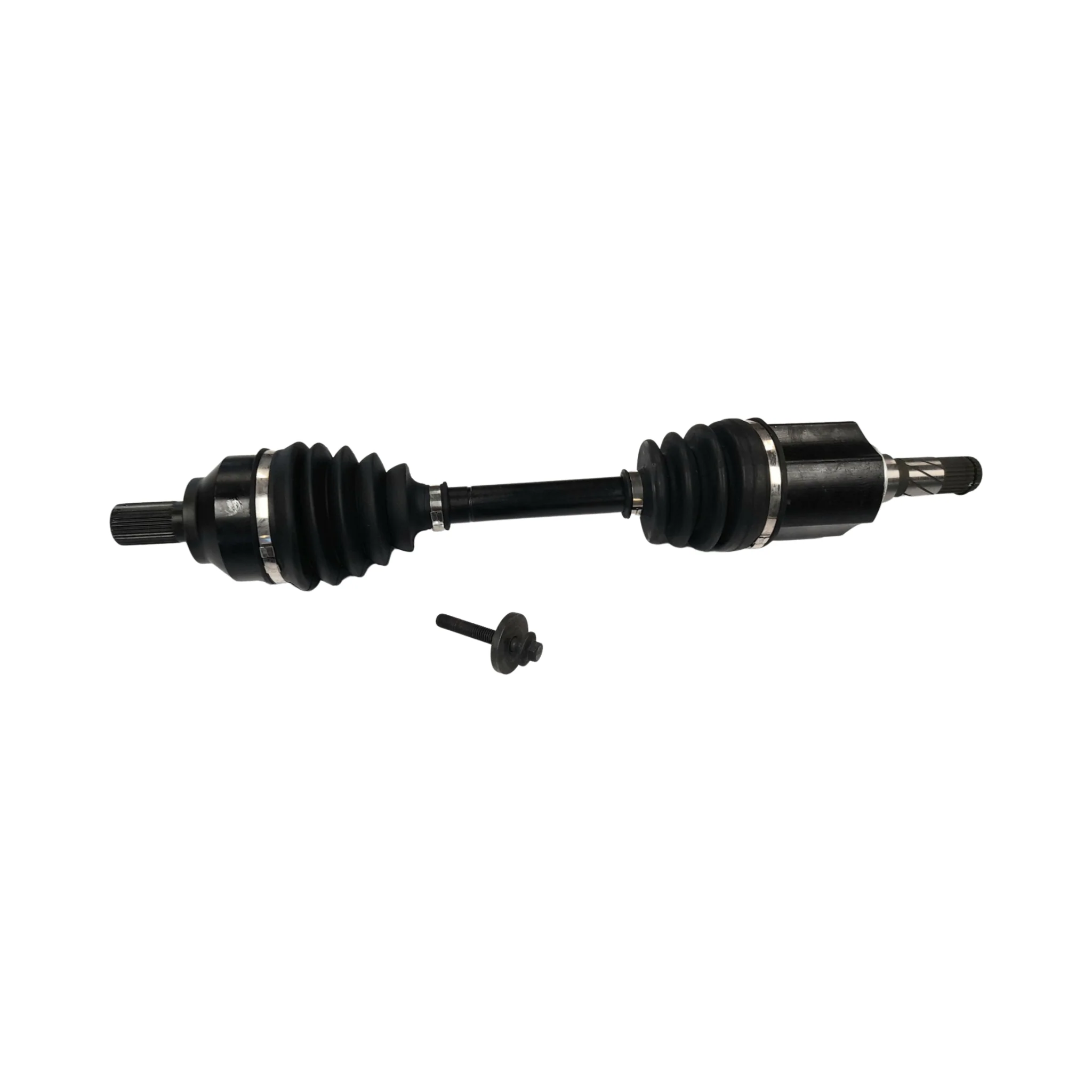

Left CV Axle Drive Shaft for Mazda3 Mazda 3 Axela BK 2.0L LFDE 2003-2005 AT

CV Axle Drive Shaft - Front Left Hand Side Automatic FWD - Hub BOLT Style Outer Joint

***Automatic, please check vehicle fitment dates - hub bolt style outer joint***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Mazda 3 Mazda3 BK BKFP BKFS 2.0L LFDE (2003 - 05/2006) Left Automatic, Up to 2005 Only, Hub Bolt Style Outer Joint
  Includes Sub-models MAXX, Neo, Sport
• Mazda Axela BK BKEP 2.0L LFDE (10/2003 - 05/2006) Left Automatic, Up to 2005 Only
  Includes Sub-models 20C, 20H, 20S, Sports

Sizing and Specifications

• Length (Compressed): 575mm
• Spline Count - Outer/Wheel Side: 36
• Spline Count - Inner/Diff Side: 28
• Hub Nut Style Outer Joint: M10 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
