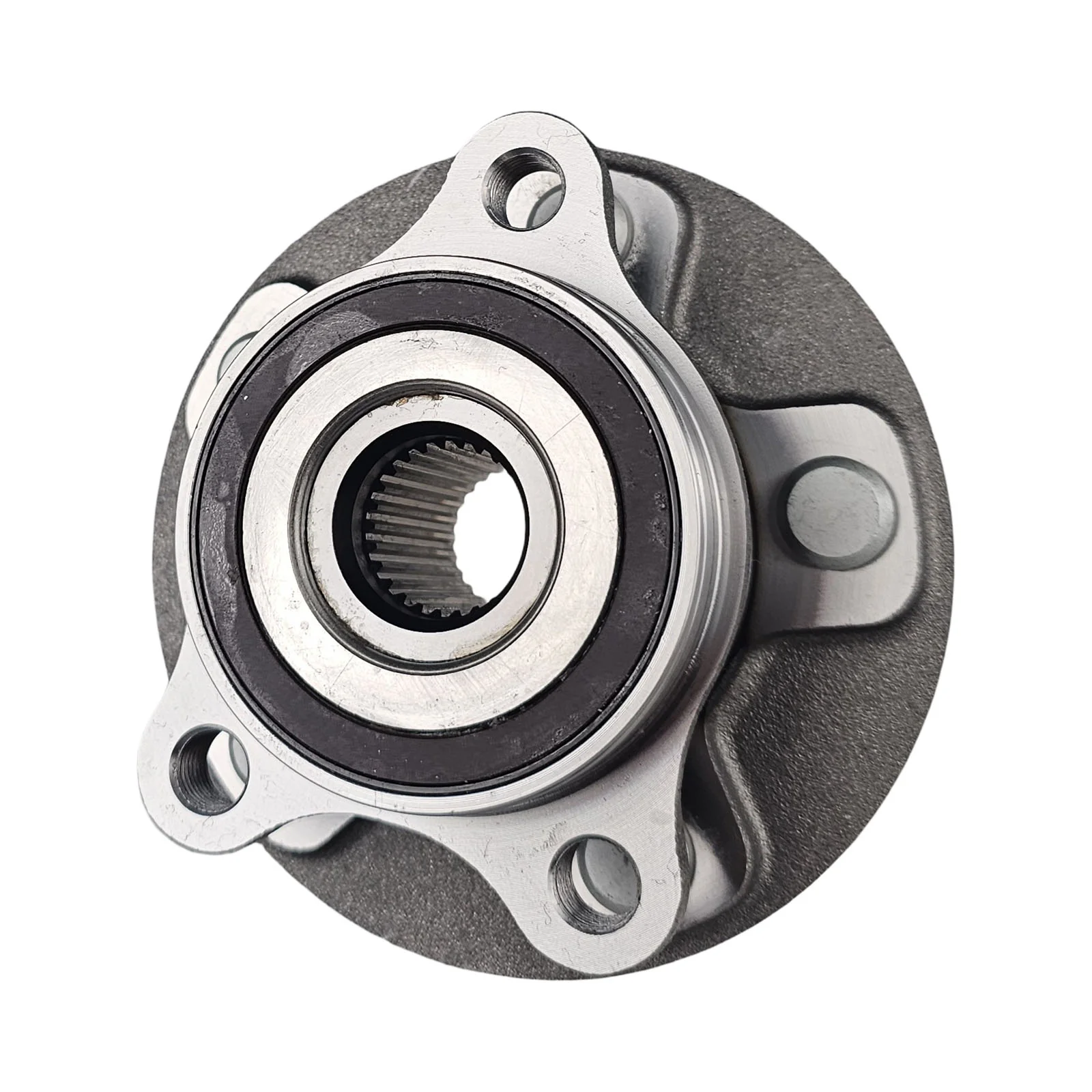

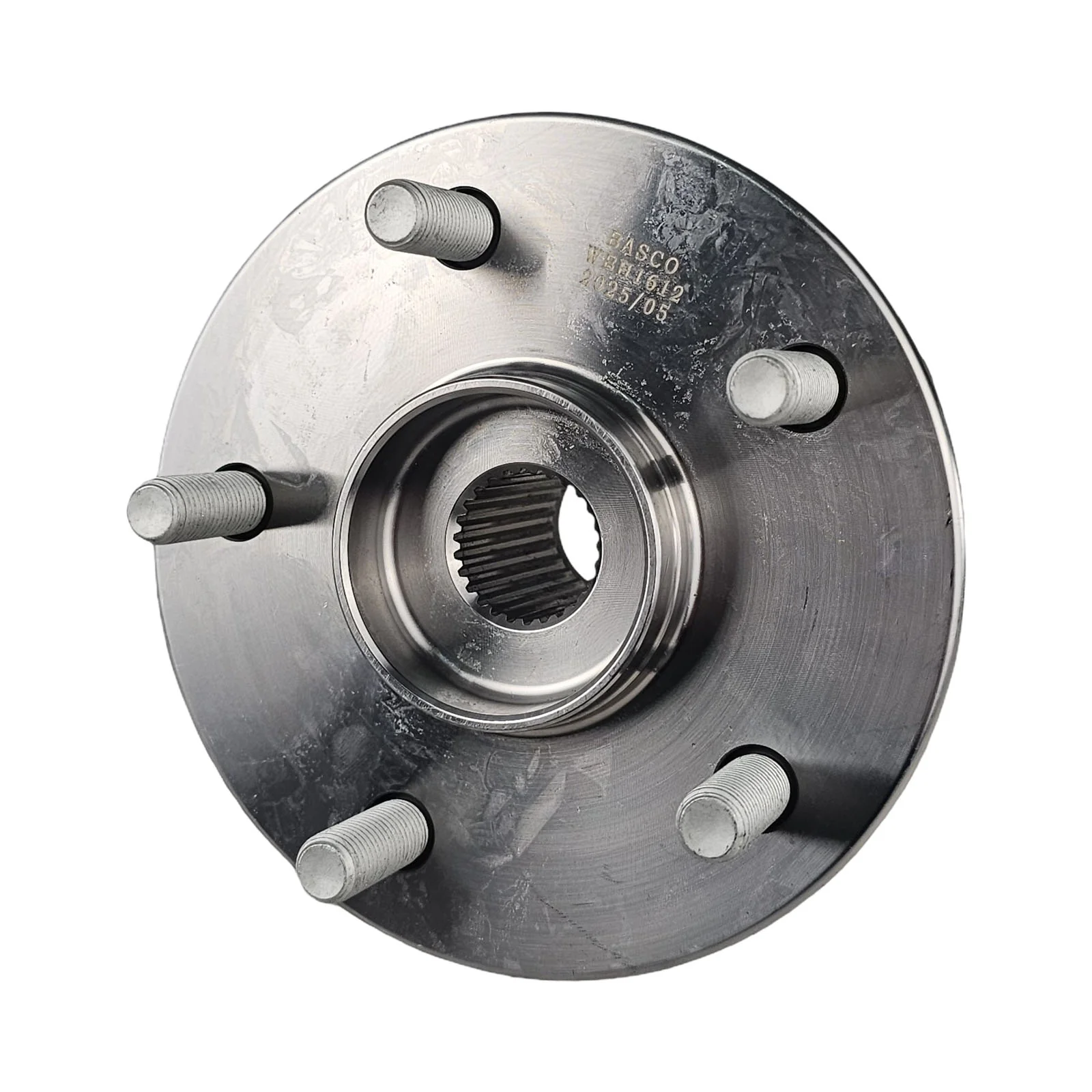

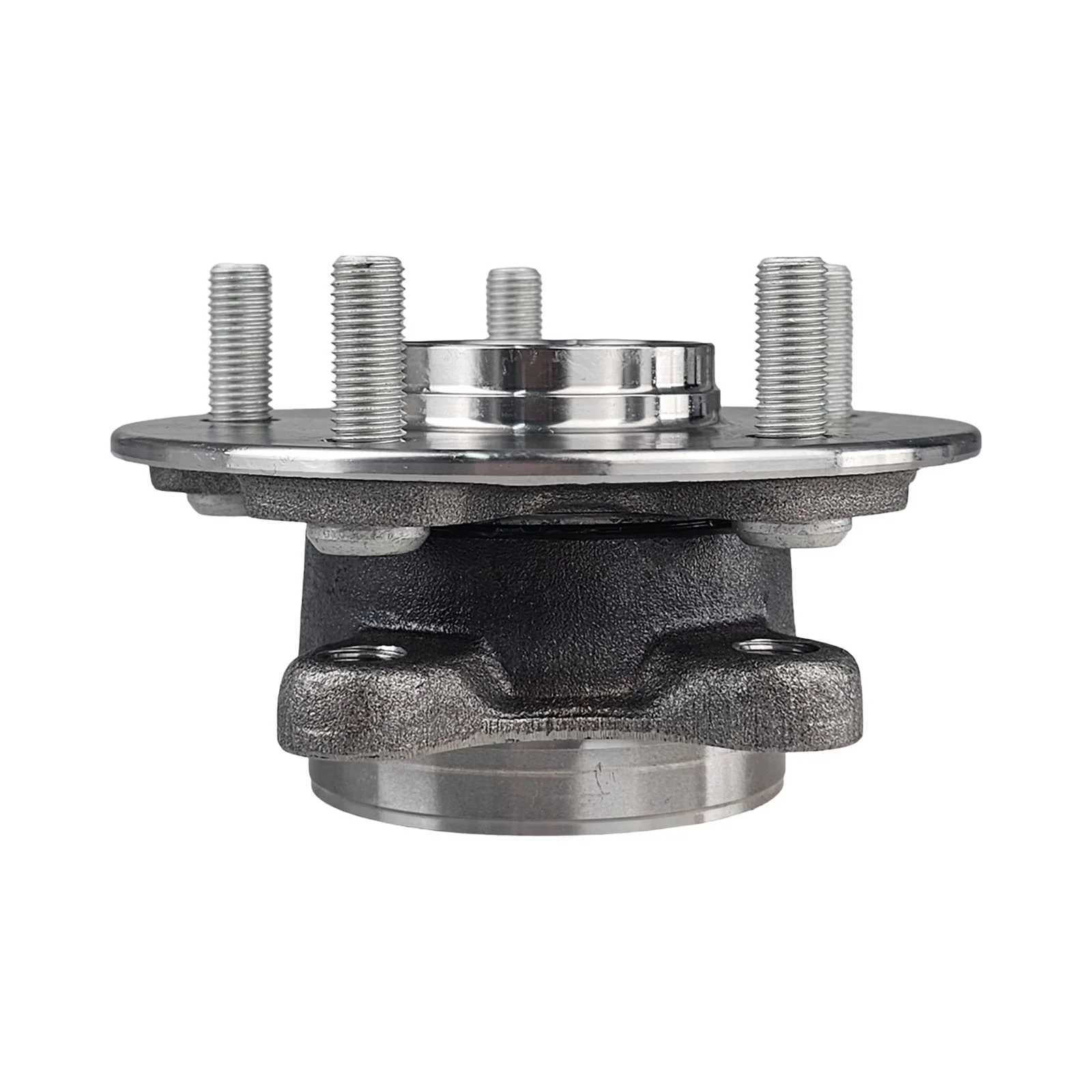

Front Wheel Bearing Hub for Toyota GR Yaris GXPA16R 2020~On

One Brand New Front Wheel Hub

******

Premium wheel end components engineered to OE specifications for reliability and long life.

Vehicle Fitment

• Toyota GR Yaris GXPA16R 1.6L G16E-GTS AWD (08/2020 - On)

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• ABS: Yes
• Spline Quantity: 30
• Bolt Circle Diameter: 114.3 mm
• Wheel Stud Quantity: 5 x M12 x 1.5
• Hub Pilot Diameter: 85 mm
• Brake Pilot Diameter: 62 mm
• Wheel Pilot Diameter: 60 mm
• Flange Offset: 47.5 mm
• Flange Diameter: 152 mm
• Flange Bolt Hole Qty: 3 x M14x1.5

What's Included

• 1 X Full Hub Assembly

All components include a 12 month/20,000km warranty and support from our specialist team.
