Front Right Extended CV Drive Shaft for Mazda BT50 UP UR Ford Ranger PX1 PX2 PX3

CV Axle Drive Shaft - Front Right-Hand Side 4WD Automatic/Manual

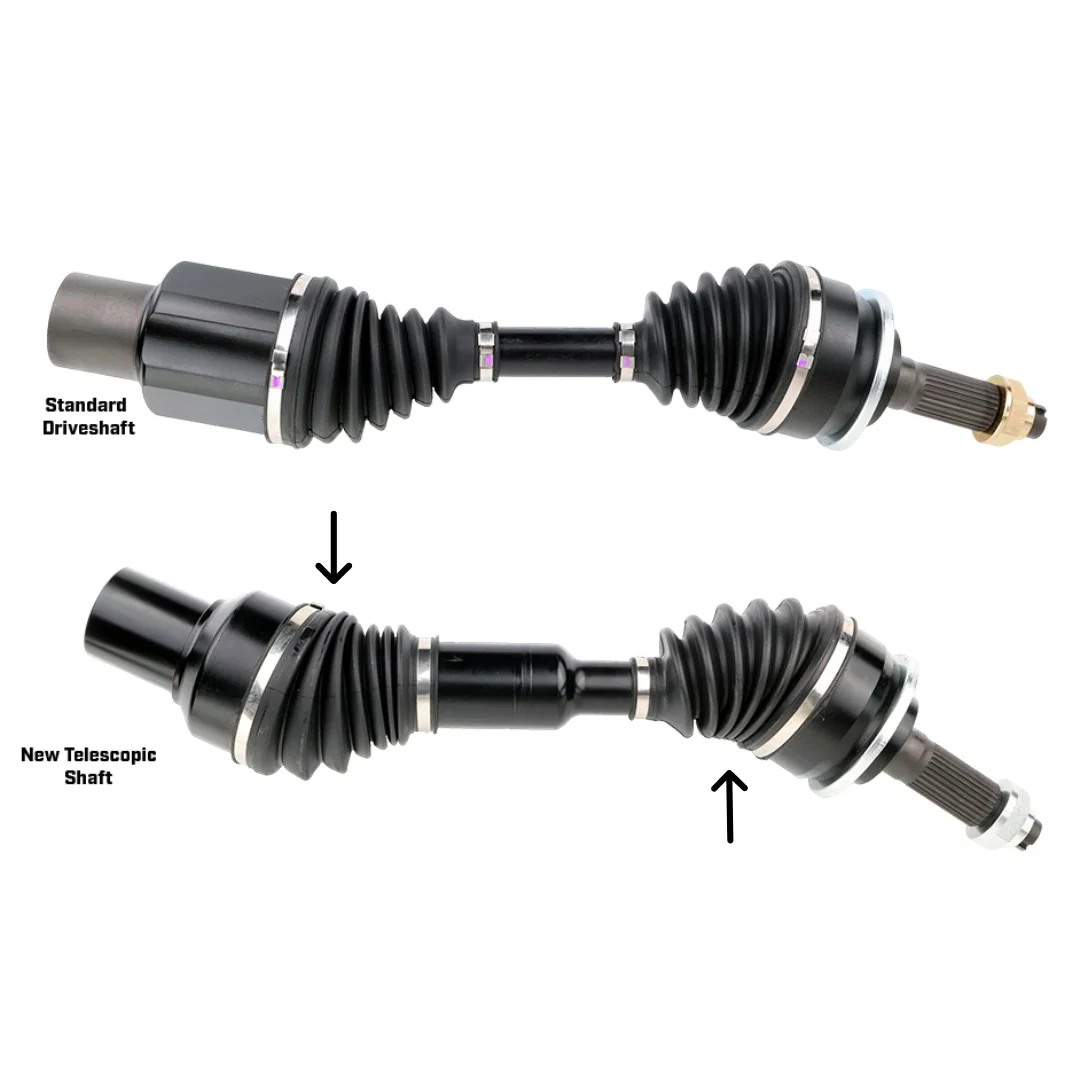

New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines

For Lifted and Non-Lifted Vehicles, Compressed Length 568mm Extends to 625mm

Telescopic CV shafts are designed to provide greater linear travel compared to standard CV shafts, allowing for more suspension articulation and reduced stress on components.

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless-steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Ford Ranger PX1, PX2, PX3 2.0L Y2NS 2.2L P4AT, 3.2L P5AT 4WD Manual Automatic (09/2011-06/2022) Does not fit Raptor, Raptor X models
  Sub-Models Include XL, XLS, XL PLUS, XLT, WILDTRAK, SUPER CAB XL, SPORT, FX4, LIMITED
• Mazda BT50 UP UR 3.2L P5AT 4WD Manual Automatic (11/2011-07/2020)
  Sub-Models Include XT, GT, XTR, XT FREESTYLE CAB, XTR FREESTYLE CAB, BOSS


Sizing and Specifications

• Length: 568mm (Compressed) - 625mm (Extended)
• Spline Count - Outer/Wheel Side: 28T
• Spline Count - Inner/Diff Side: 28T +1 Blank Keyway
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball

• Hub Nut Style: M24 x 1.5

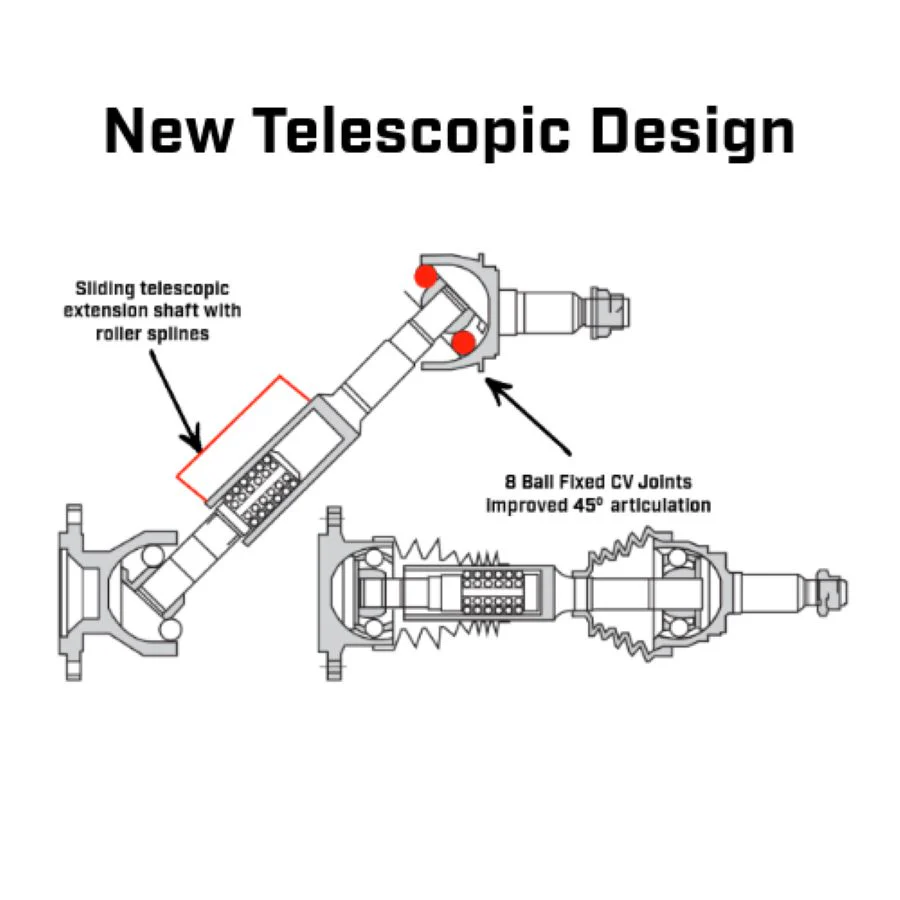

• Telescopic Design: Centre Bar Housing Has an Extending Roller Spline



What's Included

• 1 x Telescopic CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
