PAIR Front LH RH CV Axle Drive Shaft For Holden Barina TM 1.6L F16D4 FWD MANUAL

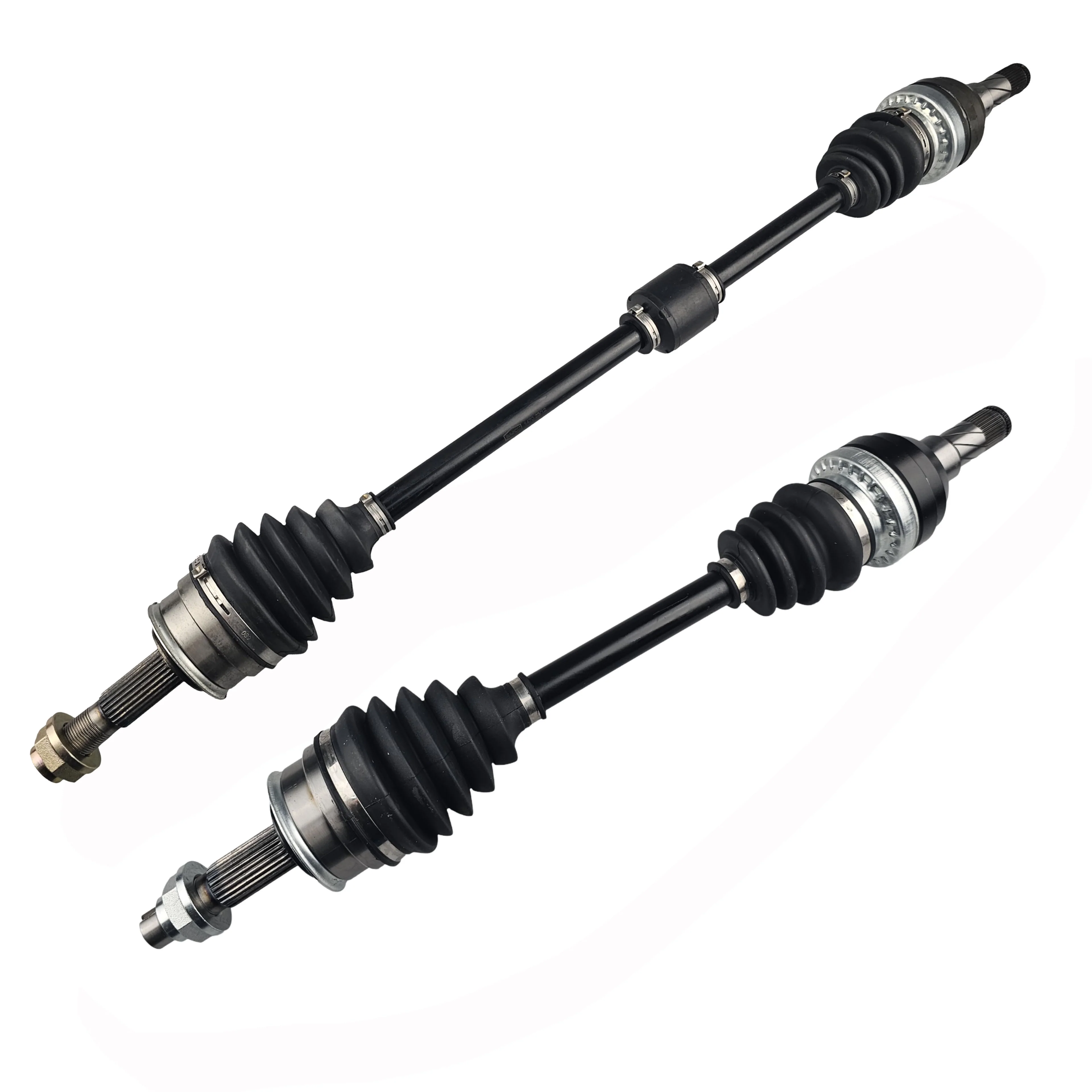

CV Axle Drive Shafts - Front Left & Right Hand Side FWD Manual Gearbox

Note: The Left CV Shaft has 2 Versions, Please Confirm Shaft is Visually the Same

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.



Vehicle Fitment

• Holden Barina TM 1.6L F16D4 I4 16V DOHC VVT (11/2011 - 01/2019)
  Includes Sub Models: CD, CDX, LS, X, CD R PACK, CD TRIO


Sizing and Specifications

Left Side

• Length (Compressed): 617mm
• Spline Count - Outer/Wheel Side: 25T
• Spline Count - Inner/Diff Side: 34T

Right Side

• Length (Compressed): 934mm
• Spline Count - Outer/Wheel Side: 25T
• Spline Count - Inner/Diff Side: 34T



What's Included

• 2 x CV Shafts

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
