Front Left Extended CV Drive Shaft for Mazda BT50 UP UR Ford Ranger PX1 PX2 PX3
CV Axle Drive Shaft - Front Left-Hand Side 4WD Automatic/Manual

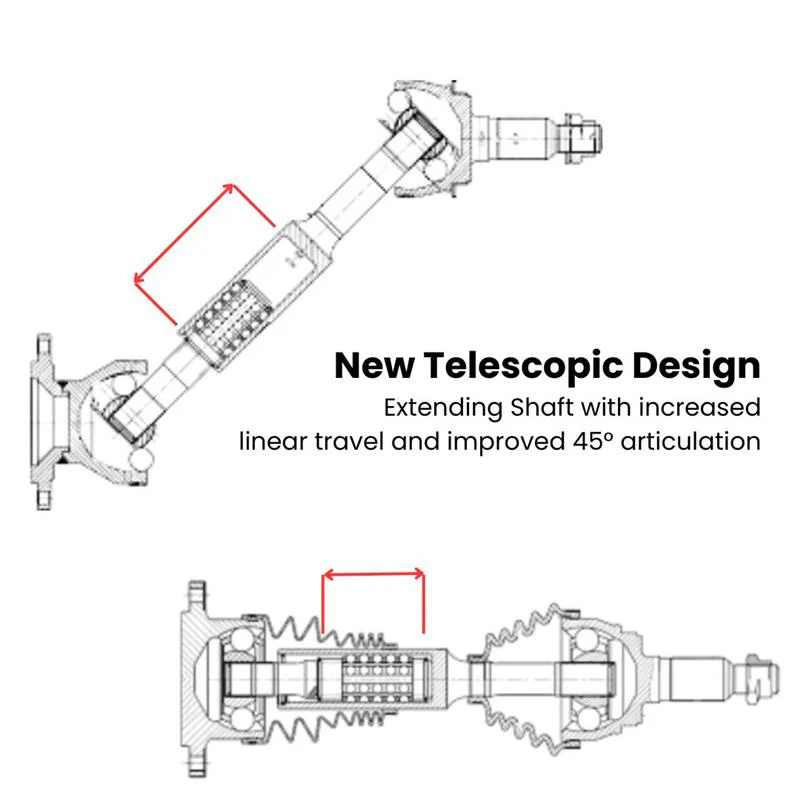

New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines
For Lifted and Non-Lifted Vehicles, Compressed Length 609mm Extends to 666mm
Telescopic CV shafts are designed to provide greater linear travel compared to standard CV shafts, allowing for more suspension articulation and reduced stress on components.
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Ford Ranger PX1, PX2, PX3 2.0L Y2NS 2.2L P4AT, 3.2L P5AT 4WD Manual Automatic (09/2011-06/2022) Does not fit Raptor, Raptor X models
Sub-Models Include XL, XLS, XL PLUS, XLT, WILDTRAK, SUPER CAB XL, SPORT, FX4, LIMITED - Mazda BT50 UP UR 3.2L P5AT 4WD Manual Automatic (11/2011-07/2020)
Sub-Models Include XT, GT, XTR, XT FREESTYLE CAB, XTR FREESTYLE CAB, BOSS
Sizing and Specifications
- Length: 609mm (Compressed) - 666mm (Extended)
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 29T
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Inner Joint Seal ID: 35.6mm
- Hub Nut Style: M24 x 1.5
- Telescopic Design: Centre Bar Housing Has an Extending Roller Spline
What's Included
- 1 x Telescopic CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
