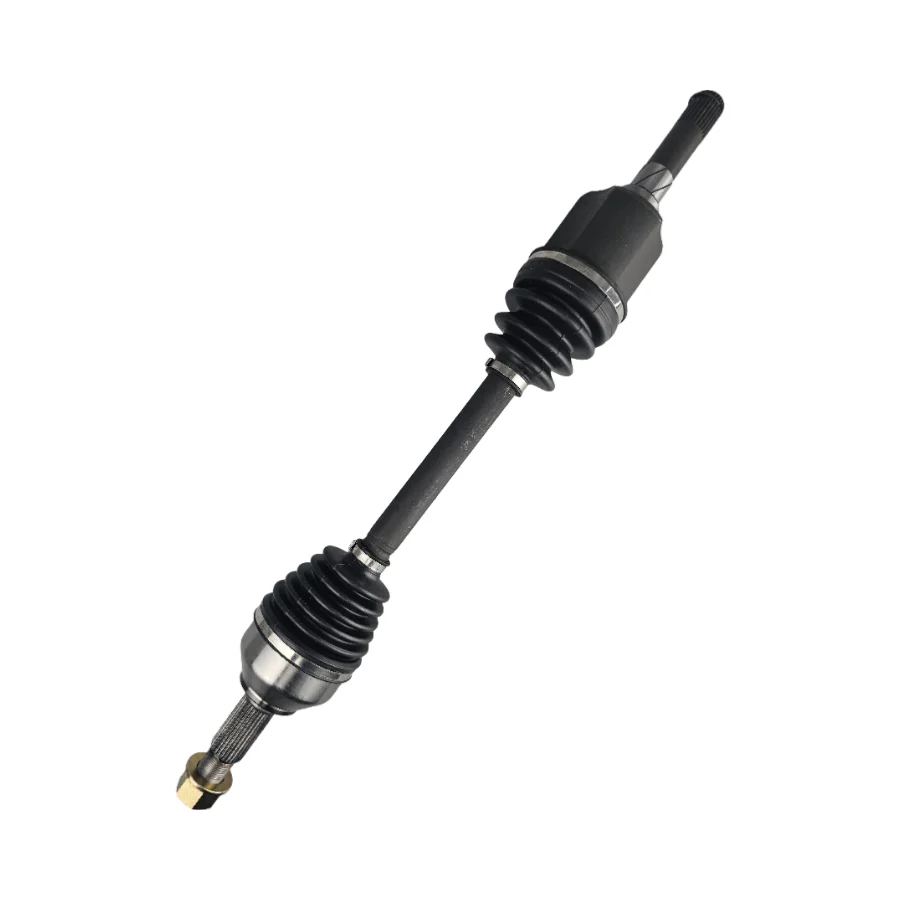

Front Left Drive Shaft for Dualis J10 KJ10 Qashqai FBAJ10 JBAJ10 X-Trail T31 CVT

CV Axle Drive Shaft - Left Hand Side CVT Transmission FWD AWD/4WD

Please Contact Us as the Dualis/Qashqai has many versions of CV shafts, please see chassis fitment notes

CVT Only, Inner Joint Spline Length 119.5mm from Dust Shield

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Dualis J10, Chassis: J10, KJ10 (Japan Built) / FBAJ10, JBAJ10 (Great Britain Built) 2.0L MR20DE FWD CVT (05/2007 - 01/2016) FWD Left, CVT Only, Inner Joint Spline Length 119.5mm from Dust Shield
  Includes Sub-models Ti, Ti-L, ST, 20G, 20S, Cross Rider

• Nissan Qashqai J10, Chassis: FBAJ10, JBAJ10 (Great Britain Built) 2.0L MR20DE FWD CVT (07/2009 - 01/2016) FWD Left, CVT Only, Inner Joint Spline Length 119.5mm from Dust Shield
  Includes Sub-models

• Nissan X-Trail T31 Chassis: T31, NT31 (4WD), TBAT31 (Japan Built) 2.0L MR20DE FWD CVT (08/2007 - 03/2015) Left, CVT Only
  Includes Sub-models 20S, 20ST, 20X, 20XT, 20XTT, Axis, Axis 4WD, Driving Gear 4WD, ST, ST Limited Edition, ST-L

Sizing and Specifications

• Length (Compressed): 692mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 27T

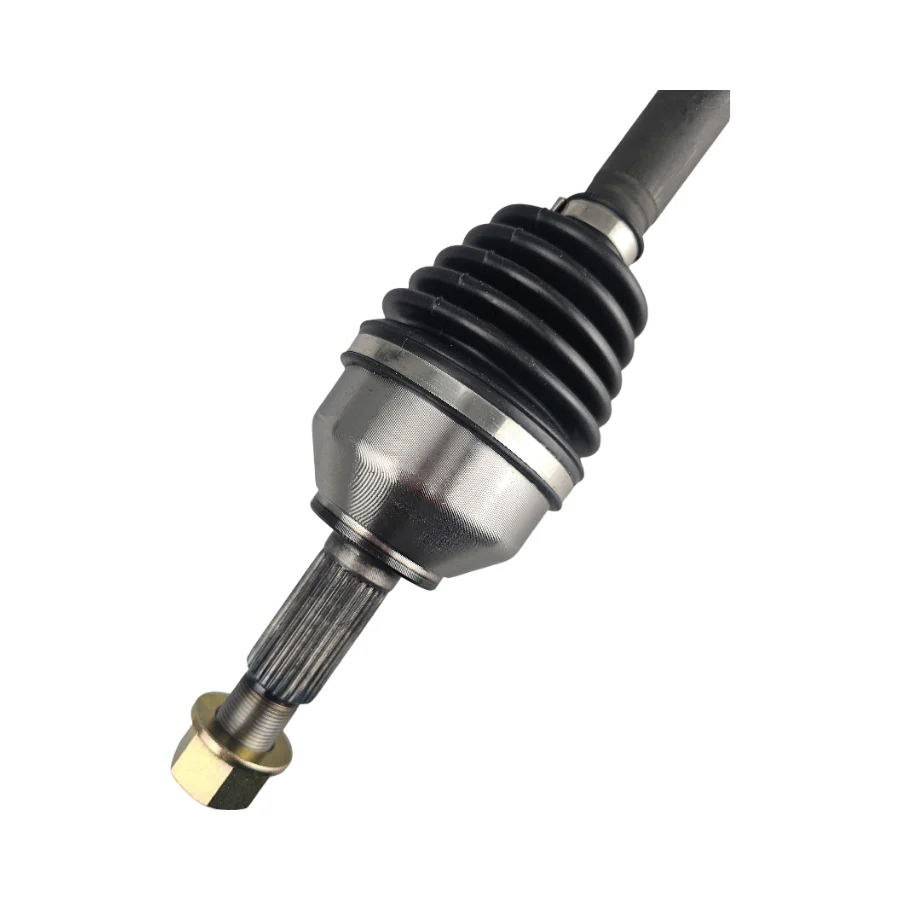

• Outboard Joint Type: Ball

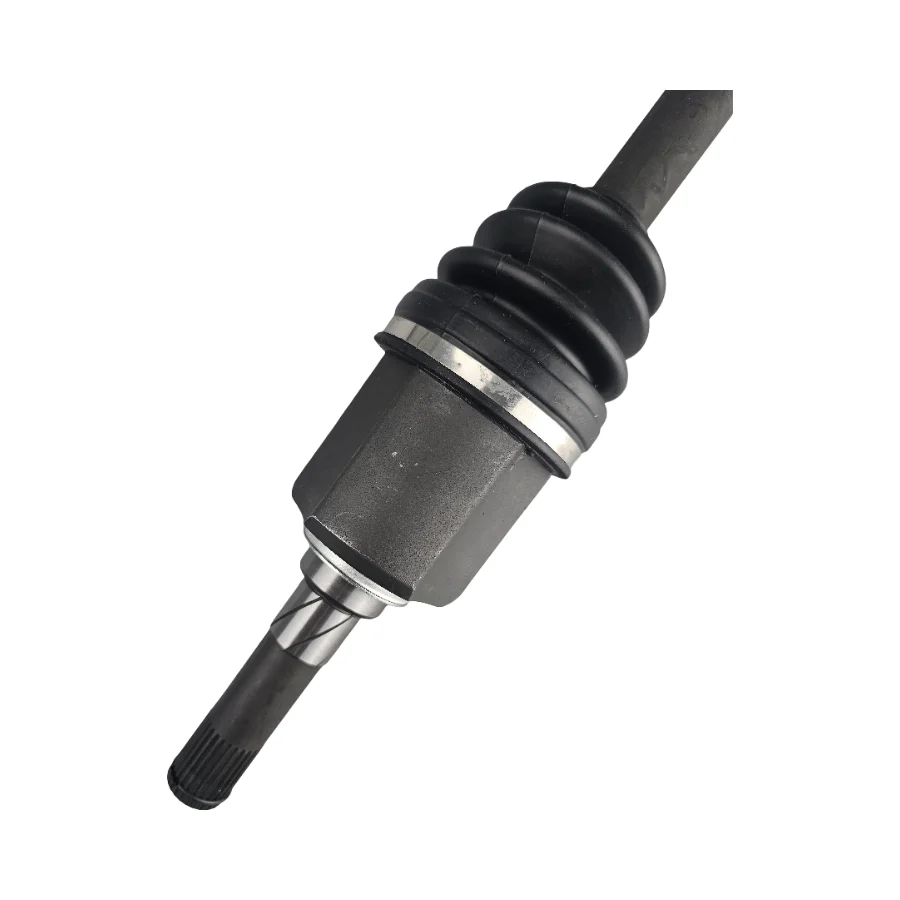

• Inboard Joint Type: Tripod
• Inner Joint Shaft Length: 119.5mm from Dust Shield
• Drive Shaft Seal - Inner ID: 40mm
• Hub Nut Style: M24 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
