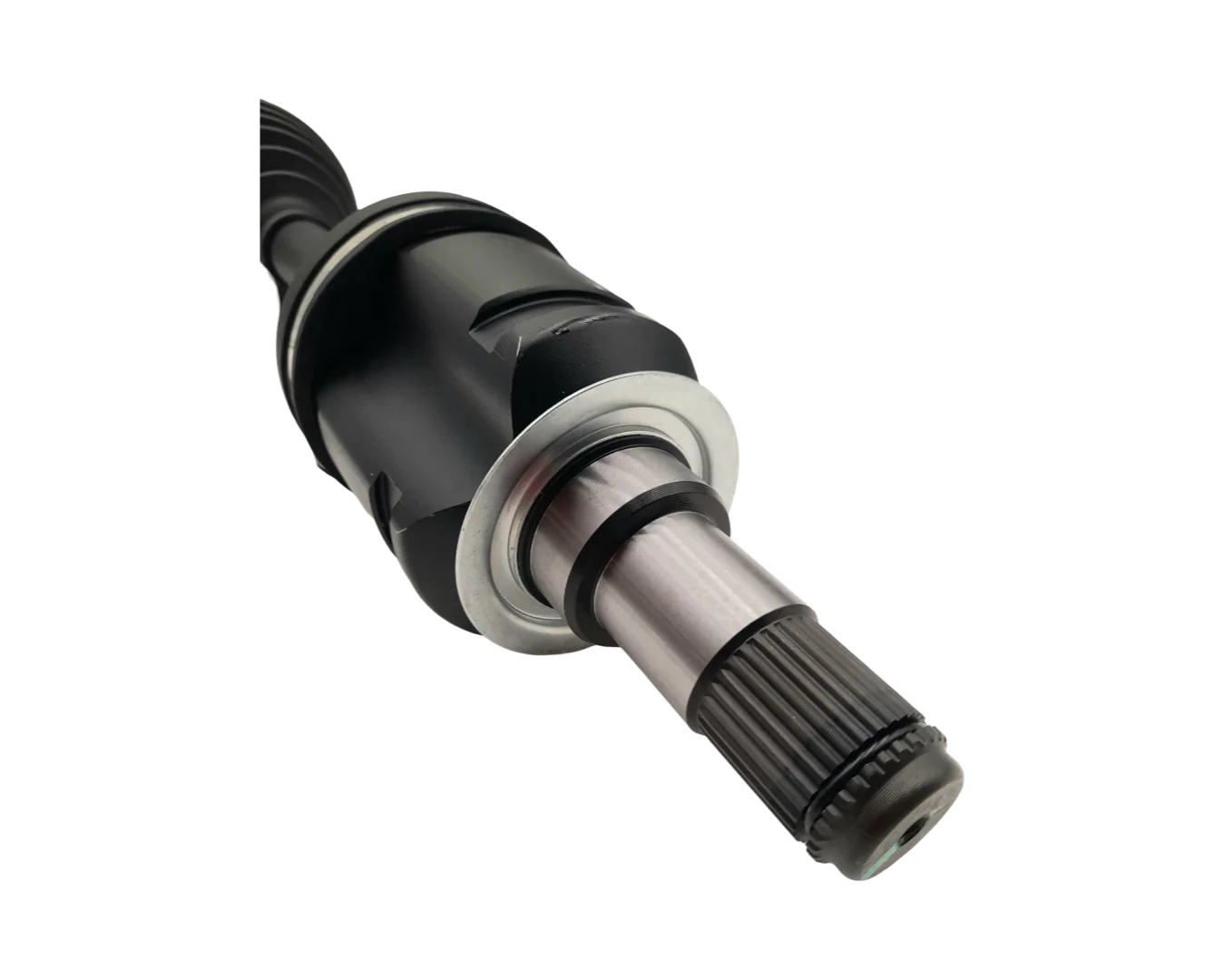

Front CV Drive Shaft For Toyota Hilux KUN26 GGN25 2005-2015 Raised Spring 50mm

Brand New Front Left or Right CV Drive Shaft

Raised Spring Up to 50mm-Without Diff Drop, For Pair please see CVA1001X2

If you do not have a raised spring, see part number CVA1000 or contact us for more info

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Toyota Hilux GGN25R 4.0L 1GRFE (03/2005-09/2015) Raised Spring Up to 50mm-Without Diff Drop
  Sub-Models Include SR, SR5, SR5 EXTRA CAB
• Toyota Hilux KUN26R 3.0L 1KDFTV (03/2005-09/2015) Raised Spring Up to 50mm-Without Diff Drop
  Sub-Models Include SR, SR5, SR EXTRA CAB, SR5 EXTRA CAB WORKMATE
• TRD Hilux GGN25R 4.0L 1GRFE (2005-2007) Raised Spring Up to 50mm-Without Diff Drop
  Sub-Models Include S, SL


⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 644.5 mm
• Spline Count - Outer/Wheel Side: 30
• Spline Count - Inner/Diff Side: 30
• Drive Shaft Seal (Inner) ID: 47 mm
• Drive Shaft Seal (Outer): 72.5 mm
• Hub Nut: M28 x 1.5


What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
