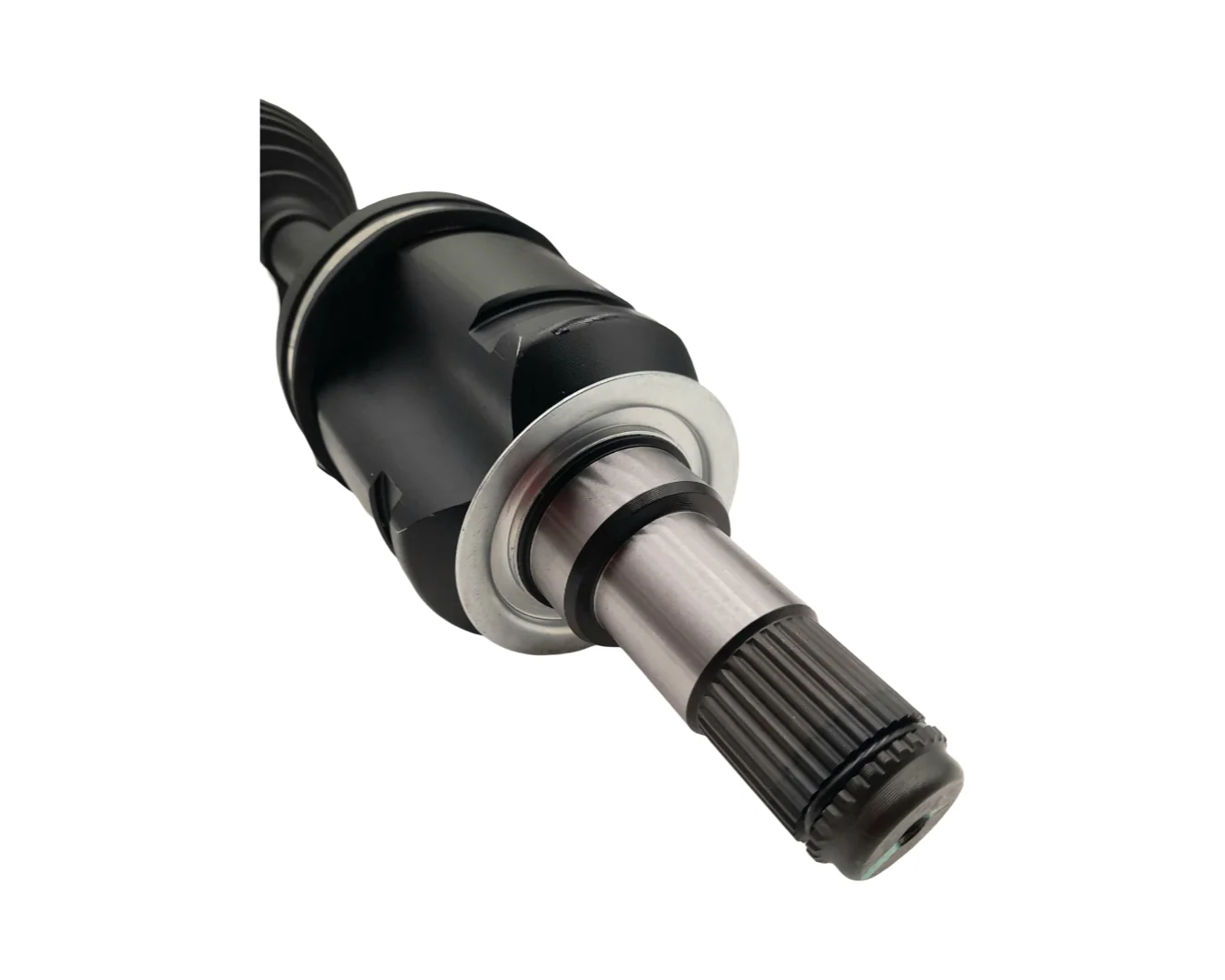

CV Joint Drive Shaft For Toyota Hilux KUN26R GGN25R KZN185R 2005-2015 Std Height

Brand New CV Drive Shaft for Left or Right Side

***Standard Height, For Pair Kit please see CVA1000X2***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Toyota Hilux GGN25R 4.0L 1GRFE (03/2005-09/2015)
  Sub-Models Include SR, SR5, SR5 EXTRACAB
• Toyota Hilux KUN26R 3.0L 1KDFTV (03/2005-09/2015)
  Sub-Models Include SR, SR5, SR EXTRA CAB, SR5 EXTRA CAB, WORKMATE
• Toyota Hilux KZN185R 3.0L 1KZTE (12/1995-06/2000)
  Sub-Models Include SURF
• TRD Hilux GGN25R 4.0L 1GRFE (2005-2007)
  Sub-Models Include S, SL

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• Length (Compressed): 629.5 mm
• Spline Count - Outer/Wheel Side: 30
• Spline Count - Inner/Diff Side: 30
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M28 x 1.5

What's Included

• 1 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
