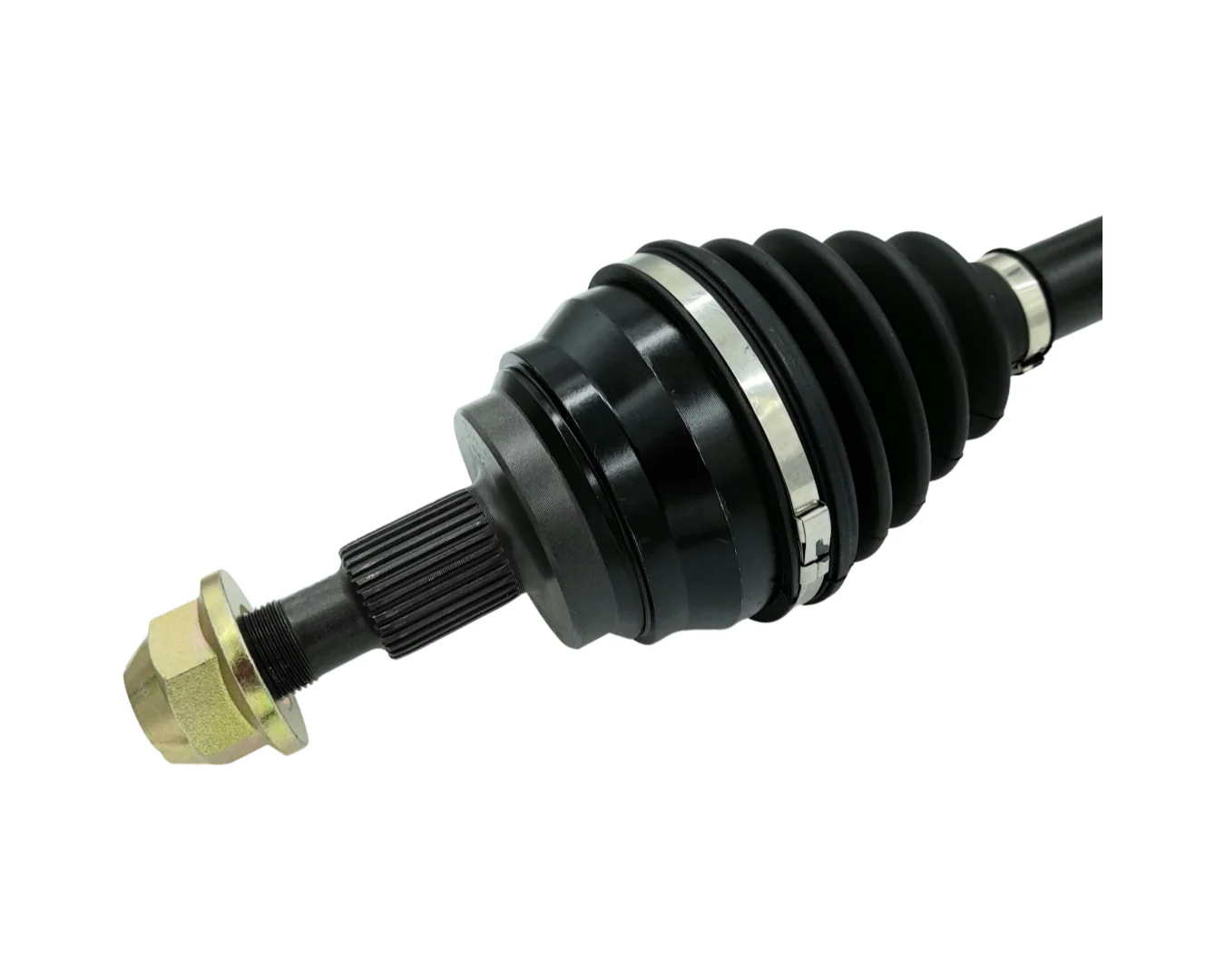

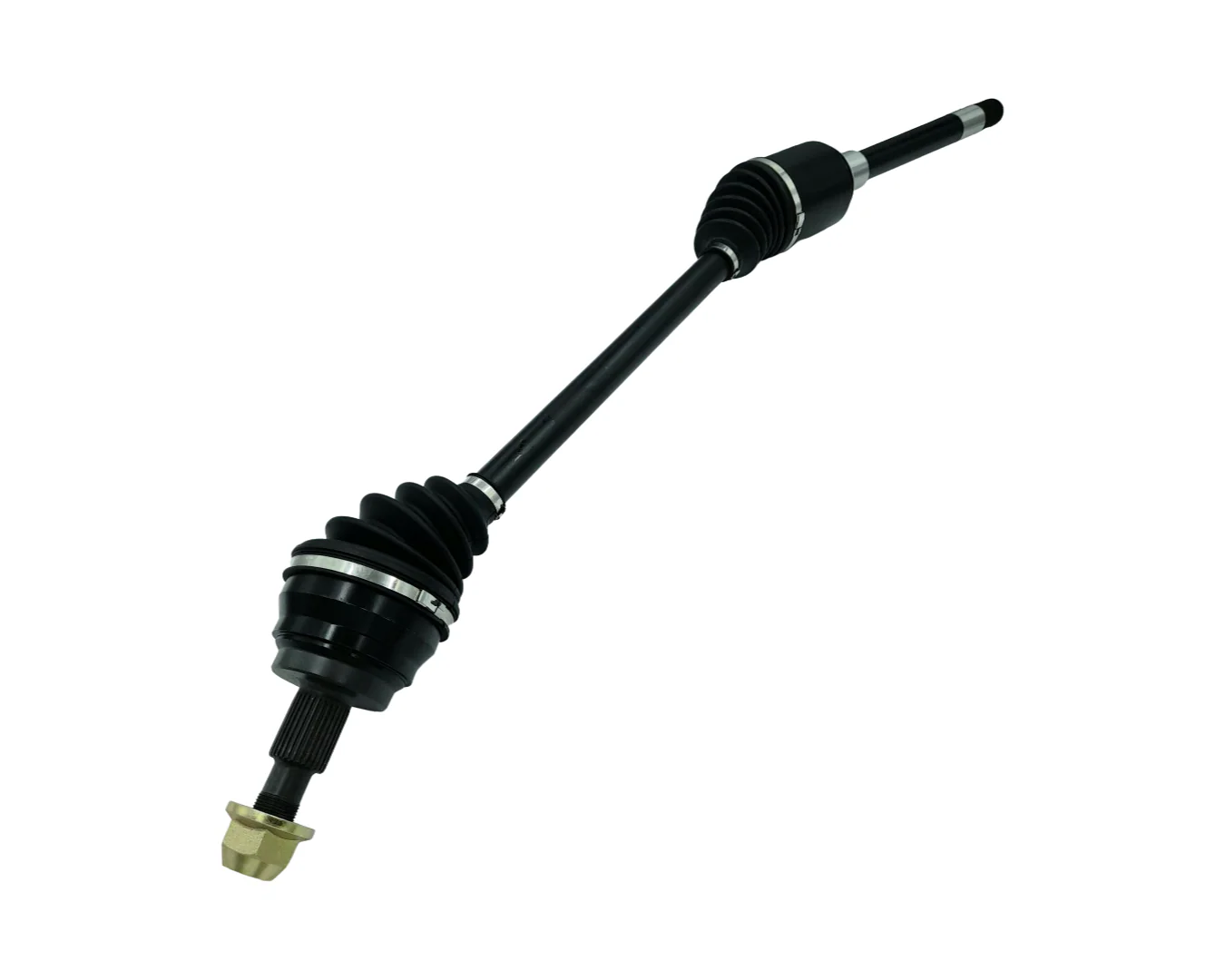

CV Drive Shaft for Mercedes GL ML 3.0 3.5 4.0 5.0 5.5 6.2 2005~2013 Diesel Petrol

One Brand New CV Axle Drive Shaft 4WD Auto

***Note: Please Check the Vehicle for the position of the Driveshaft***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

RIGHT

• Mercedes Benz ML320 CDI W164 3.0L OM642.940 4WD Auto (07/2005 - 07/2009) Right, Long Shaft
  Sub-Models Include EDITION 10, LUXURY
• Mercedes Benz ML350 W164 3.5L M272.967 4WD Auto (02/2005 - 12/2011) Right, Long Shaft
  Sub-Models Include EDITION 10, LUXURY, SPORTS, SPORTS LUXURY

• Mercedes Benz ML350 CDI W164 3.0L OM642.940, OM642.820 4WD Auto (07/2009 - 12/2011) Right, Long Shaft
  Sub-Models Include LUXURY, SPORTS, SPORTS LUXURY

• Mercedes Benz ML300 CDI W164 3.0L OM642.940, OM642.820 4WD Auto (07/2009 - 12/2011) Right, Long Shaft
  Sub-Models Include GRAND EDITION, LUXURY, SPORTS, SPORTS LUXURY

• Mercedes Benz ML280 CDI W164 3.0L OM642.940 4WD Auto (07/2005 - 07/2009) Right, Long Shaft
  Sub-Models Include LUXURY

• Mercedes Benz ML63 AMG W164 6.2L M156.980 (01/2006 - 12/2011) Right, Long Shaft
• Mercedes Benz ML500 W164 5.0L M113.964 4WD Auto (07/2005 - 12/2011)  Right, Long Shaft
  Sub-Models Include LUXURY
• Mercedes Benz ML500 W164 5.5L M273.963 4WD Auto (12/2007 - 12/2011) Right, Long Shaft
  Sub-Models Include LUXURY, SPORTS LUXURY



LEFT

• Mercedes Benz X164 5.5L M273.963 4WD Auto (11/2006 - 04/2013) LEFT
  Sub-Models Include LUXURY

• Mercedes Benz GL350 CDI X164 3.0L OM642.822 (01/2010 - 04/2013) LEFT
  Sub-Models Include LUXURY

• Mercedes Benz GL450 CDI X164 4.0L OM629.912 4WD Auto (02/2011 - 04/2013) LEFT

• Mercedes Benz GL320 CDI X164 3.0L OM642.940 4WD Auto (11/2006 - 01/2020) LEFT
• Mercedes Benz ML420 CDI W164 4.0L OM629.912 4WD Auto (07/2005 - 07/2009) LEFT


Sizing and Specifications

• Length (Compressed): 1001mm
• Spline Count - Outer/Wheel Side: 30
• Spline Count - Inner/Diff Side: 37
• Inner/Diff Side Shaft Length From Dust Shield: 278mm
• Hub Nut Style - Outer/Wheel Side : M24 x 1.5




What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
