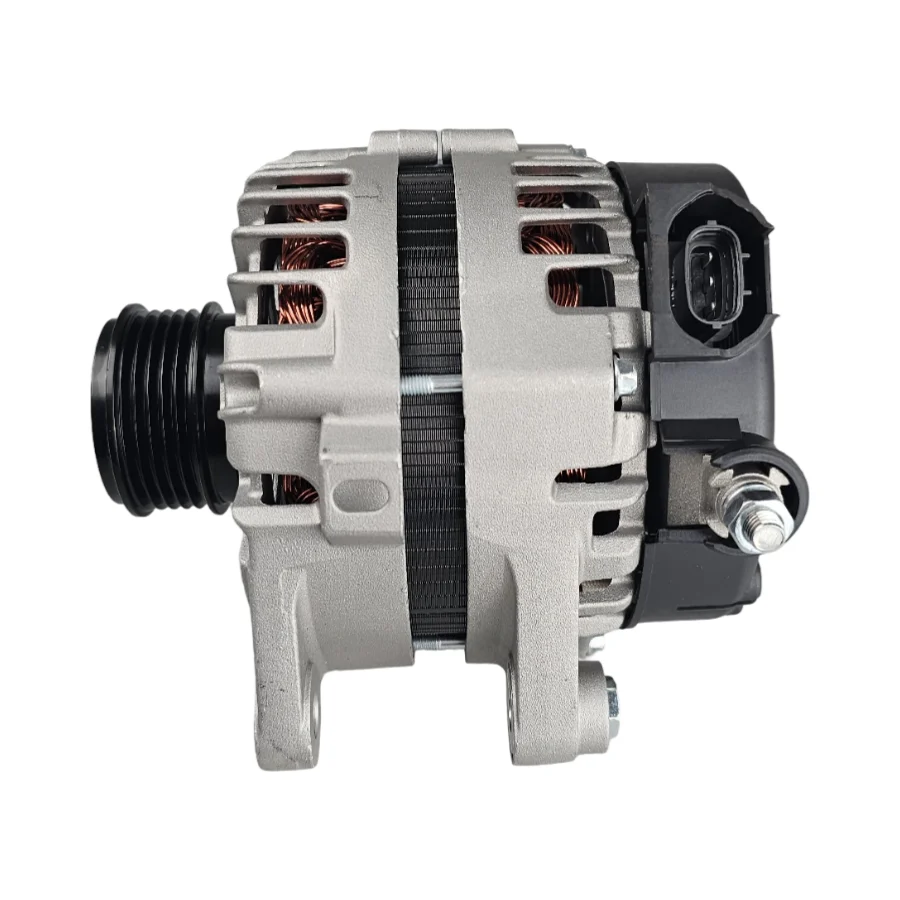

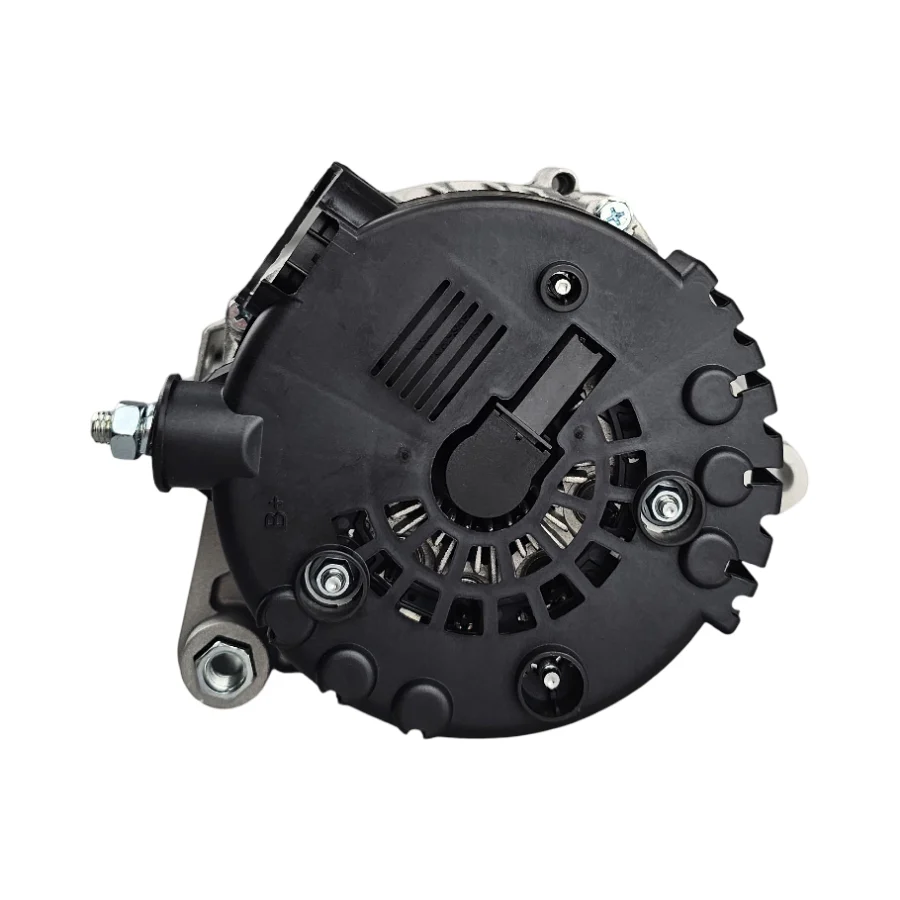

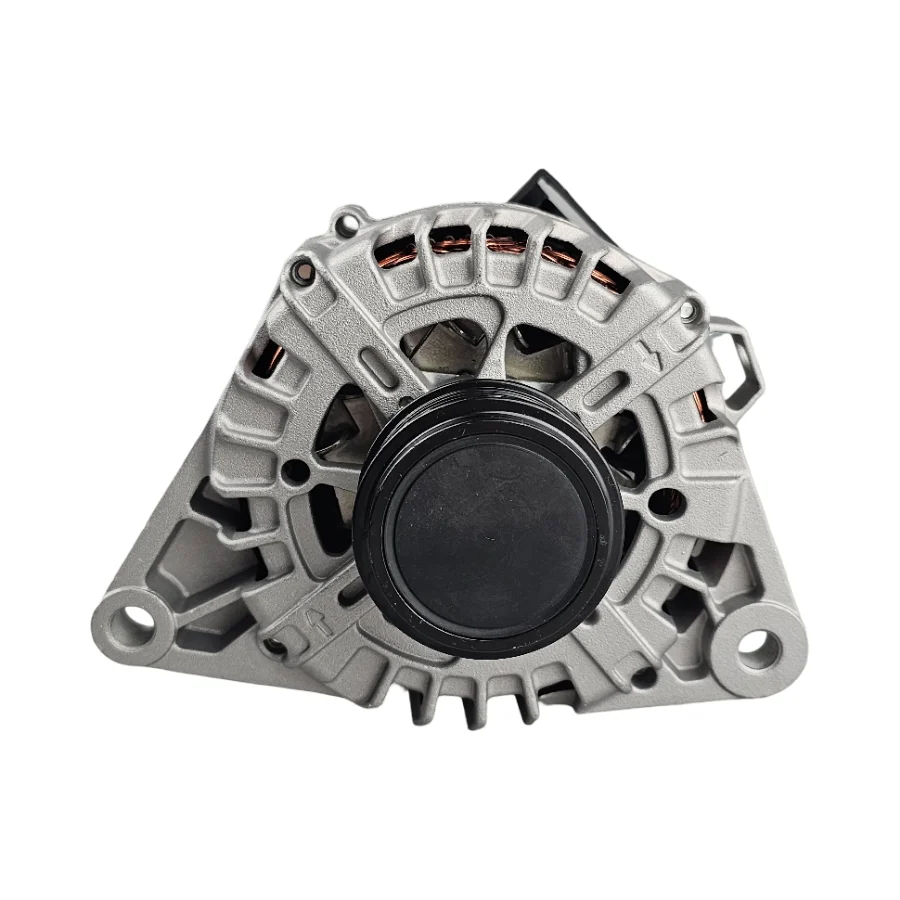

Alternator for Hyundai i30 i30cw GD GDE FD 1.6L D4FB, i40 VF 1.7L D4FD 3-Pin

One Brand New Alternator

3-Pin Regulator Plug, Please Check OE Part Number - For 2-Pin plug please see AAO-16979

We are proud to offer top-tier alternators that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Hyundai i30 & i30cw FD GD GDE 1.6L D4FB Turbo I/C FWD (09/2011 - 03/2017) 3-Pin Plug
  Includes Sub-models SLX 1.6 CRDi, Active, Premium, Elite, Trophy, Tourer 1.6 CRDi, Tourer Active 1.6 CRDi, Tourer Elite 1.6 CRDi, Active X, Active X 1.6 CRDi, SX 1.6 CRDi
• Hyundai i40 VF 1.7L D4FD Turbo I/C FWD (10/2011 - 04/2019) 3-Pin Plug
  Includes Sub-models Active, Elite, Premium, Active Tourer, Premium Tourer
• Kia Rio UB DM514 1.4L D4FC Turbo I/C FWD (2012 - 03/2017) 3-Pin Plug
  Includes Sub-models LX



Specifications and Sizing

• Voltage: 12V

• Amps: 120A
• Plug: RP22 3-Pin (C L FR)
• Pulley: 5PV
• Pulley Diameter: 61mm
• Adjustment Hole: 11mm
• Pivot Hole: 10/ M8 x 1.25
• Adjustment Hole to Pivot Hole: 163mm
• Inside Ft to Ft: 50mm



What's Included

• 1 x Alternator

All our parts come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 100 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
