2X Front Drive Shaft for Toyota Corolla MZEA12, Toyota Prius ZVW30 ZVW35 ZVW50, Prius Alpha ZVW40 ZVW41, Prius V ZVW40

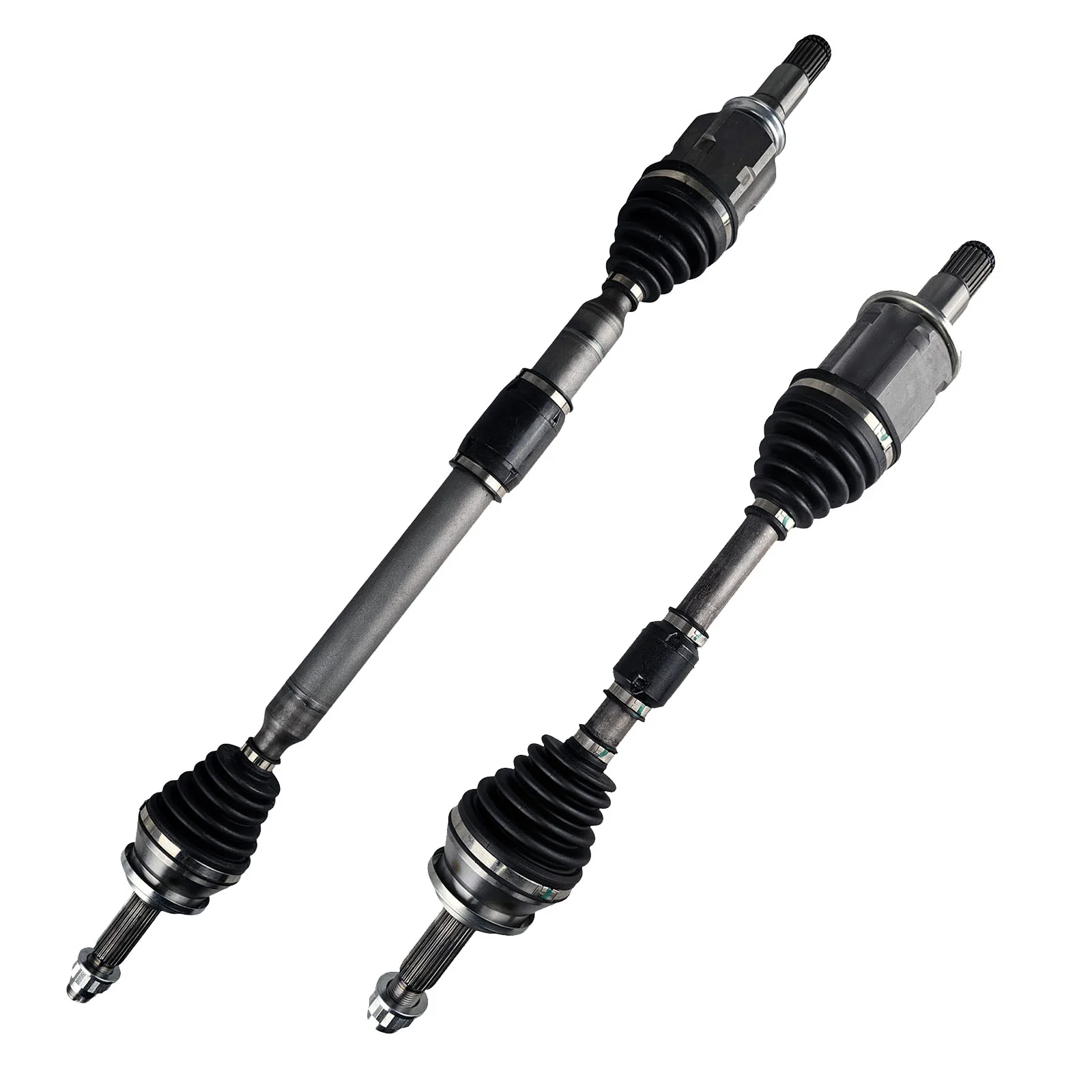

One Brand New Front CV Drive Shaft

***PAIR Front, Please Check OE***

***FWD CVT Only***

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota Corolla MZEA12 (08/2018~2026) 2.0L Petrol M20AFKS CVT Only, For Manual Models Please See CVA1658-CVA1659
• Toyota Prius ZVW30, ZVW35, ZVW50 (07/2009~05/2022) 1.8L Petrol-HEV 2ZRFXE
• Toyota Prius Alpha ZVW40, ZVW41 (04/2011~03/2021) 1.8L Petrol-HEV 2ZRFXE
• Toyota Prius V ZVW40 (05/2012~12/2021) 1.8L Petrol-HEV 2ZRFXE

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 651 mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 24
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5

Right CV Shaft

• Length (Compressed): 949 mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 24
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5

What's Included

• 2 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
