2X Front Drive Shaft for Toyota Corolla MZEA12 2018-Onwards FWD Manual

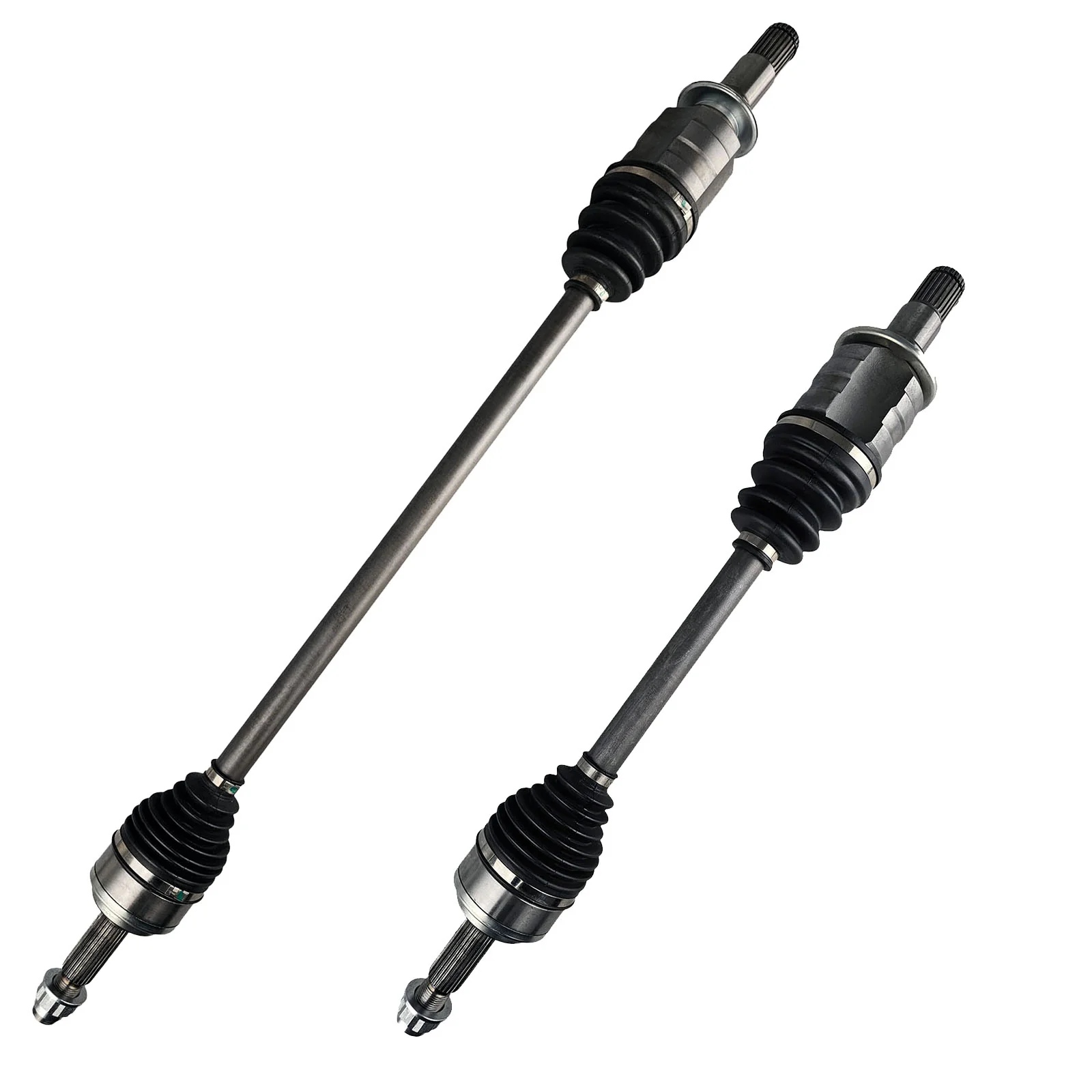

One Brand New PAIR Front CV Drive Shaft

***PAIR Kit, Please Check OE, Manual Only***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Toyota Corolla MZEA12 (08/2018~2026) 2.0L Petrol M20AFKS - Manual Only, For CVT Models Please See CVA1656-CVA1657

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 643 mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 24
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5

Right CV Shaft

• Length (Compressed): 943 mm
• Spline Count - Outer/Wheel Side: 26
• Spline Count - Inner/Diff Side: 24
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Hub Nut: M22 x 1.5

What's Included

• 2 x CV Shaft

All components include a 12 month/20,000km warranty and support from our specialist team.
