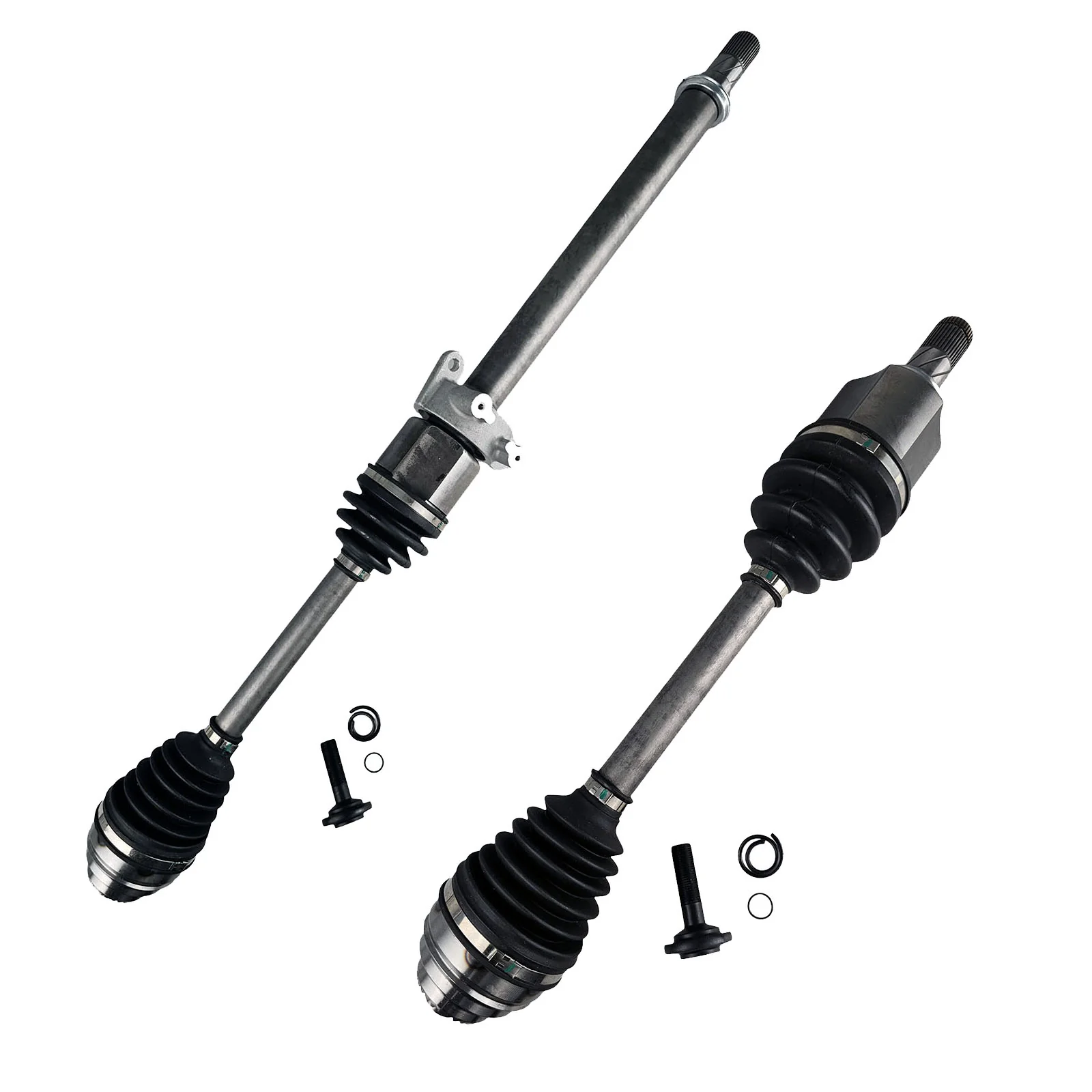

2X Front CV Drive Shaft for Mini Cooper S Clubman F54 2.0L 2015-2024 Manual

Brand New Right Front CV Drive Shaft

***PAIR Kit, 37 Tooth Diff Side Spline - For Manual Models Only***

Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.

Vehicle Fitment

• Mini Cooper S Clubman F54 (11/2015~06/2019) 2.0L Petrol B48A20A - Manual Only
• Mini Cooper S Clubman F54 (07/2019~03/2024) 2.0L Petrol B48A20F - Manual Only

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 546mm
• Spline Count - Outer/Wheel Side: 31T, OD: 56mm
• Spline Count - Inner/Diff Side: 37T
• Outboard Joint Type: Ball
• Inboard Joint Type: Joint
• Drive Shaft Seal - Inner ID: 35mm
• Hub Bolt Style: M16 x 1.5

Right CV Shaft

• Length (Compressed): 931mm
• Spline Count - Outer/Wheel Side: 31 Teeth, OD: 56mm
• Spline Count - Inner/Diff Side: 37 Teeth
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Drive Shaft Seal - Inner ID: 35mm, Located Before the Tin Dust Shield
• Ext Shaft Length Inside of Dust Cover to Shaft End: 70mm
• Extension Shaft Length From Outside of Bearing: 450mm
• Hub Bolt Style: M16 x 1.5

What's Included

• 2 x CV Shafts

All components include a 12 month/20,000km warranty and support from our specialist team.
