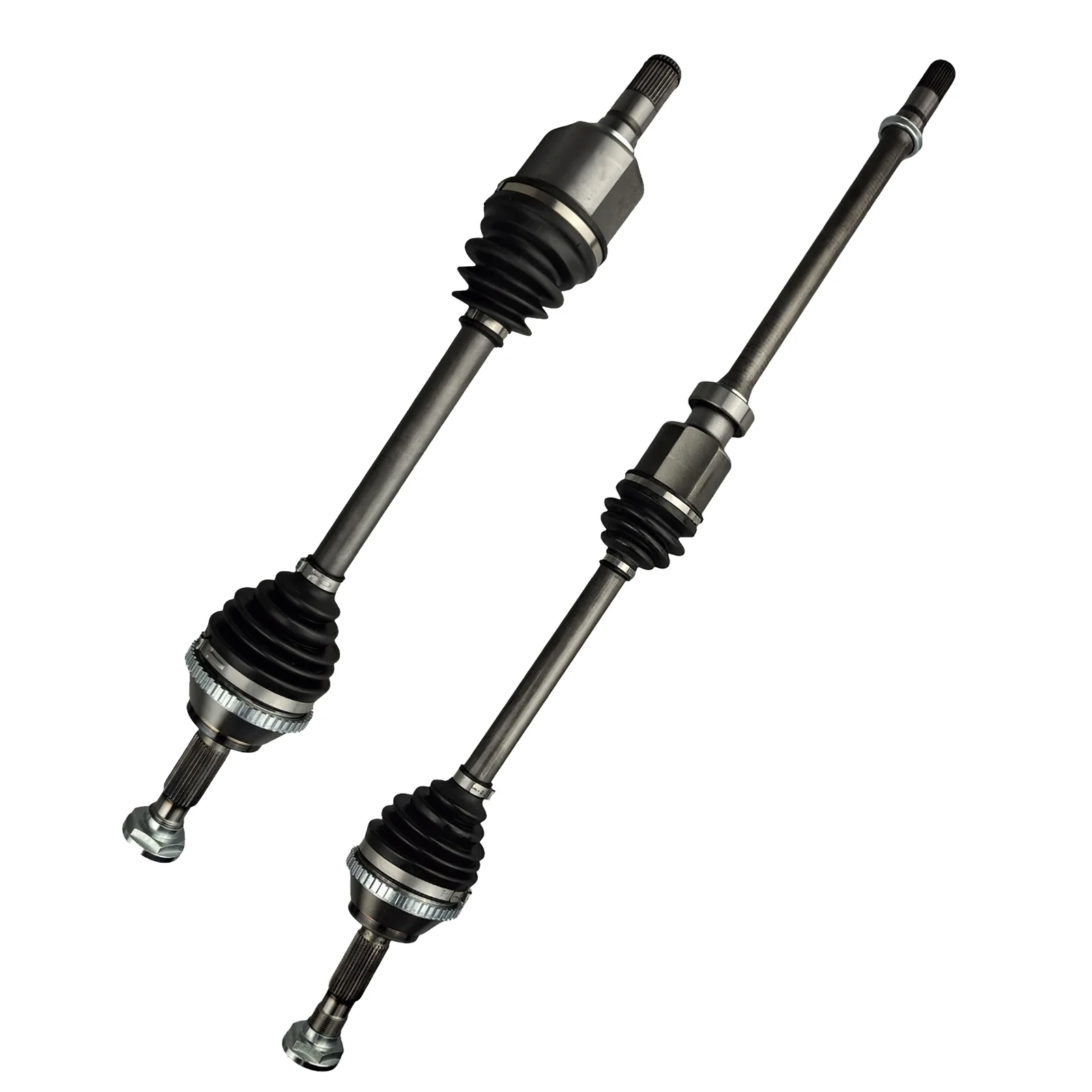

2X Front CV Drive Shaft for LDV V80 K1 2.5L FWD 2013-Onwards Manual 5-Speed

CV Axle Drive Shaft PAIR Left and Right Hand Side Manual FWD

PAIR Kit, Manual 5-Speed Transmission Only - Check Extension Shaft Length and Bearing Size/Position of Right CV Drive Shaft

For AMT Models Please See CVA1619-CVA1620

Vehicle Fitment

• LDV V80 K1 2.5L SC25R136Q4 Turbo I/C FWD Manual (01/2013 - Onwards)  Manual Only, Check Extension Shaft Length and Bearing Size/Position
  Includes Sub-Models SWB, SWB Mid, LWB, LWB High, LWB Mid

Sizing and Specifications

Left CV Shaft

•  Length (Compressed): 724mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 30T

Right CV Shaft

•  Length (Compressed): 1100mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 30T
• Extension Shaft Length From Outside of Bearing: 437mm
• Extension Shaft Bearing OD: 68mm
• Extension Shaft Bearing Width: 20mm

 

What's Included

• 2 x CV Shaft (Left and Right)

 Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
