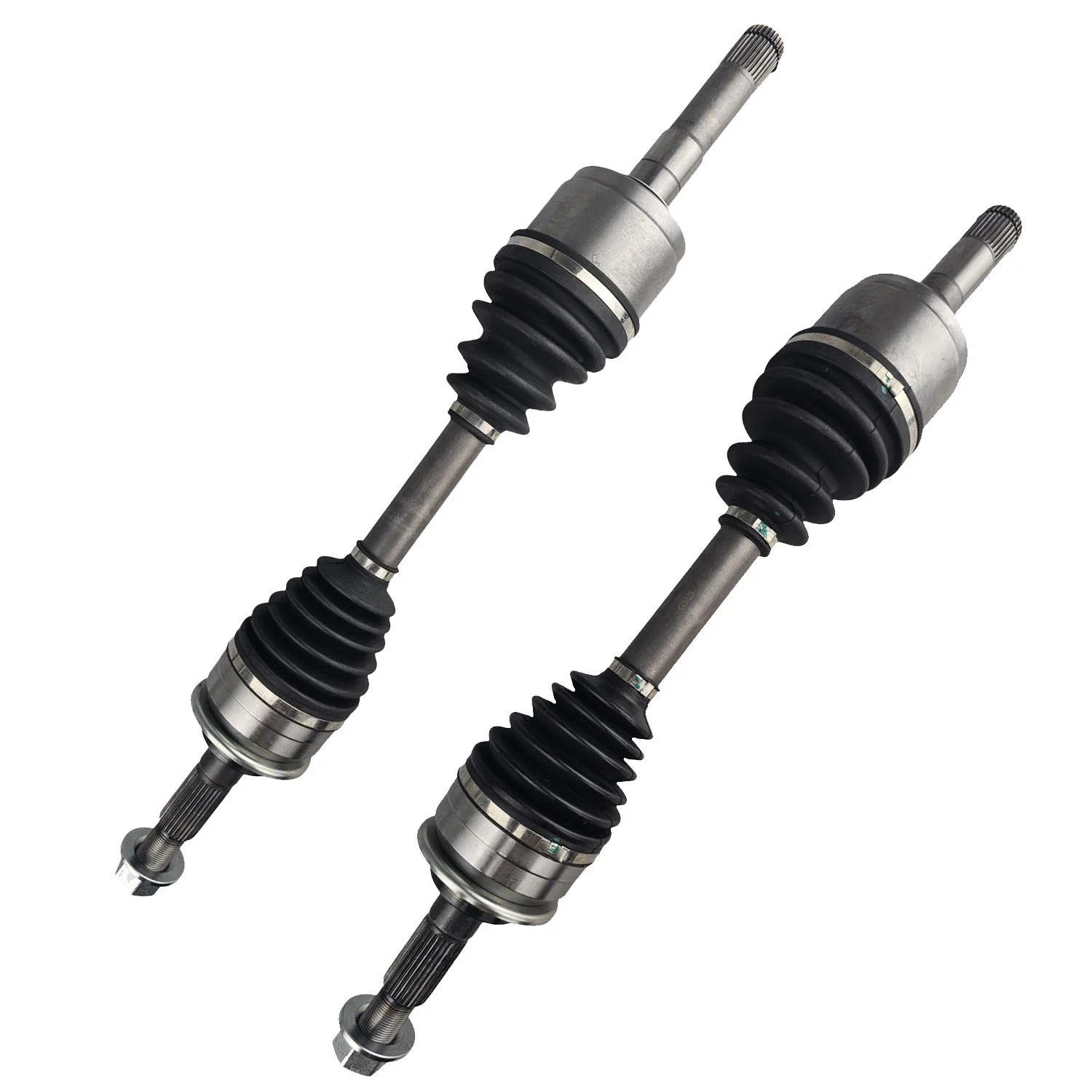

2X CV Drive Shafts for Ford Everest UB Ranger PY T6.2, Volkswagen Amarok NF T1 - Standard Height

One Brand New Left & Right CV Drive Shaft

***PAIR Front, Standard Height, Automatic Only***

Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Ford Everest UB RXXMA (06/2022~2026) 2.0L Diesel YNWS, YNNS, YNTS
• Ford Everest UB RXXMA (06/2022~2026) 3.0L Diesel BFWS
• Ford Ranger PY T6.2 MEF9, MFF6, MAF6, MIF9 (06/2022~2026) 2.0L Diesel P02S, YN2S 4WD/AWD
• Ford Ranger XL Super Cab PY T6.2 MIF6, MFF6, MFF9 (06/2022~2026) 2.0L Diesel YN2S, P02S 4WD/AWD
• Ford Ranger XLT, Sport, Wildtrak, Platinum PY T6.2 MFF7, MEF7 (06/2022~2026) 3.0L Diesel BF2S 4WD/AWD
• Volkswagen Amarok NF T1 TDI405 Core, TDI500 4Motion (12/2022~2026) 2.0L Diesel DXKA, DXKB 4WD/AWD
• Volkswagen Amarok NF T1 TSI452 Aventura 4Motion (12/2022~2026) 2.3L Petrol DXVA 4WD/AWD
• Volkswagen Amarok NF T1 TDI600 4Motion (12/2022~2026) 3.0L Diesel DXWA 4WD/AWD

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

Left CV Shaft

• Length (Compressed): 652 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 29
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball
• Drive Shaft Seal (Inner) ID: 35.5 mm
• Hub Nut: M24x1.5

Right CV Shaft

• Length (Compressed): 691 mm
• Spline Count - Outer/Wheel Side: 28
• Spline Count - Inner/Diff Side: 29
• Inboard Joint Type: Ball
• Outboard Joint Type: Ball
• Drive Shaft Seal (Inner) ID: 35.5 mm
• Hub Nut: M24x1.5

What's Included

• 2 x CV Shaft

Backed by our 12 month/20,000km warranty and technical support.
