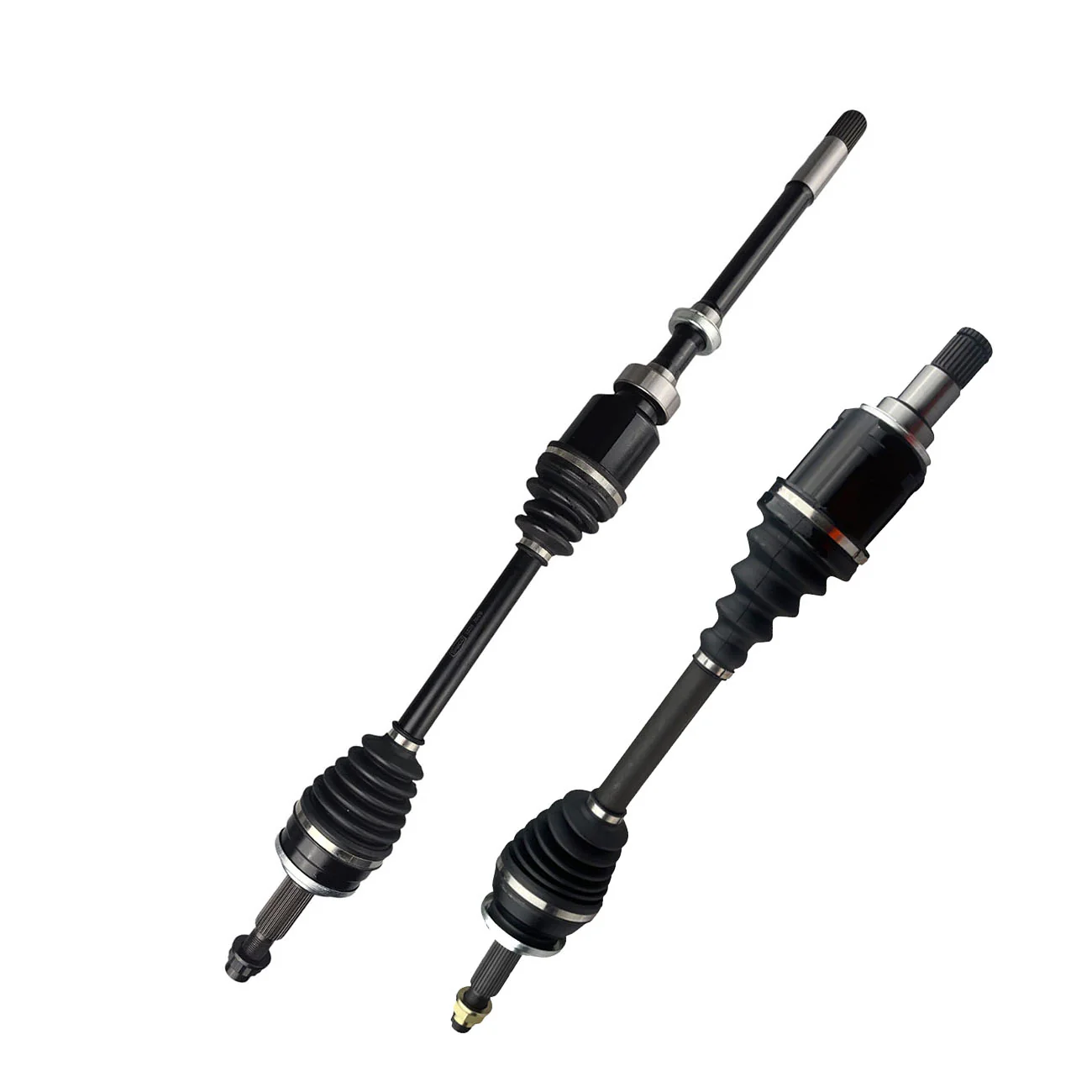

2 x Front CV Axle Drive Shafts For Toyota RAV4 ALA49 ASA44 - 67mm Inner Stub

One Brand New Pair CV Axle Drive Shafts Manual 4WD FWD

***Note: The Left Drive Shaft has a Inner Stub Length 67mm, if 76mm required check CVA1535-CVA1326 or contact the Allied Team with the vehicles REGO / VIN***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Toyota RAV4 ALA49 2.2L 2ADFTV AWD MN AT (02/2013 - 11/2015) Check inner Stub Length 67mm
  Sub-Models Include GXL, CRUISER, GX
• Toyota RAV4 ASA44 2.5L 2ARFE AWD MN AT (02/2013 - 02/2019)
  Sub-Models Include CRUISER, GXL, GX



Sizing and Specifications

Left

• Length (Compressed): 655mm
• Spline Count - Outer/Wheel Side: 30T
• Spline Count - Inner/Diff Side: 24T

Right

• Length (Compressed):  993mm
• Spline Count - Outer/Wheel Side:  30T
• Spline Count - Inner/Diff Side: 24T

What's Included

• 2 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
